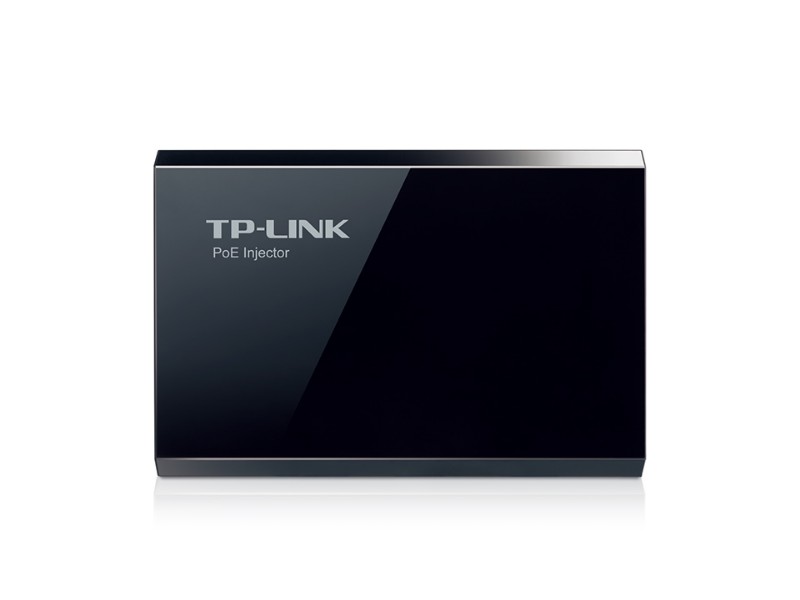

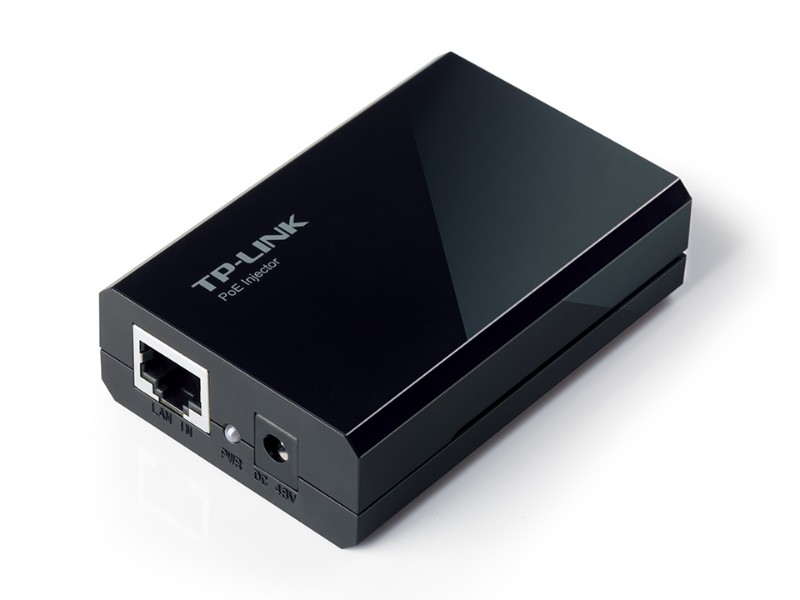

TP-Link TL-POE150S PoE Injector Adapter

TP-Link TL-POE150S poe injector adapter. This Power Over Ethernet Injector Adapter is a high performance device that fully complies with IEEE 802.3af standard and is compatible with all IEEE 802.3af PoE compliant powered devices or PoE Receiver Adapters, such as TP-LINK's TL-POE10R, or other similar products, upgrading your network system even at those places where there are no power line or outlet. You can fix this TL-POE150S PoE Injector Adapter wherever you wish to fix devices such as AP, IP Camera or IP Phone, etc. This poe injector auto-determine the necessary power requirements and carries data and power over in the same cable up to 100 meters. PoE Splitter. IEEE 802.3af compliant. Data and power carried over the same cable up to 100 meters. Plastic case. pocket size. Auto-determine the necessary power requirements.

• Mfr Part Number: TL-POE150S
• Brand: TP-Link
• IEEE 802.3af compliant
• Delivers power up to 100 meters
• Auto-determine the necessary power requirements
• Plug-and-Play, requires no configuration
• External power adapter supply
• Compatible With IEEE 802.3af Compliant PDs
• Delivers Power Up To 100 Meters
• Auto-Determine The Necessary Power Requirements

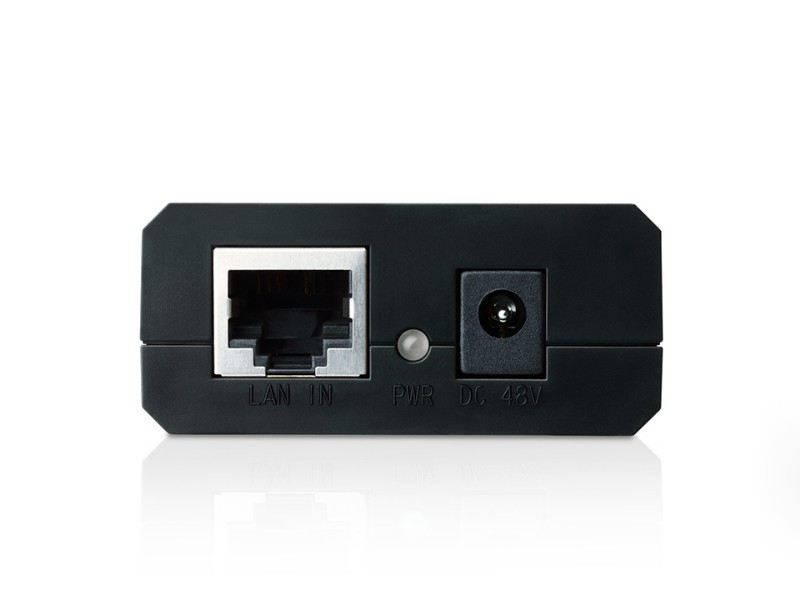

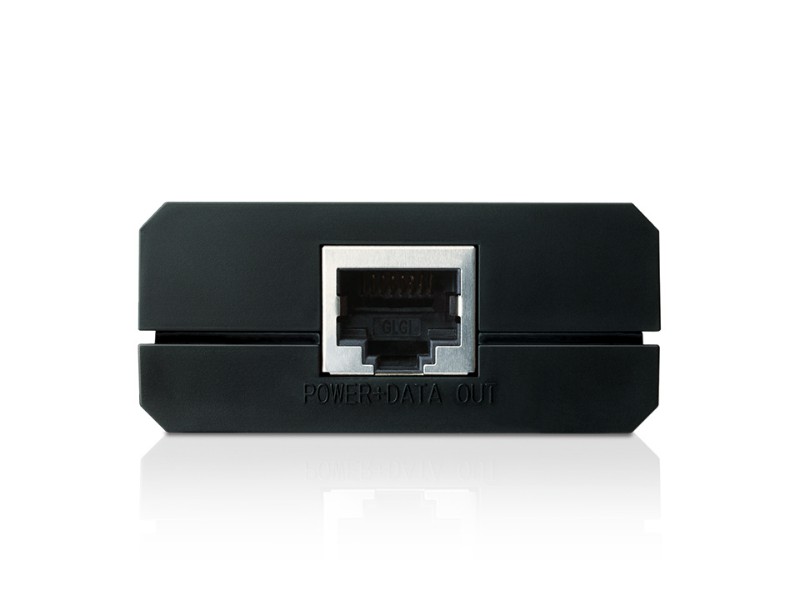

• Interface: 1 10/100 RJ45 Ports; AUTO Negotiation/AUTO MDI/MDIX
• POE Ports (RJ45): 1
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• Power LED Indicator
• Dimensions (WxDxH): 3.2x2.0x0.9 in.(81x52x24 mm)
• Power Output: 15.4W (Max. 48VDC)
• Safety and Emission: FCC, CE
• Operating Temperature: 0?C~40?C (32?F~104?F)
• Storage Temperature: -40?C~70?C (-40?F~158?F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• TL-PoE150S
• PoE Injector
• Black

Manufacturer：TP-Link
MPN：TL-PoE150S
Type：PoE Injector
Color：Black
Specifications：Interface:
2 x 10/100/1000Mbps RJ45 Port, AUTO Negotiation/AUTO MDI/MDIX
1 x 48VDC POWER INPUT PORT

Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Basic Function:
Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements

Dimensions: 3.2" x 2.1" x 0.9"

LED Indicator: PWR

Power Supply: 15.4W (Max. 48VDC)

Certification: FCC, CE, RoHS

System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -40°C - 70°C (-40°F - 158°F)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
Features：IEEE 802.3af compliant

Delivers power up to 100 meters

Auto-determine the necessary power requirements

Gigabit speed support

Plug-and-Play, requires no configuration

External power adapter supply
