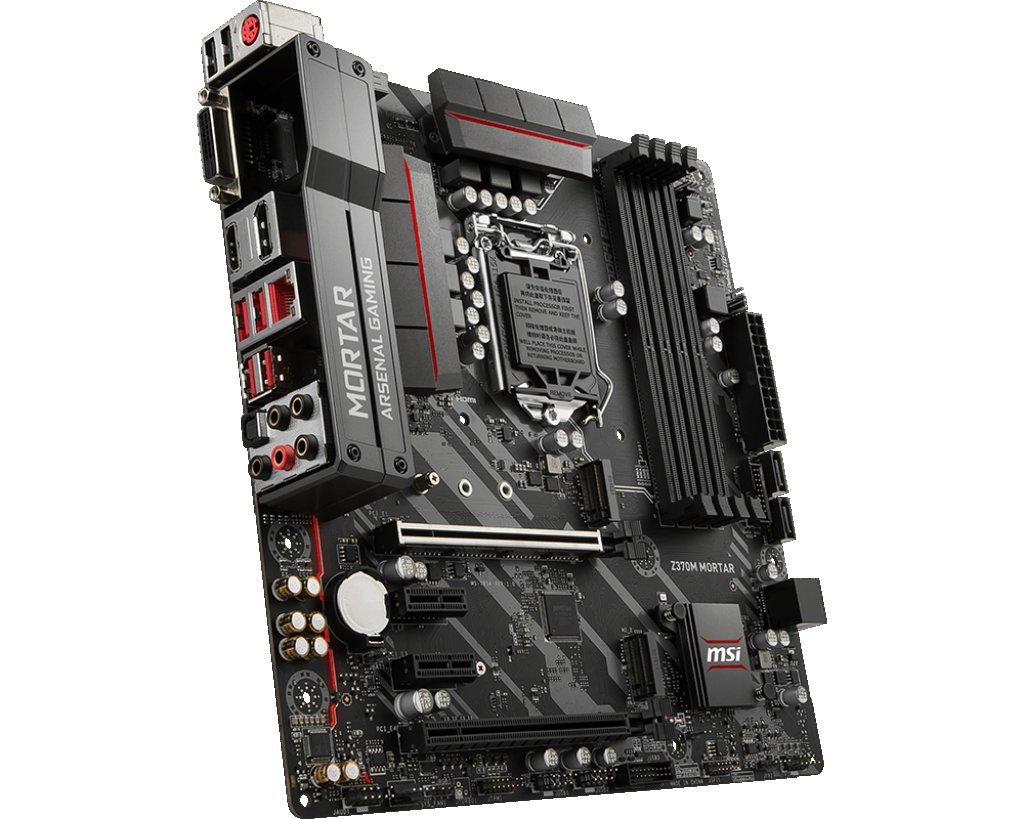

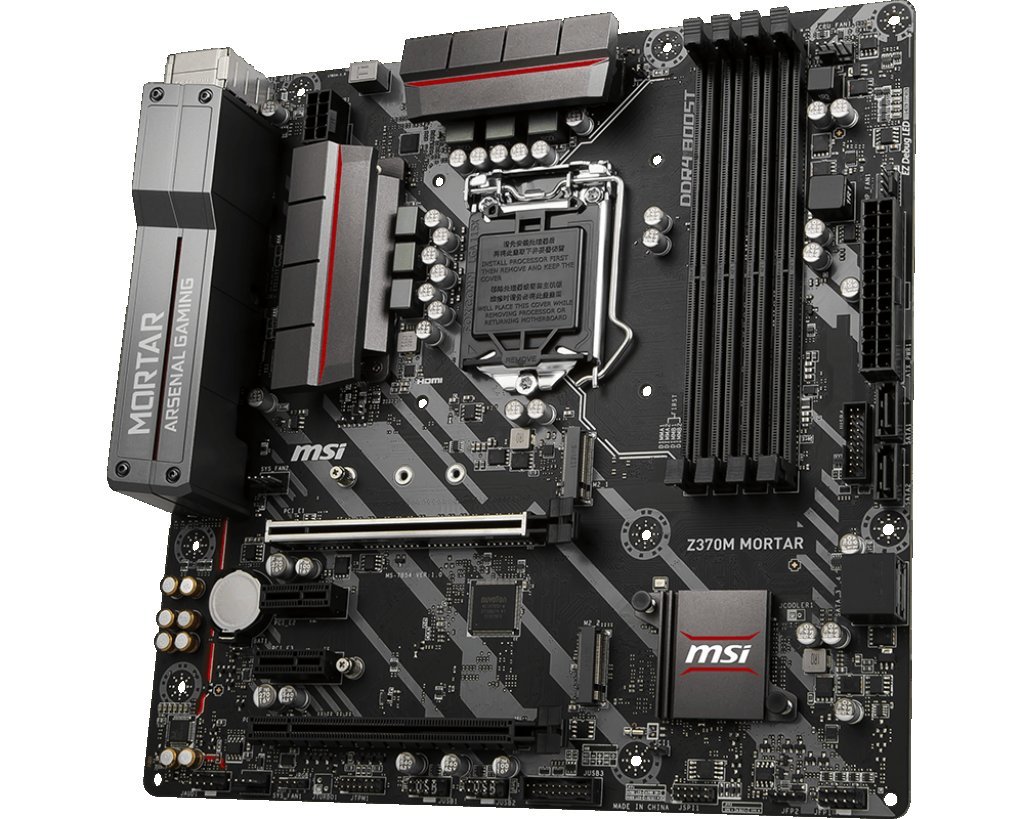

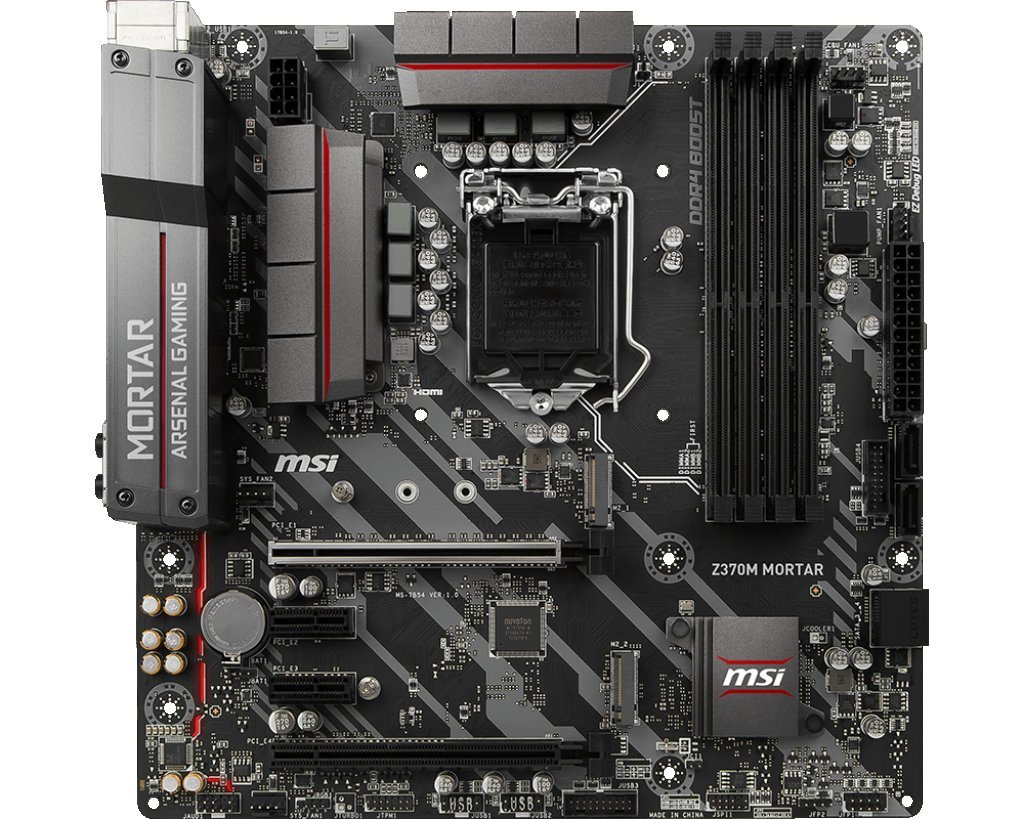

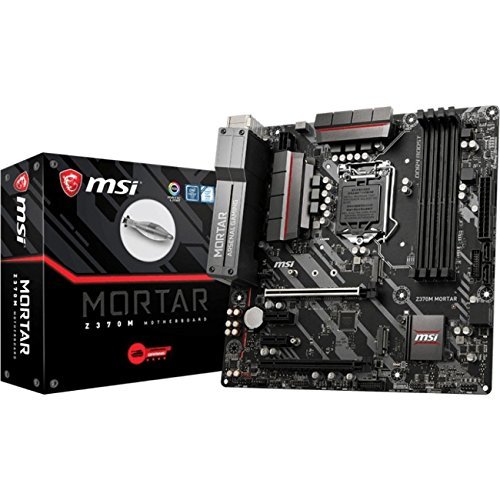

MSI Z370M MORTAR Desktop Micro ATX Motherboard

Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second. Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools.

The MSI Z370M MORTAR motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel Z370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3300 / 3333 / 3400 / 3466 / 3600 / 3733 / 3866 / 4000. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, support for SLI, stylish Black / Red design.

• Brand: MSI
• Model: Z370M MORTAR
• CPU Socket Type: LGA 1151 (300 Series)
• CPU Type: Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
• Chipset: Intel Z370
• Number of Memory Slots: 4x288pin
• Memory Standard: DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
• PCI Express x1: 2 x PCIe 3.0 x1 slots
• SATA 6Gb/s: 4 x SATA 6Gb/s
• M.2: 2 x M.2 slots (Key M)
• SATA RAID: 0/1/5/10
• Audio Chipset: Realtek ALC892
• Audio Channels: 7.1-Channel High Definition Audio, Supports S/PDIF output
• LAN Chipset: Intel I219-V
• Max LAN Speed: 10/100/1000Mbps
• PS/2: 1
• Video Ports: 1 x DVI-D
• HDMI: 1 x HDMI
• RJ45: 1 x RJ45
• DisplayPort: 1 x DisplayPort
• USB 3.1: 4 x USB 3.1 Gen1 Type-A
• USB 1.1/2.0: 2 x USB 2.0 Type-A
• S/PDIF Out: 1 x Optical
• Audio Ports: 5 Ports
• Form Factor: Micro ATX
• LED Lighting: RGB
• Dimensions (W x L): 9.6" x 9.6"
• Power Pin: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
• Onboard USB
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• Other Connectors
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x RGB LED connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

• Intel Z370
• Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133

Manufacturer：MSI
MPN：Z370M MORTAR
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset：Intel Z370
Onboard Video Chipset：Supported only by CPU with integrated graphic
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCIe 3.0 x16 slots (support x16/x4 modes)
PCI Express x1：2 x PCIe 3.0 x1 slots
SATA 6Gb/s：4 x SATA 6Gb/s
M.2：2 x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
Intel Optane Memory Ready for all M.2 slots
Supports Intel Optane Memory Ready

*SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M2_2 slot.
*Please refer to manual for Intel Optane Memory Configuration.
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC892
Audio Channels：7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
Video Ports：1 x DVI-D
HDMI：1 x HDMI
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：4 x USB 3.1 Gen1 Type-A
USB 1.1/2.0：2 x USB 2.0 Type-A
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Onboard USB：2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Form Factor：Micro ATX
Dimensions (W x L)：9.6" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：Supports 8th Gen Intel Core / Pentium Celeron processors for LGA 1151 socket

Supports DDR4 Memory, up to 4000+(OC) MHz

DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance

Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready

Audio Boost: Isolated audio with a high quality audio processor for the most immersive gaming experience

MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire

GAMING LAN powered by Intel: Experience smooth gaming experience by reducing CPU overheadand, offering more effective and long-term CPU usage

EZ Debug LED: Easiest way to troubleshoot

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

VR Ready: Best virtual reality game experience without latency, reduces motion sickness

X-Boost: Great tool to boost your USB & Storage performance

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
