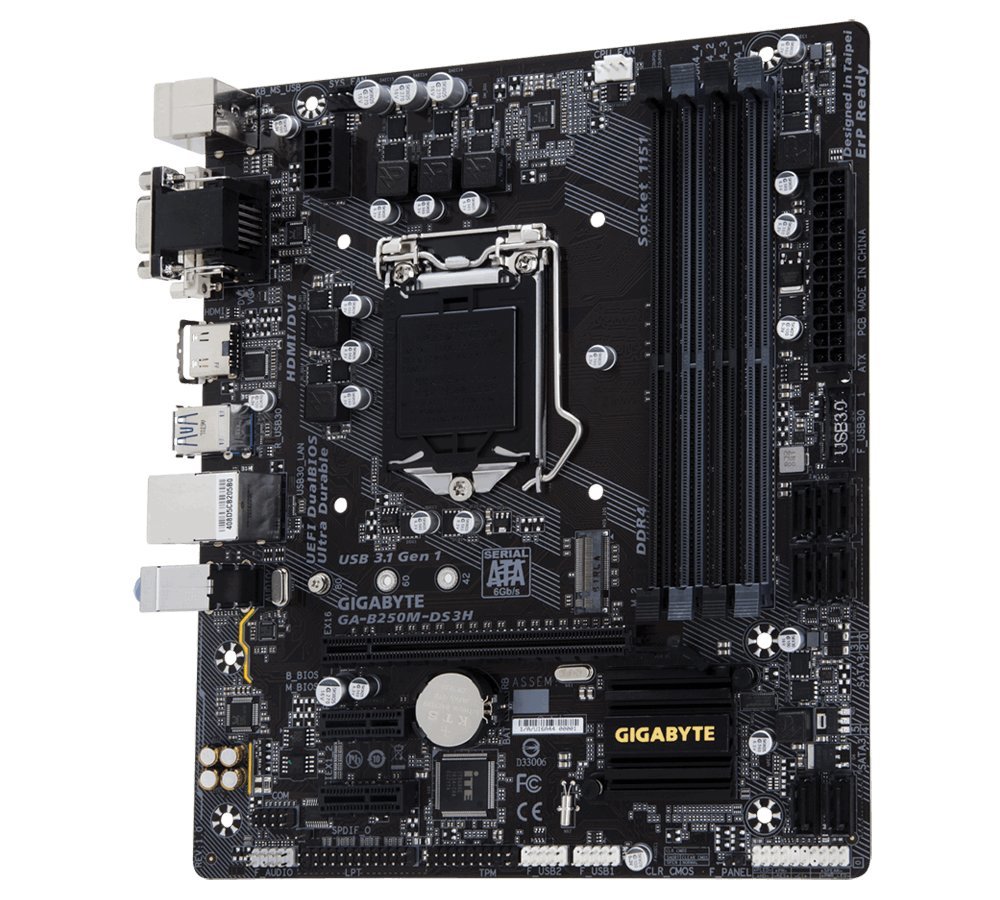

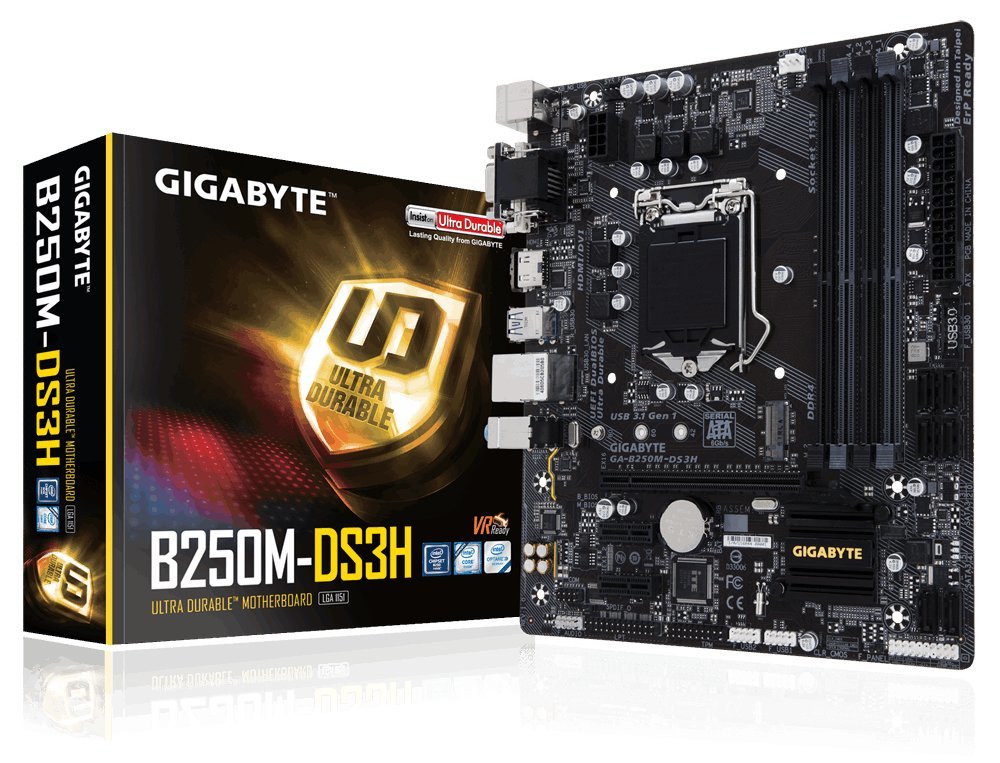

Gigabyte GA-B250M-DS3H (rev. 1.0) LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 Micro ATX Motherboard

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature changea??all without having to load Windows.

The Gigabyte GA-B250M-DS3H motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel B250 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Black / Gold design.

• Brand: GIGABYTE
• Model: GA-B250M-DS3H (rev. 1.0)
• CPU Socket Type: LGA 1151
• CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• Chipset: Intel B250
• Number of Memory Slots: 4x288pin
• Memory Standard: DDR4 2400(O.C.)*/ 2133
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16
• PCI Express x1: 2 x PCI Express x1 slots
• SATA 6Gb/s: 6 x SATA 6Gb/s connectors
• M.2: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
• Audio Chipset: Realtek ALC887
• Audio Channels: 2/4/5.1/7.1-channel
• LAN Chipset: Realtek GbE LAN chip
• Max LAN Speed: 10/100/1000Mbps

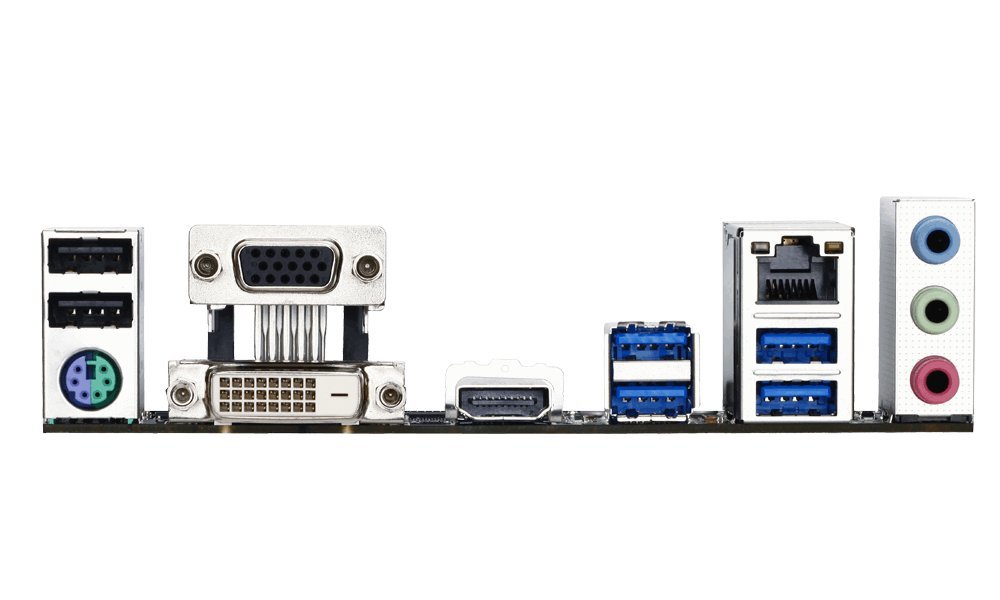

• PS/2: 1 x PS/2 keyboard/mouse port
• Video Ports: 1 x D-Sub port; 1 x DVI-D port
• HDMI: 1 x HDMI
• RJ45: 1 x RJ45
• USB 3.1: 4 x USB 3.1 Gen 1 ports
• USB 1.1/2.0: 2 x USB 2.0
• Audio Ports: 3 Ports
• Form Factor: Micro ATX
• Dimensions (W x L): 8.9" x 7.6"
• Power Pin: 24 Pin
• Onboard USB
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• Other Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module (TPM) header
• 1 x serial port header
• 1 x parallel port header
• 1 x Clear CMOS jumper

• Intel B250
• Support for 7th and 6th generation Intel Core i7/i5/i3 / Intel Pentium/Celeron processors in the LGA1151 package
• DDR4 2400*/ 2133
• * To support 2400 MHz or XMP memory, you must install a 7th generation processor.

Manufacturer：GIGABYTE
MPN：GA-B250M-DS3H (rev. 1.0)
CPU Socket Type：LGA 1151
Processor Type：Support for 7th and 6th generation Intel Core i7/i5/i3 / Intel Pentium/Celeron processors in the LGA1151 package
Supported CPU Technologies：* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel B250
Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1GB
Number of Memory Slots：4×288pin
Memory Standard：DDR4 2400*/ 2133
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
Maximum Memory Supported：64GB
* Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express x16 slot, running at x16
PCI Express x1：2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
SATA 6Gb/s：6 x SATA 6Gb/s
M.2：1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Audio Chipset：Realtek ALC887
Audio Channels：2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out
LAN Chipset：Realtek GbE LAN chip
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x D-Sub port
1 x DVI-D port
RJ45：1 x RJ45
USB 3.1：4 x USB 3.1 Gen 1 ports
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 x audio jacks (Line In, Line Out, Mic In)
Onboard USB：1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors：1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Form Factor：Micro ATX
Dimensions (W x L)：8.9" x 7.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：I/O Controller:
- iTE I/O Controller Chip

H/W Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
- Support for 3TB+ Unlock
- Support for Q-Flash
- Support for Xpress Install

Bundle Software:
- Norton Internet Security (OEM version)
- Intel Optane Memory Ready
- cFosSpeed

Operating System:
- Windows 10 64-bit (for 7th Generation Intel Processors)
- Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bit (for 6th Generation Intel Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
