ASRock Fatal1ty Gaming Z170 Gaming-ITX/ac Intel Z170 HDMI SATA 6Gb/s Mini ITX Motherboard

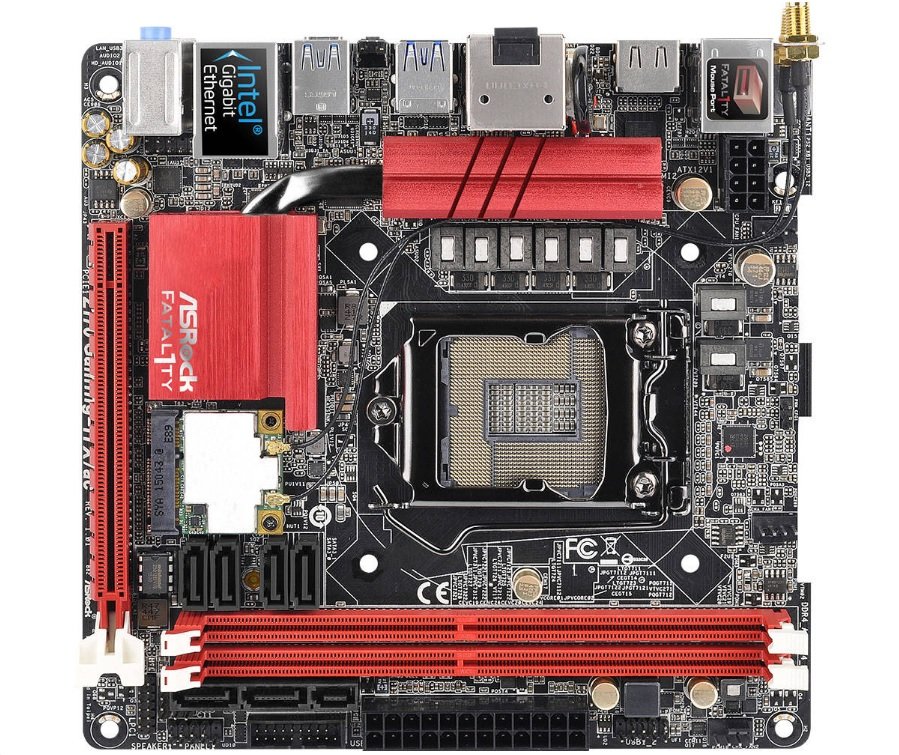

The ASRock Fatal1ty Gaming Z170 Gaming-ITX/ac Motherboard comes with an incredible amount of features for the price. It's compatible with the latest Intel LGA 1151 Skylake processors, effectively linking them to the rest of your components. ASRock Super Alloy components ensures a long-lasting board with tough capacitors. This motherboard is also enabled to use Wi-Fi, but with a strong signal unlike many adapters. This uses an exclusive 2T2R 802.11ac module to support networks up to 867 Mbps and Bluetooth v4.

The ASRock Z170 Gaming-ITX/ac motherboard supports LGA1151 processors and will fit in a standard Mini ITX case. This board is powered by the Intel Z170 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2800 / 2933 / 3300 / 3400 / 3600 / 4000. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / Red design.

• Intel Z170
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 4000+(OC)/ 3866(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133

Manufacturer：ASRock
Classification：ASRock Fatal1ty Gaming
MPN：Z170 Gaming-ITX/ac
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：Turbo Boost Technology 2.0
Chipset：Intel Z170
Onboard Video Chipset：Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530
Pixel Shader 5.0, DirectX 12
Max. shared memory 1024MB*
Three graphics output options: 2 x HDMI ports and DisplayPort 1.2
Supports Triple Monitor
Supports HDMI max.: 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz (on HDMI1)
Supports HDMI max.: 4K x 2K (4096x2160) @ 60Hz (on HDMI2)
Supports DisplayPort 1.2 max.: 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
Supports Accelerated Media Codecs: HEVC, VP8, VP9
HDMI and DisplayPort 1.2 Ports support:
- HDCP
- Full HD 1080p Blu-ray (BD) playback
Windows 8 / 8 64-bit / 7 / 7 64-bit supports:
- Blu-ray playback of Intel HD Graphics
- Intel InTru 3D

* The size of maximum shared memory may vary from different operating systems.
** Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Number of Memory Slots：2×288pin
Memory Standard：DDR4 4000+(OC)/ 3866(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

PCI Express x16：1 x PCI Express x16
Mini Card Slots：1 x Mini PCIe
Other Slots：1 x Half-size Mini-PCI Express Slot: For WiFi + BT Module
15? Gold Contact in VGA PCIe Slot (PCIE1)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
SATA Express：1 x SATA Express 10Gb/s Connector*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0, SATA3_1 and the SATA function of SATA_EXP0 will be disabled.
M.2：1 x Ultra M.2 Socket, supports type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**

**Supports NVMe SSD as boot disks
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC1150
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
Wireless LAN：WiFi IEEE 802.11 a / b / g / n / ac
Bluetooth：Bluetooth 4.0 / 3.0 + High speed class II

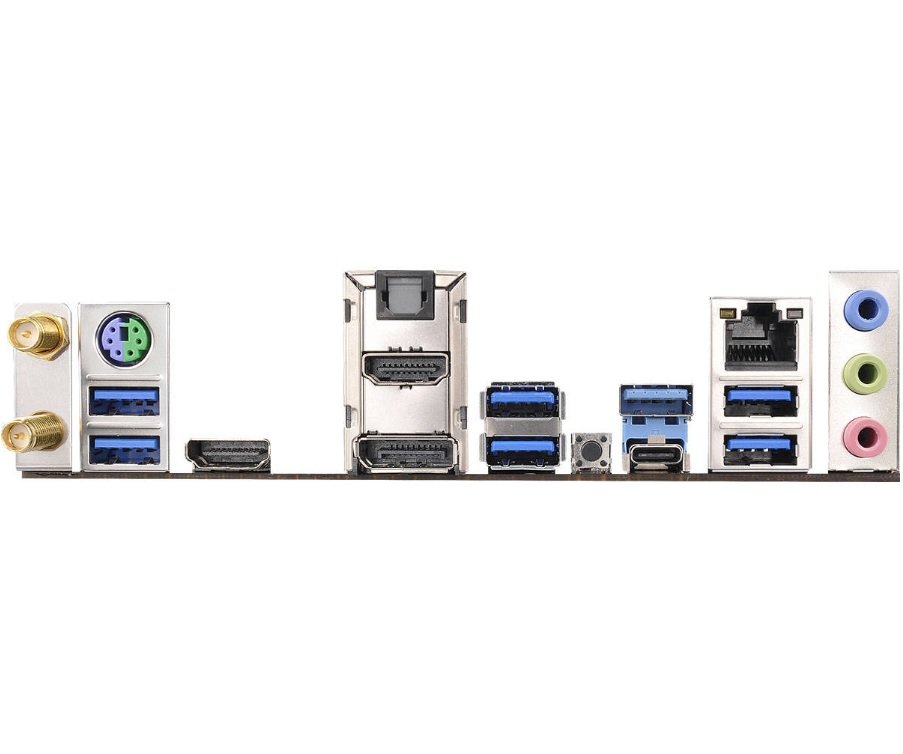

PS/2：1 x PS/2 keyboard/mouse port
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort：1 x DisplayPort
USB 3.1：1 x USB 3.1 Type-A Port (10Gb/s) (ASMedia ASM1142)
1 x USB 3.1 Type-C Port (10Gb/s) (ASMedia ASM1142)
USB 3.0：5 x USB 3.0 Ports (Intel Z170)
1 x Fatal1ty Mouse Port (USB 3.0)
USB 1.1/2.0：2 x USB 2.0
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 3.0
Other Connectors：1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)**
2 x Chassis Fan Connectors (4-pin)**
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.0 Header (Supporting 2 USB 3.0 ports)

* CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** Smart Fan Speed Control
Form Factor：Mini ITX
Dimensions (W x L)：6.7" x 6.7"
Power Pin：24 Pin

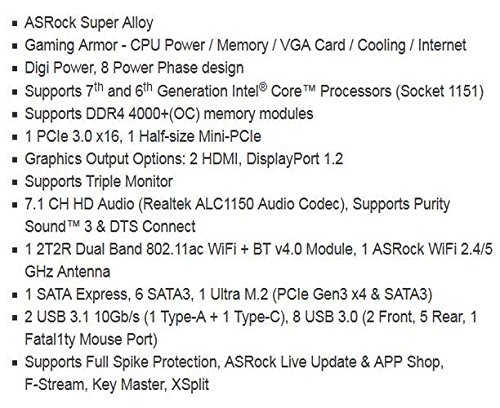

Features：Gaming Armor:
CPU Power
- Hi-Density Power Connector
Memory - 15? Gold Contact in DIMM Slots
Internet - Intel LAN
Cooling
- 8 Layer PCB
- 4 x 2oz copper
- Heat Pipe Design

Unique Feature:
ASRock USB 3.1
- ASRock USB 3.1 Type-A Port (10Gb/s)
- ASRock USB 3.1 Type-C Port (10Gb/s)
ASRock Super Alloy
- Premium 60A Power Choke
- Dual-Stack MOSFET (DSM)
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment

Wireless LAN:
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 867MBps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 4.0 / 3.0 + High speed class II

Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, XSplit

Hardware Monitor:
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

OS:
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
*To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.

Certifications:
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
