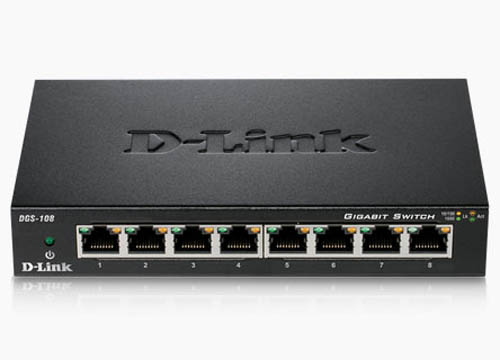

D-Link DGS-108 Passive Ethernet Switch - 8-Port Gigabit
- Model: aubd4c
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Passive ethernet switch featuring 8 ports running at gigabit (1000mbps) speeds! Great for home offices and small businesses, D-Link's DGS-108 8-port Gigabit Ethernet Switch is a cost-effective way to network and connect computer systems, network access points, cameras, and other network devices. With 8 Gigabit Ethernet ports with auto-sensing to prioritize data transfer, you'll get the best performance possible. Switch 8-Port Gigabit Desktop. D-Link 8-Port Gigabit Ethernet Desktop Switch, Unmanaged, Metal Chassis, QoS, D-Link Green
- Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1pQoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Switching Fabric
- 16Gbps
- Data Transfer Rates
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
- LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
- Dimensions
- 6.3 x 4 x 1.1 inches(162 x 102 x 28 mm)
D-Link DGS-108
- Quality of Service
- Even though this passive network switch is unmanaged, the DGS-108 can still prioritize network traffic according to priority, allowing for smooth streaming and lag-free data traffic.
- Power Saving Technology
- Part of "D-Link Green", D-Links series of eco-friendly network technology, this 8-port gigabit network switch consumes very little power, saving you energy without sacrificing performance.
- Robust Design
- This 8-port passive switch ethernet is built to last, with a sturdy metal housing that protects the internal components from impacts as well as absorbing and dissipating heat.
- Switching Fabric
- 16Gbps
- Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1pQoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Protocol
- CSMA/CD
- Data Transfer Rates
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
- Topology
- Star
- Network Cables
- 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
- Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
- LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
- Transmission Method
- Store-and-forward
- MAC Address Table
- 8K
- MAC Address Learning
- Automatic update
- Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
- RAM Buffer
- 128KB per device
- Jumbo Frames
- 9,000 Bytes
- QoS
- 4 Queues,strict mode
- DC Input
- External 5V/1 A Level "V" Power Adapter
- Power Consumption
- Power On (Standby):
- DC input: 0.5 watts
- AC input: 1.0 watts
- Maximum:
- DC input: 2.8 watts
- AC input: 4.5 watts
- Dimensions
- 6.3 x 4 x 1.1 inches(162 x 102 x 28 mm)
- Weight
- 15.52 ounces(440 grams)
- MTBF
- 2,053,751 hours
