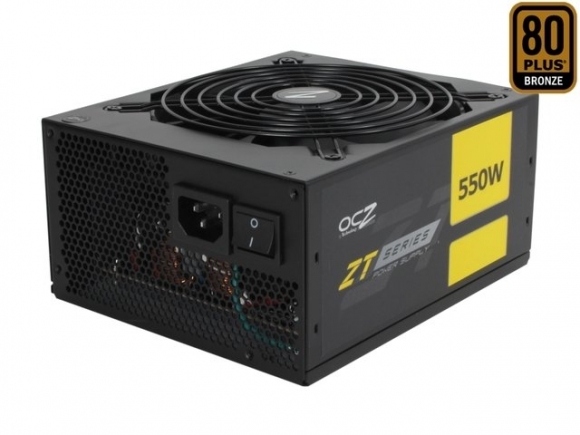

OCZ OCZ-ZT550W ZT Series 80+ Bronze 550 Watt Modular Power Supply
- Model: 91d8bk
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Power your new ATX build with the OCZ ZT550W 80Plus Bronze Power Supply. This power supply has a 500W maximum power capacity and is 80Plus Bronze certified with over 85% energy-efficiency making it ideal for powering mid-range to high-end builds. The unit is fully modular which helps you have an easier time installing and managing cables for better airflow. This power supply uses a 140mm ultra-quiet fan to cool its component to keep it running at top condition even under heavy load. This unit uses premium, high-quality components to ensure superior performance, stability and durability.
Features
- 550W continuous power
- Single Strong +12V Rail
- ATX12V V2.2 compatible
- 80PLUS Bronze Certified
- Ultra-quiet 140mm fan
- Fully modular
- Premium components
Product Specifications
- Brand
- OCZ
- Series
- ZT
- Model
- OCZ-ZT550W
- Type
- ATX12V v2.2
- Maximum Power
- 550W
- Cooling
- 140mm fan
- PFC
- Active
- Modular
- Fully
- Efficiency
- > 85%
- 80Plus
- Bronze certified
- MTBF
- > 100,000 hours
- Dimensions
- 5.9" x 3.4" x 6.9"
- Weight
- 4.94lbs.
- Output
- +3.3V Max. Current - 24A
- +5V Max. Current - 24A
- -12V Max. Current - 0.5A
- +5VSB Max. Current - 3A
- ATX12V v2.2
- 100 - 240 V
- 80 PLUS BRONZE Certified
Manufacturer：OCZ
MPN：OCZ-ZT550W
Classification：ZT Series
Type：ATX12V v2.2
Fans：1 x 140mm Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
Haswell Support：Yes
Modular：Full Modular
Efficiency：> 85%
Energy-Efficient：80 PLUS BRONZE Certified
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：8A @ 115V, 4A @ 230V
Output：+3.3V@24A, +5V@24A, +12V@45A, -12V@0.5A, +5VSB@3A
MTBF：>100,000 Hours
Approvals：UL, CUL, CE, CB, FCC Class B, TÜV, CCC, C-tick
Dimensions：5.9" x 3.4" x 6.9"
Weight：4.94 lbs.
