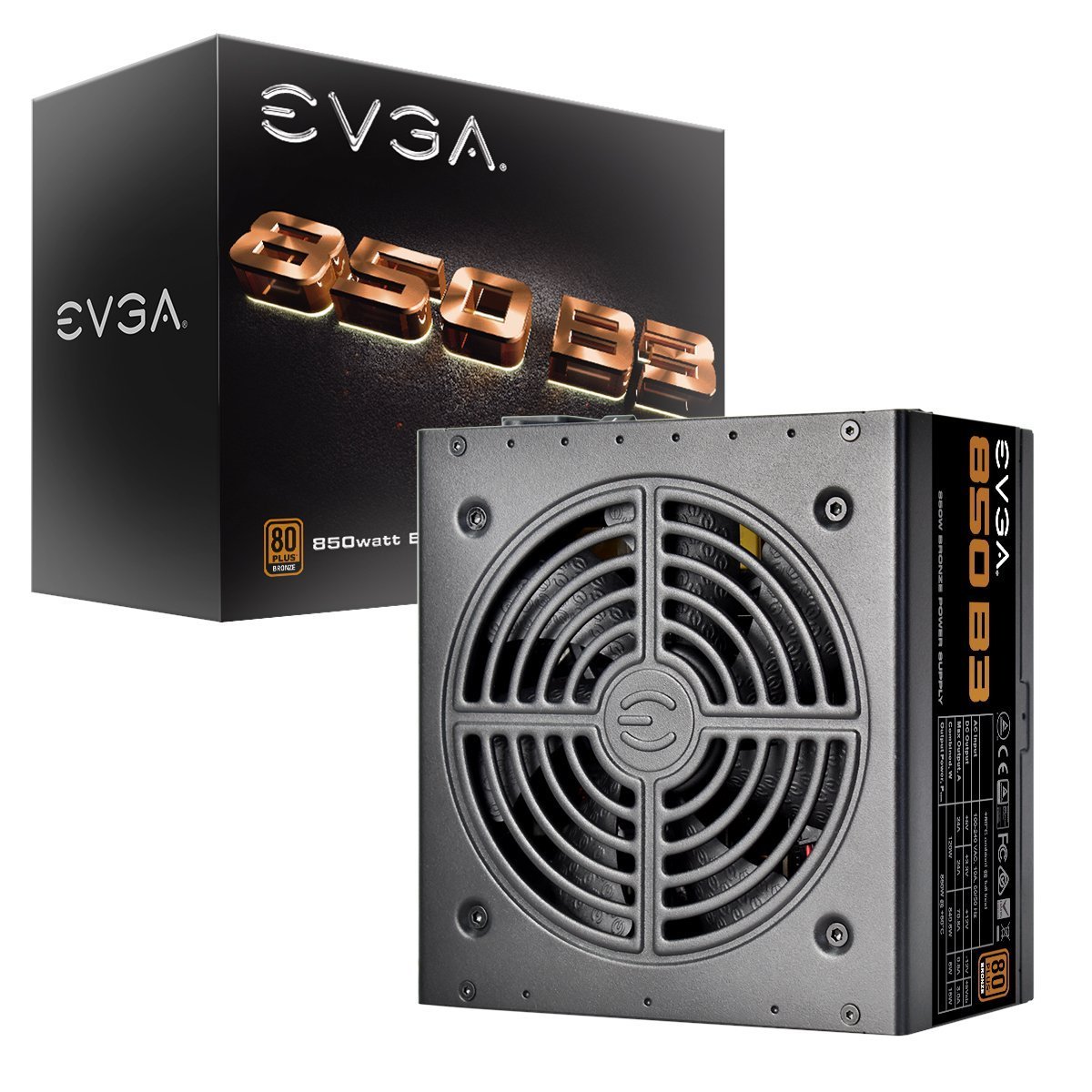

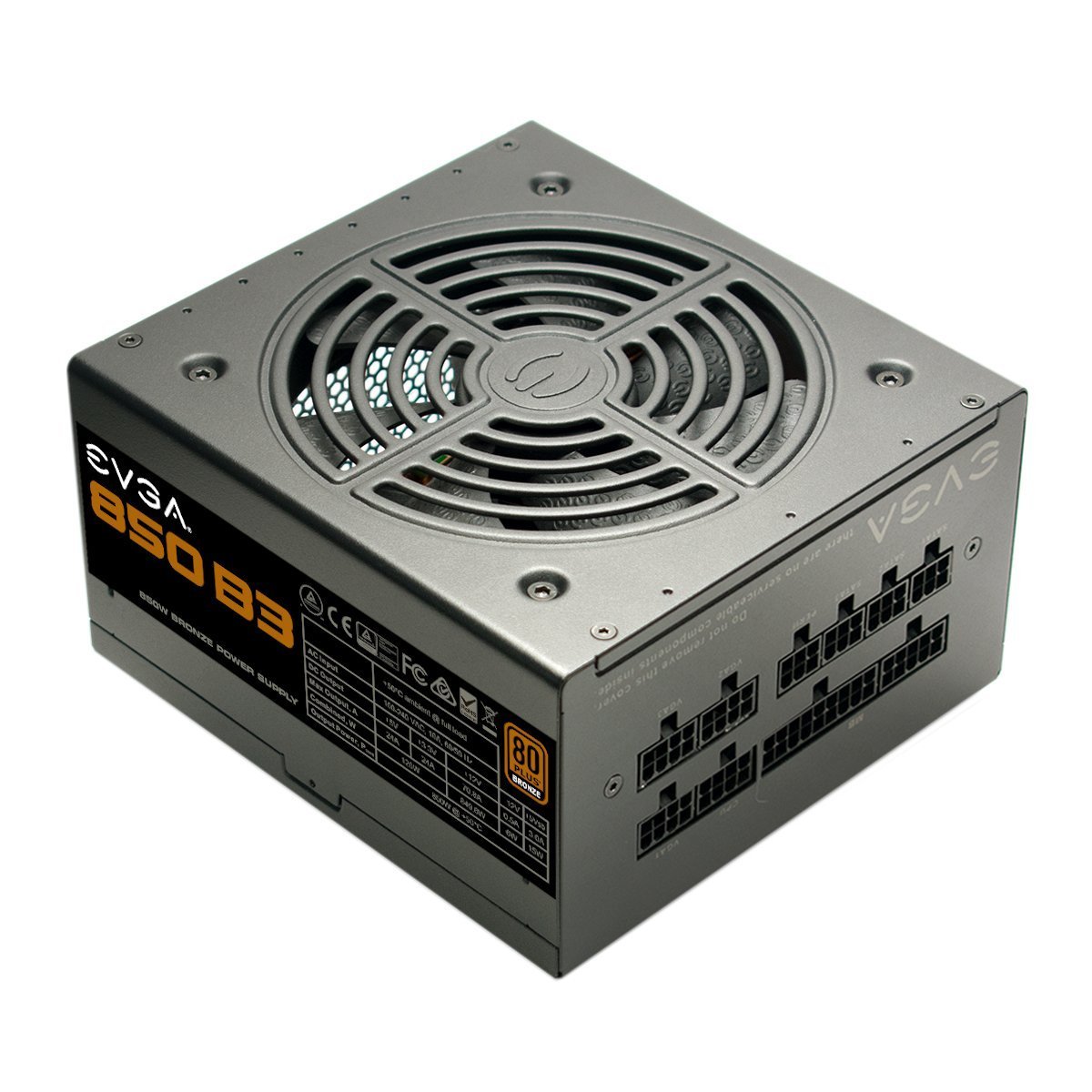

EVGA 220-B3-0850-V1 850 B3 Power Supply
- Model: 6pvdcq
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
INTRODUCING THE EVGA B3 POWER SUPPLIESEVGA Bronze power supplies have become synonymous with industry-leading stability, performance, and value. With the B3 power supplies, EVGA now adds fully modular cables, the ECO Intelligent Thermal Control System, even tighter voltage regulation (<2%), and a Long Life Sleeve Bearing Fan for ultra-quiet performance with an increased lifespan. Even more impressive, these power supplies continue to get shorter compared to its predecessors. Backed by EVGA's 5 Year Global Warranty, the EVGA B3 lineup will give you peace of mind for years to come.
- Highest quality Japanese brand capacitors on mainboard ensure long-term reliability
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Manufacturer：EVGA
MPN：220-B3-0850-V1
Classification：850 B3
Type：ATX12V / EPS12V
Maximum Power：850W
Fans：1 x 130mm Long Life Sleeve Bearing
PFC：Active
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：6 x 6+2-Pin
SATA Power Connector：9
SLI：SLI Ready
Haswell Support：Yes
Modular：Full Modular
Efficiency：85% Efficiency
Energy-Efficient：80 PLUS BRONZE Certified

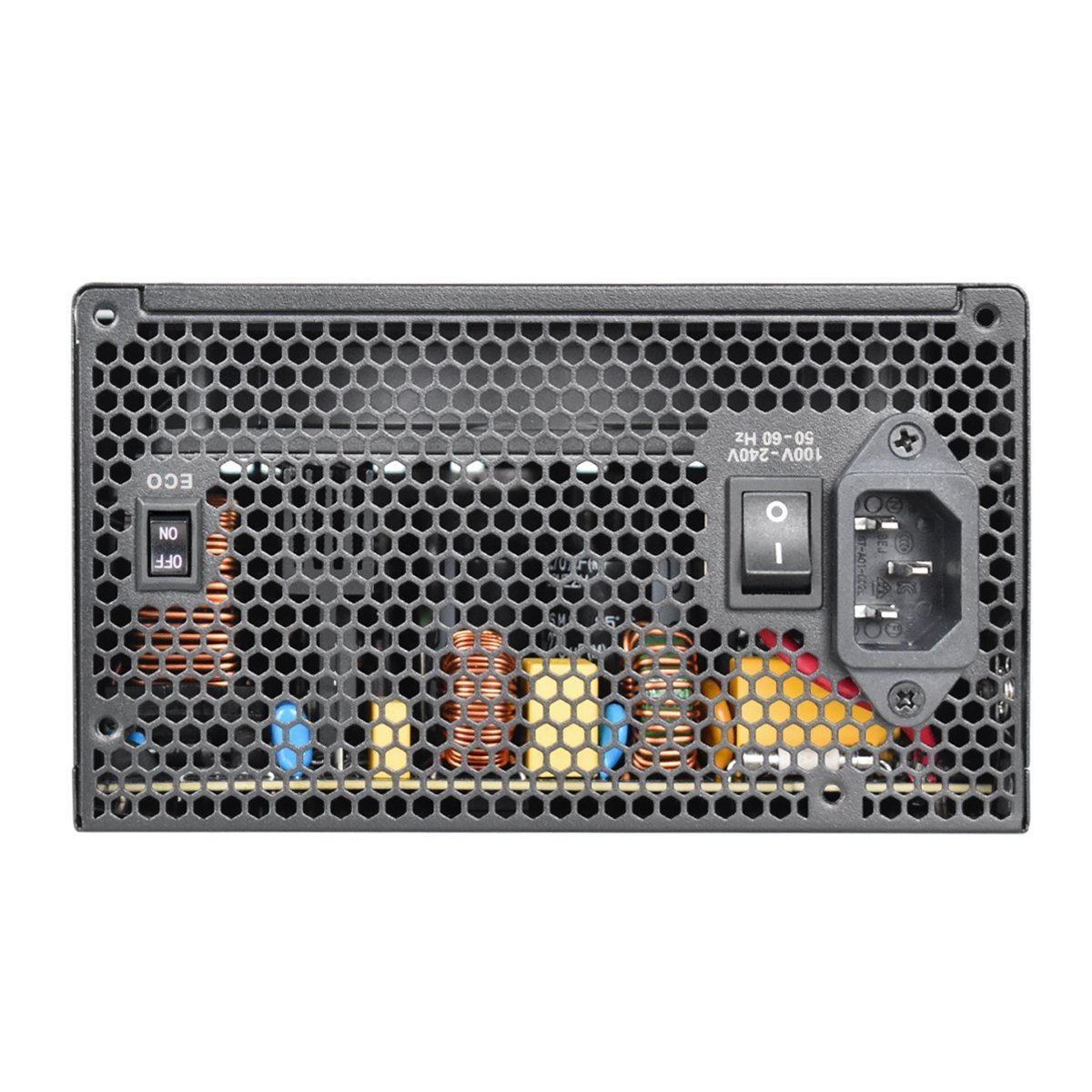

Input Voltage：100 - 240 V
Input Frequency Range：50 - 60 Hz
Input Current：10A

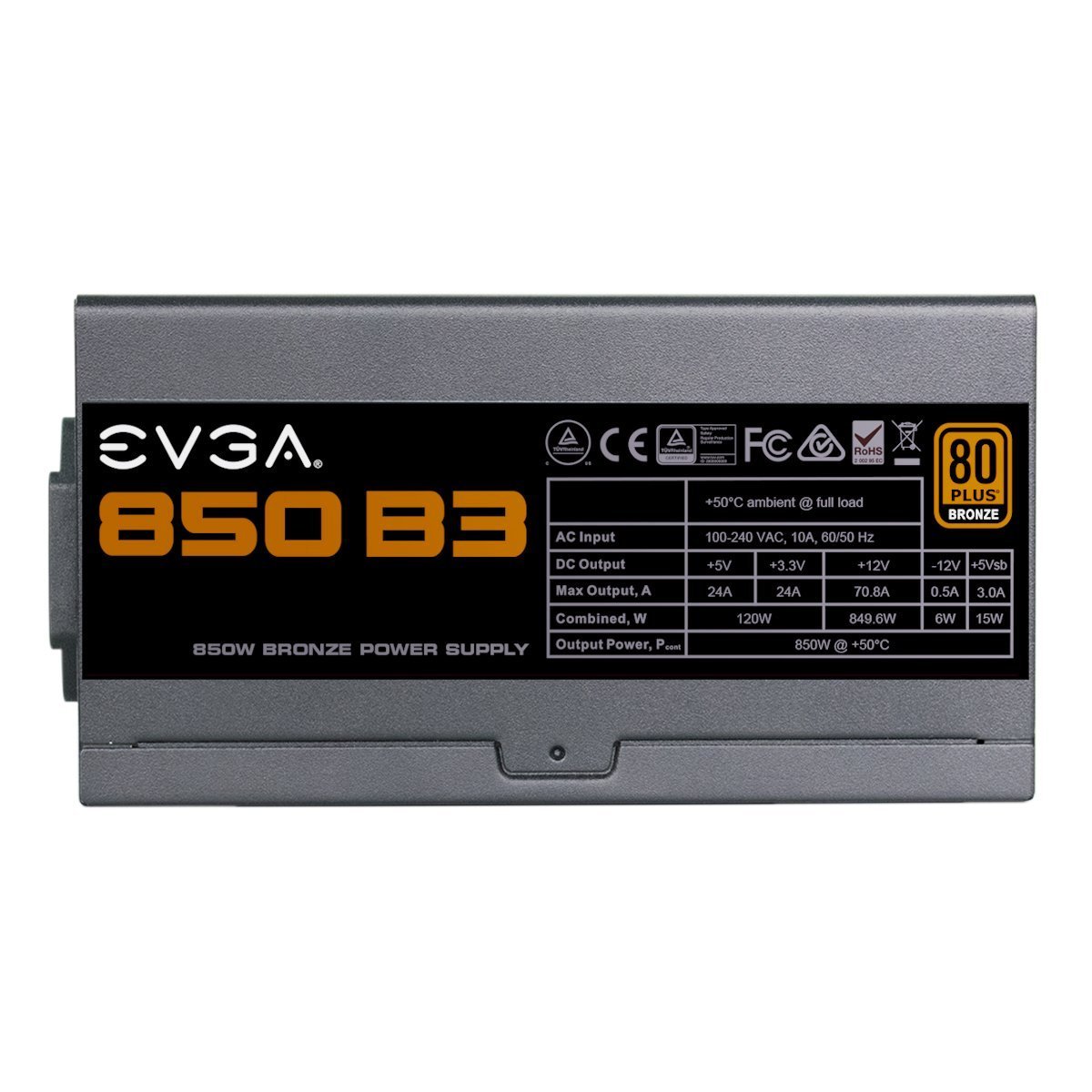

Output：+3.3V@24A, +5V@24A, +12V@70.8A, +5Vsb@3A, -12V@0.5A
MTBF：>100,000 Hours
Approvals：TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.35" x 5.91" x 6.30"
Weight：5.00 lbs.

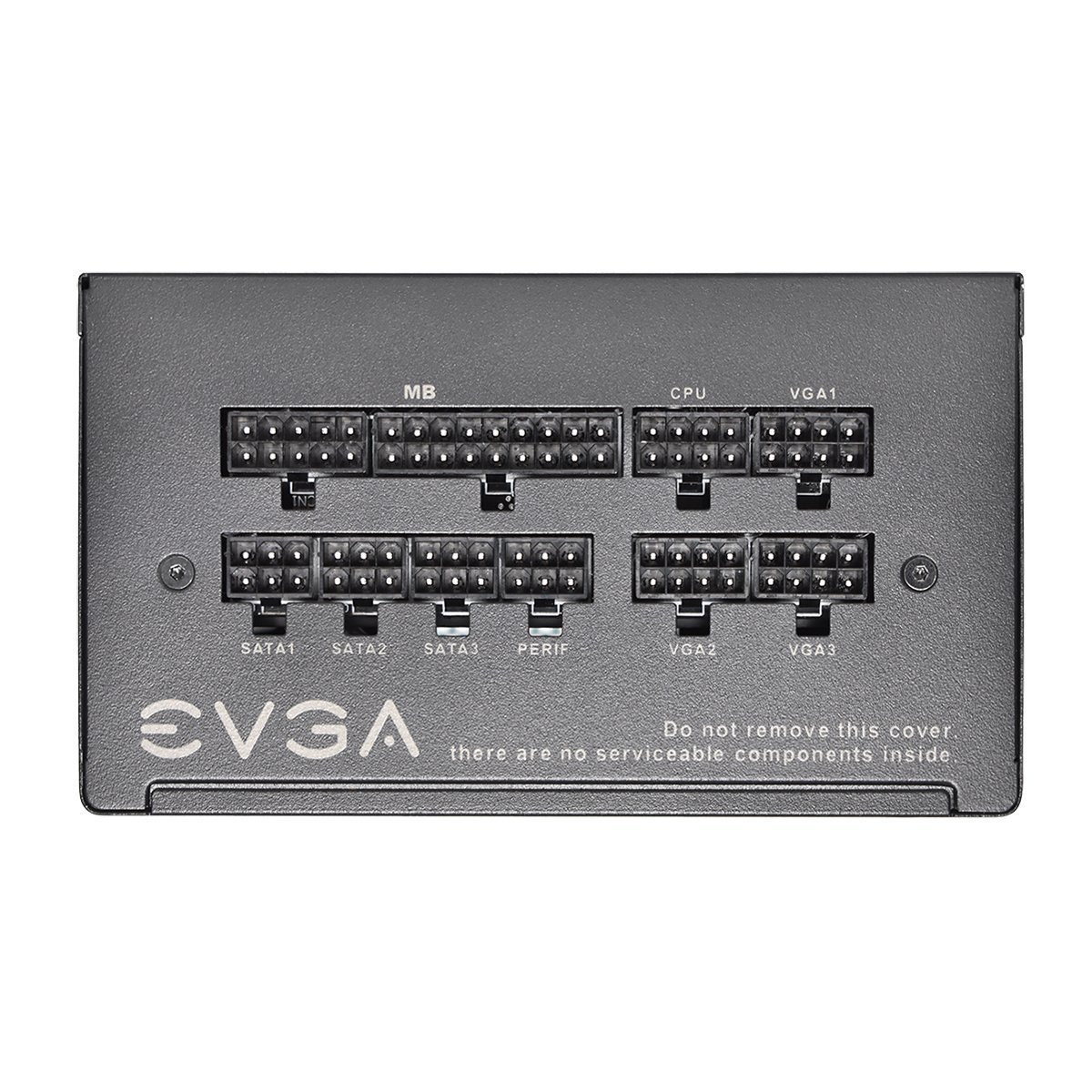

Connectors：1 x 24Pin ATX
1 x 8pin (4+4) EPS (CPU)
6 x 8pin (6+2) PCIE
9 x SATA
3 x Four-Pin Peripheral
1 x Floppy
