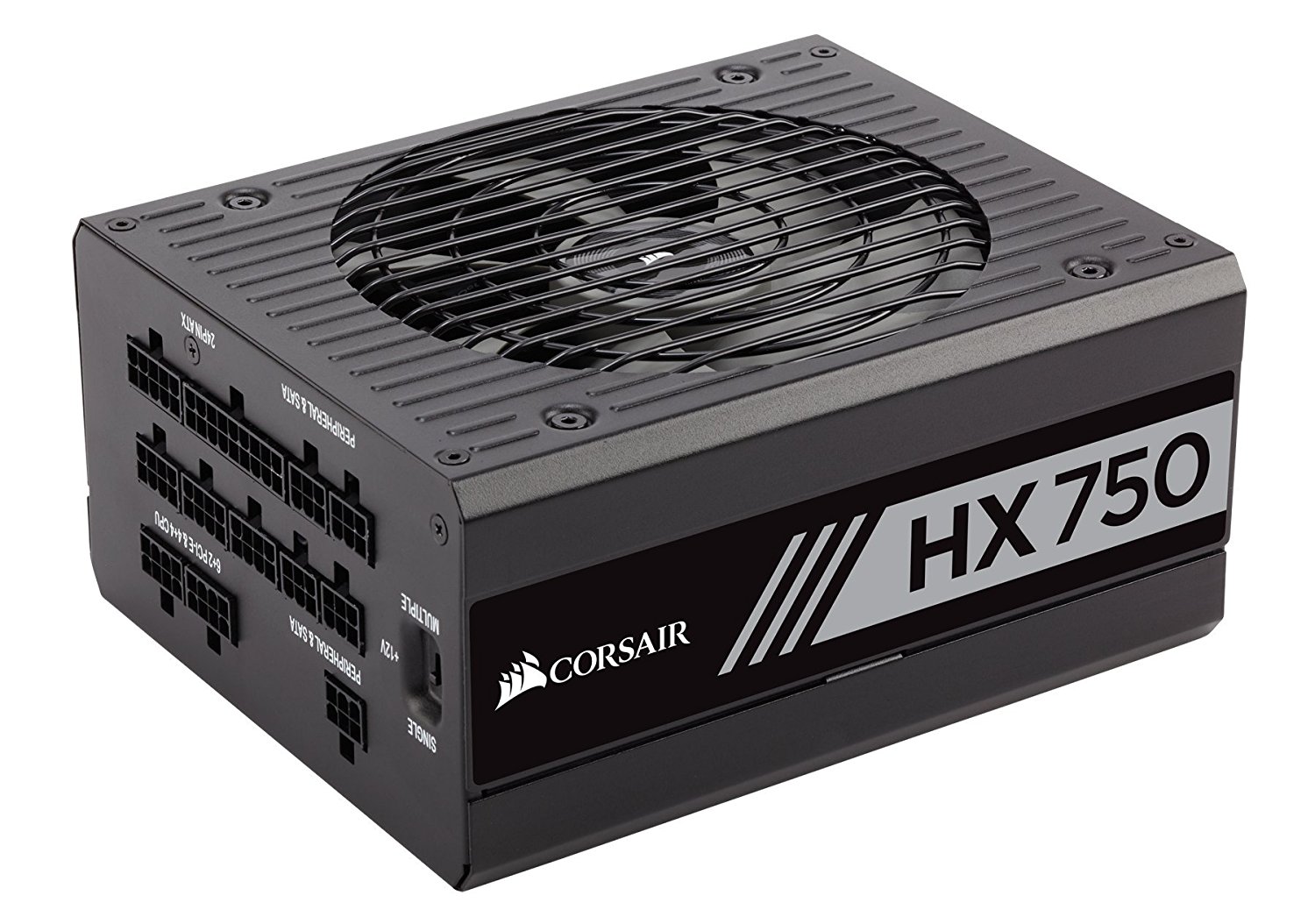

Corsair HX Series HX750 750W ATX12V v2.4 / EPS12V 2.92 80 Plus Platinum Modular Power Supply
- Model: 2bd548
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. Premium internal components ensure solid power delivery and long term reliability.
- Weight: 1.92kg
- 80 PLUS Certification Level: Platinum
- Power: 750 Watts
- Zero RPM Fan Mode: Yes
- Fan Bearing Technology: Fluid Dynamic Bearing
- Fan size: 135mm
- Corsair Link Support No
- Continuous Output Rated Temperature (°C): 50°C
- Dimensions: 150mm x 86mm x 180mm
- Modular: Fully
- Cable Type: Low-Profile, All Black
- ATX Connector: 1
- EPS Connector: 2
- Floppy Connector: 1
- 4-Pin Peripheral Connector: 4
- PCIe Connector: 4
- SATA Connector: 16
- Plug Type: NA
- ATX12V v2.4 / EPS12V 2.92
- Full Modular
- 80 PLUS PLATINUM Certified
- 100 - 240 V 47 - 63 Hz
- Single +12V Rail Mode: +3.3V@25A, +5V@25A, +12V@62.5A, -12V@0.8A, +5VSB@3A
Manufacturer：CORSAIR
MPN：HX750 (CP-9020137-NA)
Classification：HX Series
Type：ATX12V v2.4 / EPS12V 2.92
Maximum Power：750W
Fans：1 x 135mm fluid dynamic bearing fan
Main Connector：24Pin
+12V Rails：Single +12V Rail or Multi +12V Rail Mode
PCI-Express Connector：4 x 6+2-Pin
SATA Power Connector：16
Haswell Support：Yes
Modular：Full Modular
Energy-Efficient：80 PLUS PLATINUM Certified
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：10 - 5 A
Output：Single +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V@62.5A, -12V@0.8A, +5VSB@3A
Multiple +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, -12V@0.8A, +5VSB@3A
Approvals：FCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
Dimensions：3.39" x 5.91" x 7.09"
Weight：4.23 lbs.
Connectors：1 x ATX Connector
2 x EPS Connector
1 x Floppy Connector
4 x 4-Pin Peripheral Connector
4 x PCIe Connector
16 x SATA Connector
Features：Active PFC with full range AC input (100-240 VAC).
135mm fluid dynamic bearing fan with Zero RPM mode.
Engineered to meet maximum power output at a 50 degree C temperature rating.
Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
