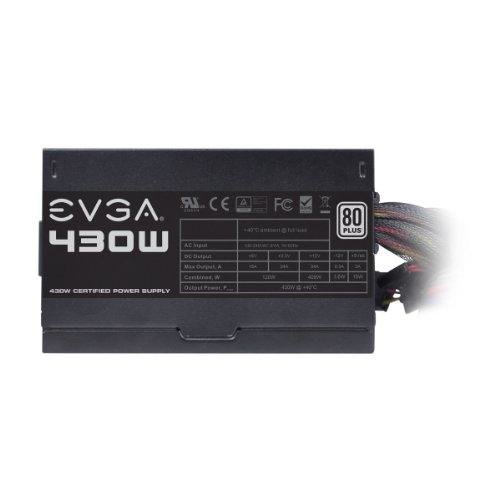

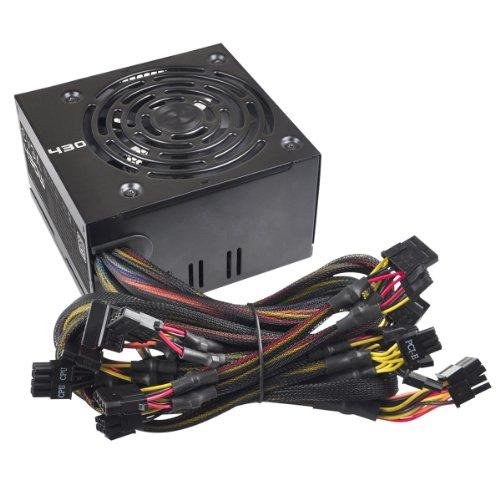

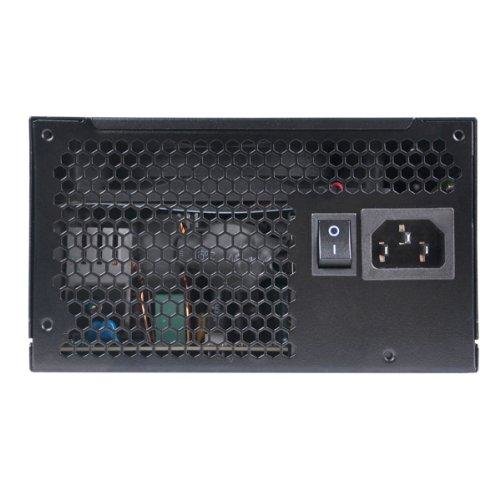

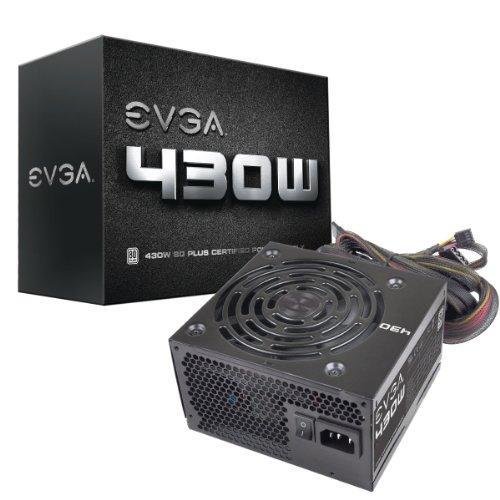

EVGA ATX Main Stream 430W ATX12V Power Supply
- Model: y3nrog
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This EVGA 430 Watt ATX12V Power Supply comes with enough connectors to create a high performance system. With 4 x SATA connectors, 1 x PCI-E 6+2 pin connectors, 4+4 Pin EPS12v connector, and 1 x 24-pin motherboard, you'll be able to add on the peripherals you need. 430W 80Plus PSU. EVGA 430 White 430W 80Plus Power Supply. Ultra-Quiet Fan 120mm. Provides up to 34A/408W on the +12V rail. Active power factor correction(PFC). Provides up to 430W at 40 degree C.
When building on a budget, the EVGA 430W 80 PLUS is a great choice at a low cost. Supporting 34A on a single +12V rail provides more options without having to reduce your component requirements. Save space with the 430W's compact design, well-placed power switch and fully sleeved cables. The 430W offers the connections and protections needed for basic system builds. With a standard 3 year warranty and ultra quiet fan design the 430W will be a great asset for your next build on a budget.

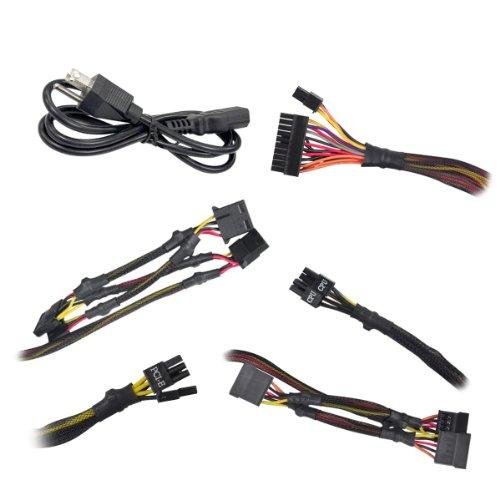

- 430W Power Supply
- Non-Modular Design
- Braided CAble Sleeving
- ATX CABLE
- 1x 550mm
- EPS CABLE
- 1x 600mm
- PCIE CABLE
- 1x 550mm
- SATA CABLE
- 2x 450mm, 570mm
- FOUR-PIN PERIPHERAL CABLE
- 1x 450mm, 570mm, 690mm (f)
- FLOPPY CABLE
- 1x 120mm
- AC POWER
- 1x 1200mm (m)
- ATX12V / EPS12V
- Non-Modular
- 80 PLUS Certified
- 100 - 240 V 50/60 Hz
- +3.3V@24A, +5V@15A, +12V@34A, +5VSB@3A, -12V@0.3A
Manufacturer：EVGA
MPN：100-W1-0430-KR
Type：ATX12V / EPS12V
Maximum Power：430W
Fans：1 x 120mm Sleeve Bearing Fan
PFC：Active
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：1 x 6+2-Pin
Haswell Support：Yes
Modular：Non-Modular
Energy-Efficient：80 PLUS Certified
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：10 - 5 A
Output：+3.3V@24A, +5V@15A, +12V@34A, +5VSB@3A, -12V@0.3A
MTBF：100,000 Hours
Approvals：TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.30" x 5.90" x 5.50"
Weight：3.00 lbs.
Connectors：1 x 24-Pin ATX
1 x 4+4-Pin EPS12V
1 x 6+2-Pin PCI-E
6 x SATA
3 x Four-Pin Peripheral
1 x Floppy
Features：Quiet and Intelligent Auto Fan for near-silent operation
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
