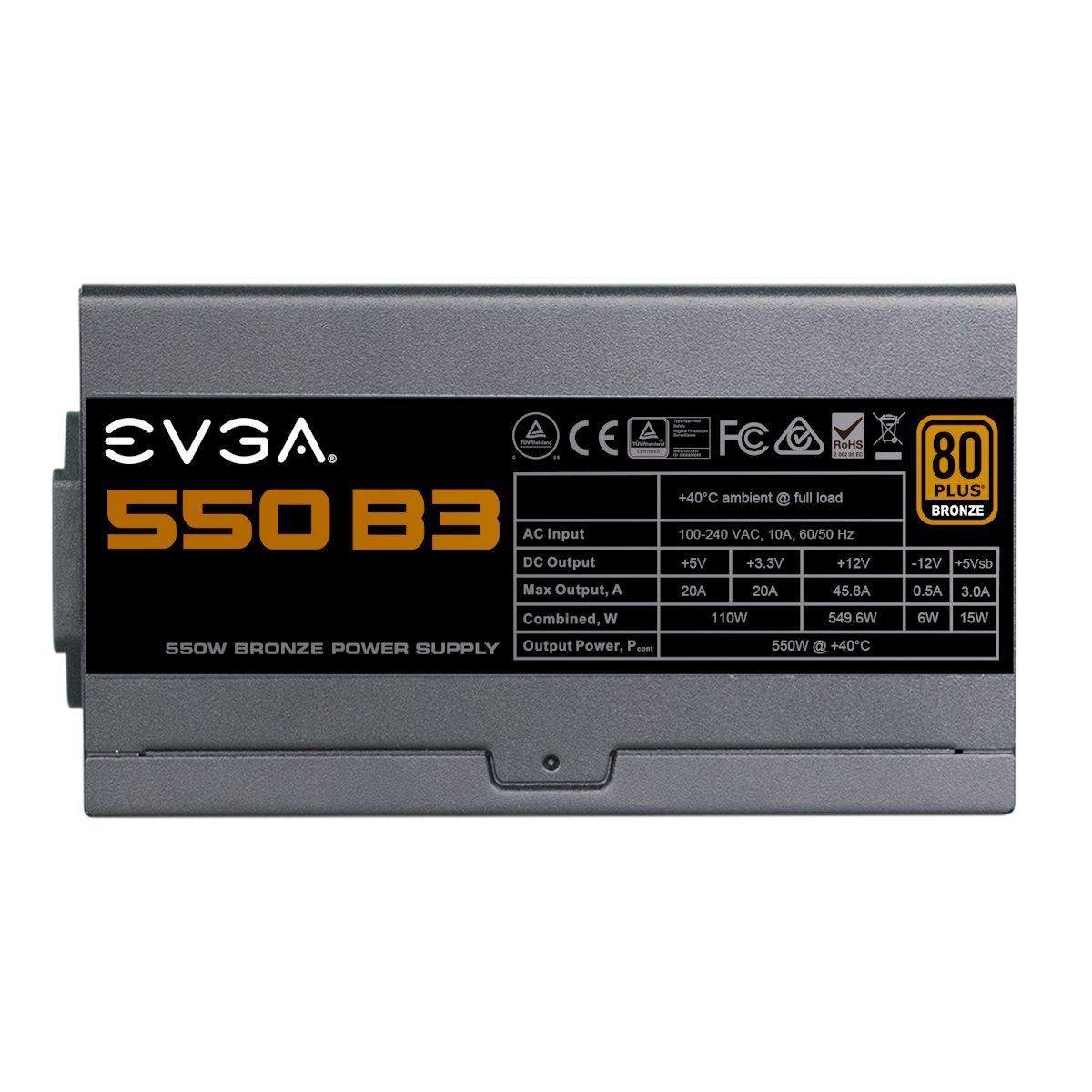

EVGA 550 220-B3-0550-V1 B3 Power Supply
- Model: yhcdgl
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
EVGA Bronze power supplies have become synonymous with industry-leading stability, performance, and value. With the B3 power supplies, EVGA now adds fully modular cables, the ECO Intelligent Thermal Control System, even tighter voltage regulation (<2%), and a Long Life Sleeve Bearing Fan for ultra-quiet performance with an increased lifespan. Even more impressive, these power supplies continue to get shorter compared to its predecessors. Backed by EVGA's 5 Year Global Warranty, the EVGA B3 lineup will give you peace of mind for years to come. The EVGA B3 power supplies feature a Long Life Sleeve Bearing Fan, resulting in quieter operation and a longer lifespan. Alternatively, flip on the EVGA ECO mode for fully silent operation at low to medium loads. Featuring Japanese capacitors on the mainboard, the B3 lineup takes the already efficient B2 series and makes it even better with near-Silver efficiency and less than 2% ripple. These power supplies have up to 88% efficiency! Use only the cables you need, reducing cable clutter and improving case airflow.
- Highest quality Japanese brand capacitors on mainboard ensure long-term reliability.
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Brand：EVGA
Model：220-B3-0550-V1
Series：B3
Type：ATX12V / EPS12V
Maximum Power：550W
Fans：1 x 130mm Long Life Sleeve Bearing
PFC：Active
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
SATA Power Connector：6
SLI：SLI Ready
Haswell Support：Yes
CrossFire：Yes
Modular：Full Modular
Efficiency：85% Efficiency
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：50 - 60 Hz
Input Current：10A
Output：+3.3V@20A, +5V@20A, +12V@45.8A, +5Vsb@3A, -12V@0.5A
MTBF：100,000 Hours
Approvals：TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.35" x 5.91" x 5.91"
Weight：4.20 lbs.
Connectors：1 x 24 Pin ATX
1 x 8pin (4+4) EPS (CPU)
2 x 8pin (6+2) PCIE
6 x SATA
3 x Four-Pin Peripheral
1 x Floppy
