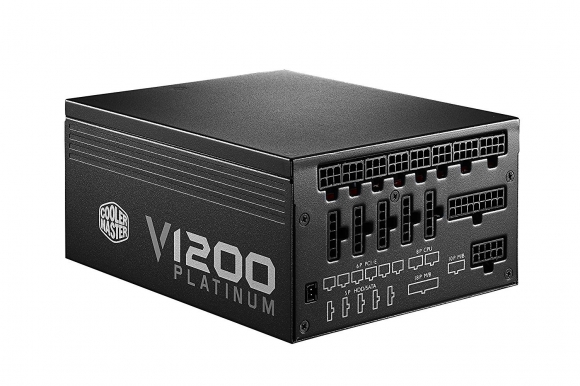

Cooler Master V1200 - Fully Modular 1200W 80 PLUS Platinum PSU with Silent Fanless Mode Operation
- Model: 3y16u7
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Cooler Master's flagship V1200 is a Fully Modular, 1200W power supply with 80 PLUS Platinum certification that exhibits up to 93% efficiency at 50% load. Featuring 100% Japanese Capacitors, the V1200 ensures reliable performance and longevity. It comes equipped with a 135mm FDB fan with a Hybrid Fan Controller that allows you to quickly toggle between an always-on fan mode and zero dBA fanless operation (when under 30% load). A single, powerful +12V rail can deliver up to 100A to power the latest and greatest graphics cards, whether alone or coupled with others in SLI or CrossFire modes. V1200 outperforms the competition with excellent voltage stability, ensuring total voltage regulation under 1%, outperforming even digital PSUs.
- Brand: COOLER MASTER
- Model: RSC00-AFBAG1-US
- Type: ATX12V / EPS12V
- Maximum Power: 1200W
- Fans: 1
- Main Connector: 20+4Pin
- +12V Rails: Single
- SATA Power Connector: 12
- Modular: Full Modular
- Power Good Signal: 100-500ms
- Hold-up Time: >17ms
- Efficiency: 93% Typical
- Energy-Efficient: 80 PLUS PLATINUM Certified
- Over Voltage Protection: Yes
- Overload Protection: Yes
- Input Voltage: 100 - 240 V
- Input Frequency Range: 50/60 Hz
- Input Current: 15 - 7.5A
- Output: +3.3V@25A, +5V@25A, +12V@100A, -12V@0.5A, +5VSB@3A
- MTBF: >100,000 Hours
- Dimensions: 3.40" x 5.90" x 7.50" (H x W x D)

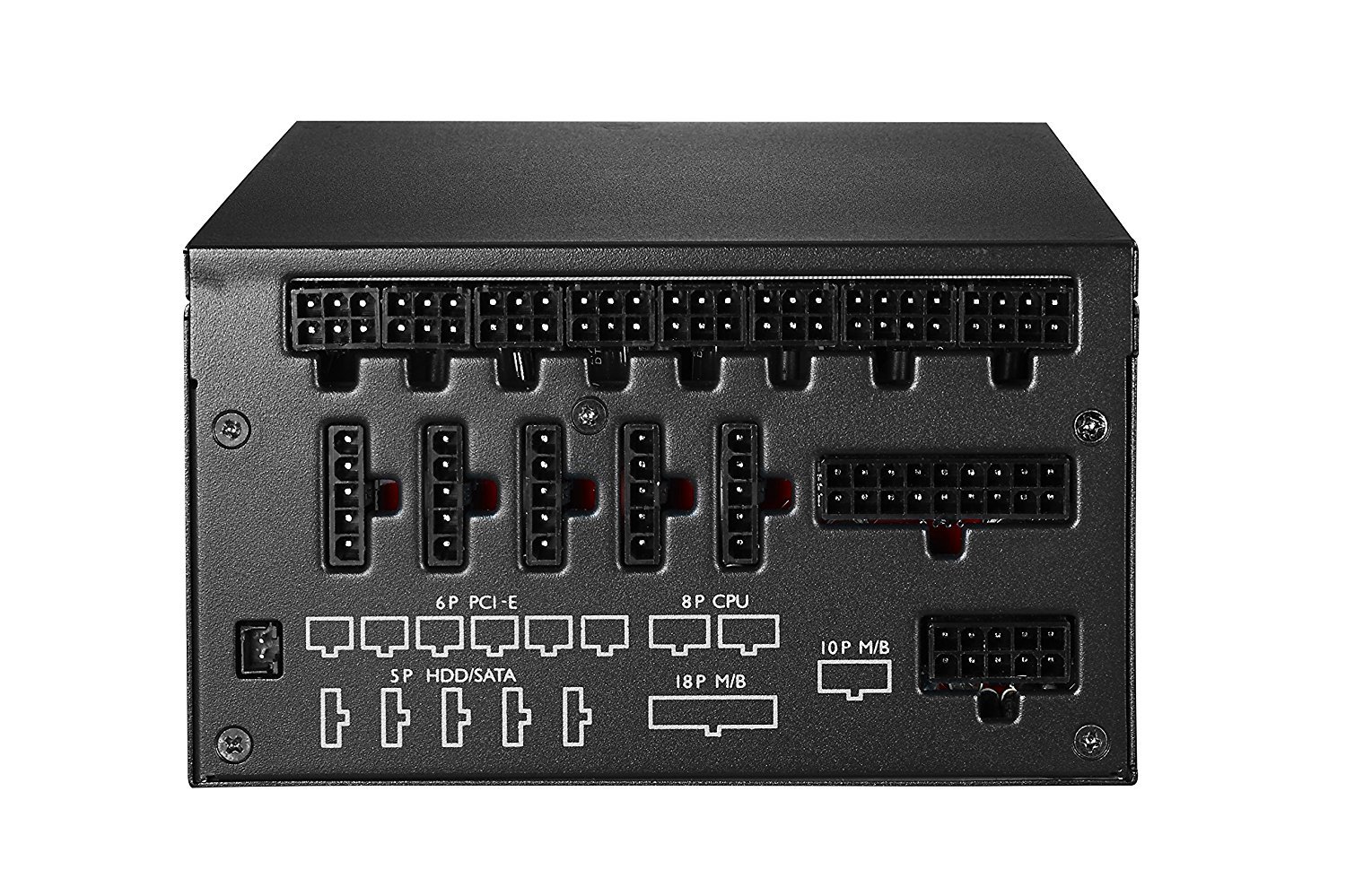

- Connectors:
- M/B 20+4 Pin x 1
- CPU 4+4 Pin x 2
- PCI-e 6+2 Pin x 12
- SATA x 12
- 4 Pin Peripheral x 9
- 4 Pin Floppy x 1
- Fully Modular
- Two EPS Connectors to support AMD ThreadRipper
- 100% Japanese Capacitors
- 80 PLUS Platinum
- Hybrid Fan Controller-Quickly toggle between Auto and Hybrid fan modes
- Zero dBA fanless operation (when under 30% load in Hybrid Mode)
Manufacturer：COOLER MASTER
MPN：RSC00-AFBAG1-US
Type：ATX12V / EPS12V
Maximum Power：1200W
Main Connector：20+4Pin
+12V Rails：Single
Modular：Full Modular
Power Good Signal：100-500ms
Hold-up Time：>17ms
Efficiency：93% Typical
Energy-Efficient：80 PLUS PLATINUM Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：15 - 7.5A
Output：+3.3V@25A, +5V@25A, +12V@100A, -12V@0.5A, +5VSB@3A
MTBF：>100,000 Hours
Dimensions：3.40" x 5.90" x 7.50" (H x W x D)
Weight：10.6
Connectors：M/B 20+4 Pin x 1
CPU 4+4 Pin x 2
PCI-e 6+2 Pin x 12
SATA x 12
4 Pin Peripheral x 9
4 Pin Floppy x 1
Features：Two 4+4 Pin EPS connectors - To support high end AMD ThreadRipper and Intel Core i9 motherboards
Fully modular cable design for easy installation and cable management

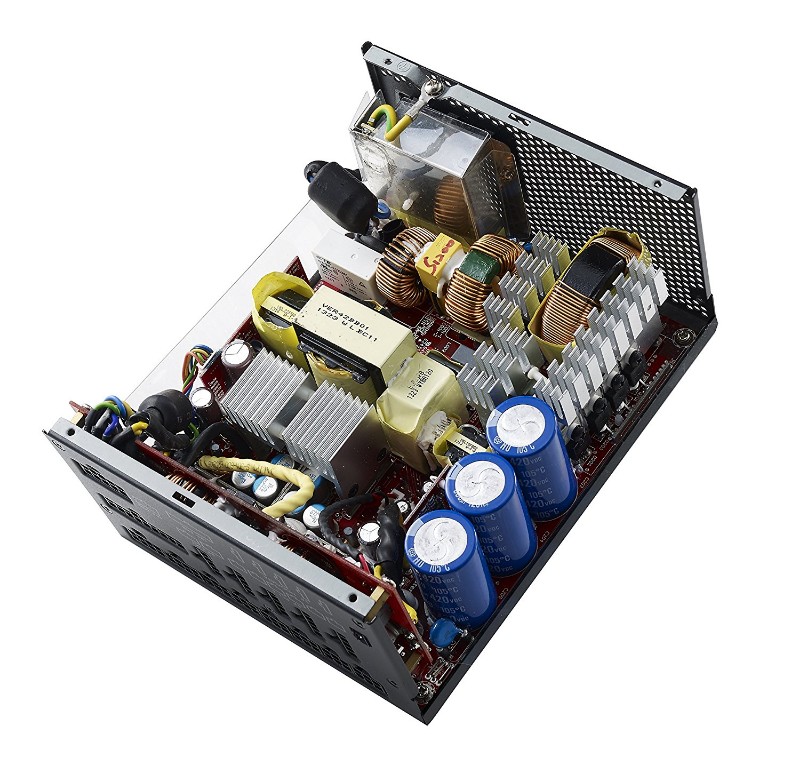

100% high quality Japanese electrolytic & solid capacitors ensure performance and reliability
135mm FDB silent fan default as hybrid mode, equipped with hybrid fan controller, easily switch mode (auto / hybrid) by the controller
Zero dBA fanless mode silent operation
80 PLUS Platinum certified: up to 93% efficiency @ 50% load
Powerful single +12V rail, capable of delivering up to 100A
Excellent output voltage stability ensures total voltage regulation under 1% (even better than DSP)
Twelve PCI-E 6+2pin connectors for 4 way SLI & high end solution builds
