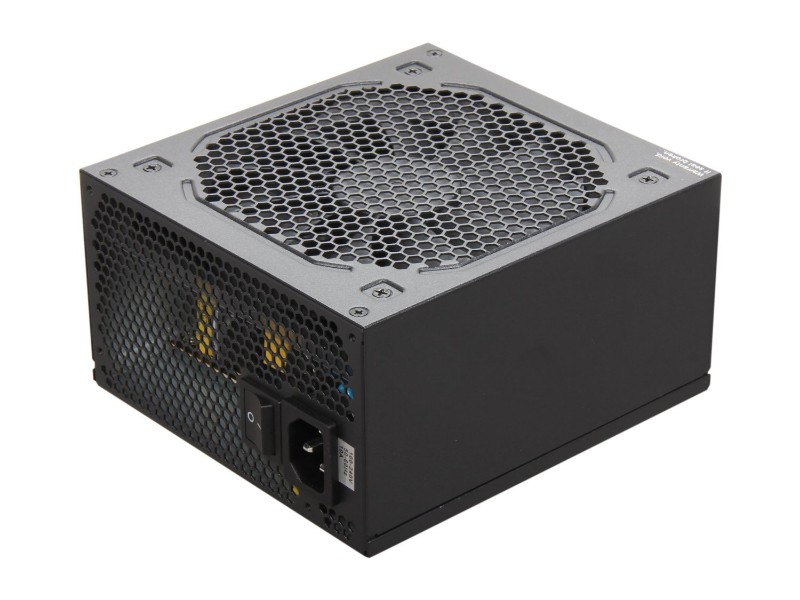

Rosewill Hive 550W 80+ Bronze Semi-Modular ATX Power Supply Hive-550S

Looking for a power supply for a new system? Get the Rosewill HIVE 550W 80+ Bronze ATX PSU. This unit delivers 550 watts of continuous power for your system. It is capable of running high-end CPU and multi-graphic card setups. The unit is 80Plus Bronze certified ensuring high energy-efficiency that helps save electrical costs and reduces heat on your system. The unit also offers protection from over voltage, over temperature, over current, short circuit and other hazards to provide maximum safety for your precious components. The semi modular design lets you manage the cables easily and cleanly for a clean-looking build.

Features

• 80 PLUS BRONZE Certified
• Continuous 550W@40 C
• Single strong 12V rail - idea for Gaming system
• SLI & CrossFire ready - 2x 6+2pin Connector

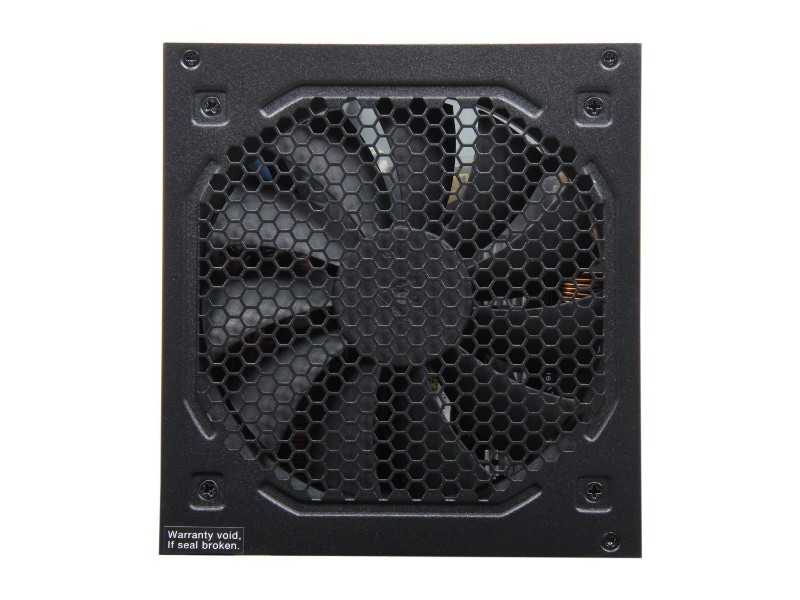

• 1x Silent 135mm Fan with auto fan speed control
• Active-PFC with auto AC-input voltage adjustment(115-230V)
• Mesh sleeve on all cables for easier cable routing and better ventilation
• Over Temperature/Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components
• 3-year Warranty - One-to-One replacement
• Safety & EMI Approval: UL, FCC, CE, CB, ROHS

Product Specifications

Brand

Rosewill

Model

HIVE-650S

Type

ATX12V v2.31 & EPS12V v2.92

Maximum Power

550W

Fan

1 x Silent 135mm

PFC

Active

Main Connector

20+4 Pin

+12V Rails

SLI Ready

Yes

CrossFire Ready

Yes

Haswell Support

Yes

Modular

Semi

Power Good Signal

100-500ms

Hold-up Time

> 16ms

Efficiency

> 82% Up to 87%

Energy Efficiency

80PLUS Bronze

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

115 / 230 V

Input Frequency Range

47 - 63 Hz

Input Current

8A

Output+3.3V@22A,+5V@22A,+12V@48.75A,-12V@0.3A,+5VSB@2.5A

MTBF

100k hours at 25 C, max. load, nominal input

Approvals

UL, CB, CE, FCC, ROHS

Dimensions (H x W x D)

3.39" x 5.91" x 6.30"

Weight

5.5lbs

• 550 Watt Power Supply
• ATX12V v2.31 / EPS 12V v2.92 100 - 240V 50 / 60 Hz
• SLI Ready / CrossFire Ready / Intel 4th Gen CPU Certified
• 80 PLUS BRONZE Certified
• Full Modular Design
• Silent 135 mm Fan
• Strong Single +12V Rail

Manufacturer：Rosewill
MPN：HIVE-550
Classification：HIVE Series
Type：ATX12V v2.31 & EPS12V v2.92
Maximum Power：550W
Fans：1 x Silent 135mm Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
SATA Power Connector：8
SLI：SLI Ready
Haswell Support：Yes
CrossFire：CrossFire Ready
Modular：Full Modular
Power Good Signal：100-500ms
Hold-up Time：> 16ms
Efficiency：> 82%, Up to 87%
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：+3.3V, +5V, +12V
Input Voltage：115 / 230 V
Input Frequency Range：47 - 63 Hz
Input Current：8A
Output：+3.3V @ 22A, +5V @ 22A, +12V @ 41.25A, -12V @ 0.3A, +5VSB @ 2.5A
MTBF：100k hours at 25 Degrees Celsius, max. load, nominal input
Approvals：TUV, cTUVus, CE, FCC certified
Dimensions：3.39" x 5.91" x 6.30"
Connectors：Fixed Cable:
1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V / EPS12V Connector
Modular Cable:
2 x 6+2-Pin PCI-E Connector
8 x 5-Pin SATA Connector
4 x 4-Pin Peripheral Connector
2 x 4-Pin Floppy Connector
Features：80 PLUS BRONZE Certified

550 Watts Maximum Power

Single strong 12V rail - idea for Gaming system

SLI & CrossFire ready - 2 x 6+2pin Connector

1 x Silent 135mm Fan with auto fan speed control

Active-PFC with auto AC-input voltage adjustment (115 - 230V)

Mesh sleeve on all cables for easier cable routing and better ventilation

Over Temperature / Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit

Protection provide maximum safety to your critical system components

Safety & EMI Approval: UL, FCC, CE, CB, ROHS
