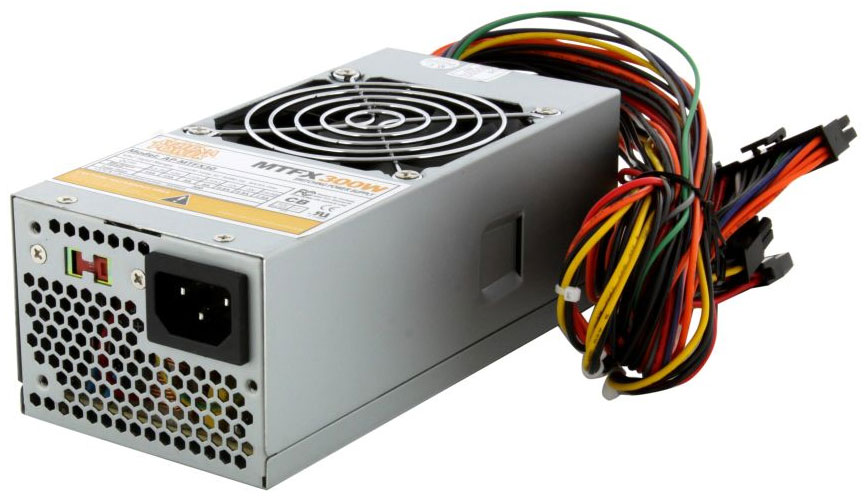

Athena Power AP-MTFX30 300W TFX Form Factor Power Supply
- Model: 9c8q8n
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
The Athena Power AP-MTFX30 TFX form-factor case is an ideal solution for space-limited conditions. It is also compatible with many brand-name systems. The Manual TFX 300 Watt PSU includes a 24-pin (20+4), P4-12V 4-pin, SATA II 15-pin, Molex 4-pin, and FDD 4-pin output connectors. This PSU also includes an internal 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation. With its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels of the PSU, it will adjust the fan speed automatically. And with this feature built in, you won't have to worry about your PSU's heat anymore.
- TFX12V
- 115 / 230 V
- 20+4Pin
Manufacturer：Athena Power
MPN：AP-MTFX30
Classification：300W TFX
Type：TFX12V
Fans：1 x 40mm ball-bearing fan with speed control
Main Connector：20+4Pin
PCI-Express Connector：No
Hold-up Time：17ms min.
Input Voltage：115 / 230 V
Input Frequency Range：50/60 Hz

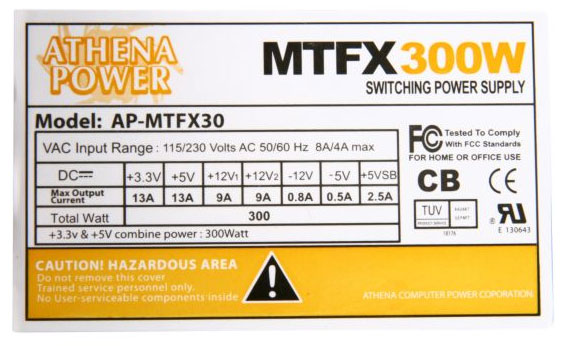

Output：+3.3V@13A, +5V@13A, +12V1@9A, +12V2@9A, -12V@0.8A, +5VSB@2.5A
MTBF：>100,000 Hours
Dimensions：3.4" x 2.5" x 7"
Weight：2.5 lbs.

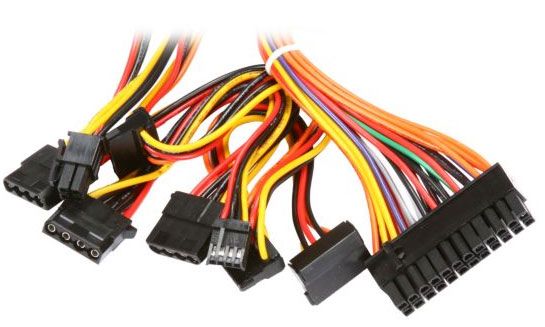

Connectors：ATX Connector 24 (20+4) Pin x 1
P4-12V 4-Pin x 1
Molex 4-Pin x 3
SATA 15-Pin x 3
Floppy 4-Pin x 1
Features：Designed for the TFX form factor to provide compact flexibility for small computer cases.
It is also compatible with many main brand systems.
Output connectors includes 24(20+4)pin, P4-12V 4pin, SATA II 15pin, Molex 4pin, and FDD 4pin.
Dielectric Withstand: Primary Frame Ground 1800V AC for 1 Second
Rise time: Less than 20ms
Temperature Range: Operating: 0 to +50 Celsius Degree on Full Load;
Storage & Shipping: -20 to +80 Celsius Degree
Humidity: 5% - 90% on Operating, 5% - 95% on Storage
