EVGA 100-B1-0450-K1 450W Bronze 80 Plus Power Supply
- Model: y8dgph
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
EVGA 450watt Bronze 450W 80Plus Bronze Power Supply. Designed with enthusiast needs in mind, EVGA power supplies are the best choice to power next generation enthusiast computers. The EVGA 450B Power Supply is here. Designed with enthusiast needs in mind. EVGA power supplies are the best choice to power next generation enthusiast computers. Combining 450W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the 450W power supply is what you need to take your system to the next level.
- Brand: EVGA
- Model: 100-B1-0450-K1
- Type: ATX
- Maximum Power: 450W
- Fans: 120mm Sleeve Bearing
- Main Connector: 24Pin
- PCI-Express Connector: 1 x 8-Pin (6+2)
- SATA Power Connector: 4
- Modular: No
- Efficiency: > 85%
- Over Voltage Protection: Yes
- Input Voltage: 100 - 240 V
- Input Frequency Range: 50/60 Hz
- Output: +3.3V@20A, +5V@20A, +12V@40A, +5VSB@3A, -12V@0.3A
- MTBF: >100,000 Hours
- Approvals: TUV, CB, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS
- Dimensions: 3.35" x 5.91" x 5.51"
- Weight: 5.00 lbs.
- Approvals: TUV, CB, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS
- Top Fans Size: 120mm
- Over Voltage Protection: Yes
- Over Current Protection: Yes
- Dimensions: 3.35" (H) x 5.91" (W) x 5.51" (L)
- Weight: 5.00 lbs.

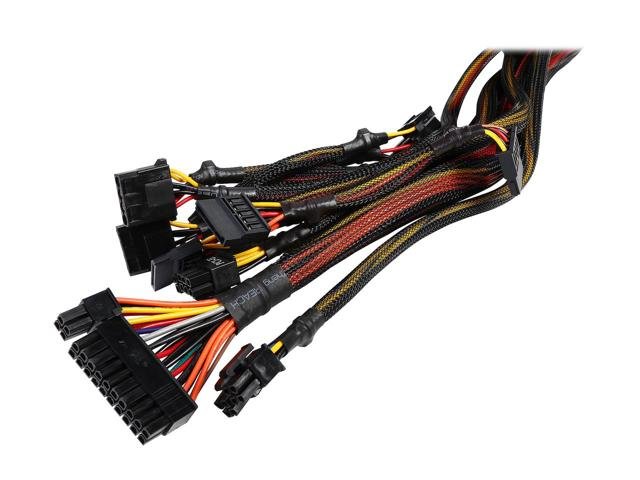

Connectors
- 1x 24-Pin ATX
- 1x 8-Pin (4+4) EPS (CPU)
- 1x 8-Pin (6+2) PCIE
- 4x SATA
- 3x FOUR-PIN PERIPHERAL
- 1x FLOPPY
- 80+ Bronze Certification
- ATX 450W
- 100 - 240 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V@35A, +5VSB@3A, -12V@0.3A
Manufacturer：EVGA
MPN：100-B1-0450-K1
Classification：450 B1
Type：ATX
Maximum Power：450W
Fans：120mm Sleeve Bearing Fan
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
Modular：No
Efficiency：> 85%
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：10 - 5A
Output：+3.3V@20A, +5V@20A, +12V@35A, +5VSB@3A, -12V@0.3A
MTBF：>100,000 Hours
Approvals：TUV, CB, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.35" x 5.91" x 5.51"
Weight：4.00 lbs.
Connectors：1 x 24-pin ATX
1 x 8-pin (4+4) EPS (CPU)
2 x 8-pin (6+2) PCIE
6 x SATA
3 x 4-Pin Peripheral
1 x Floppy
Features：Quiet and Intelligent Auto Fan for near-silent operation
80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
