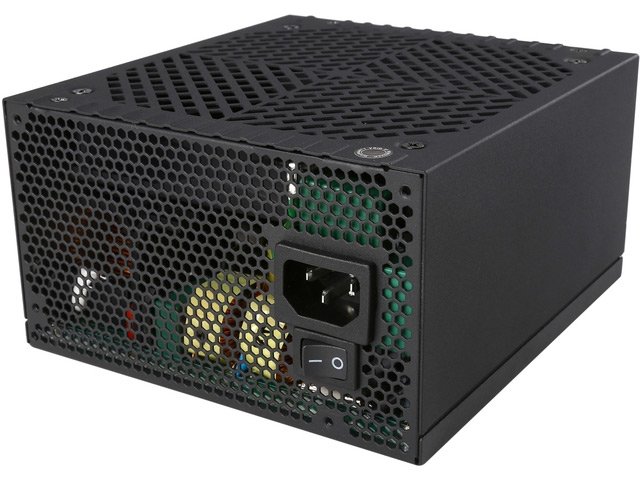

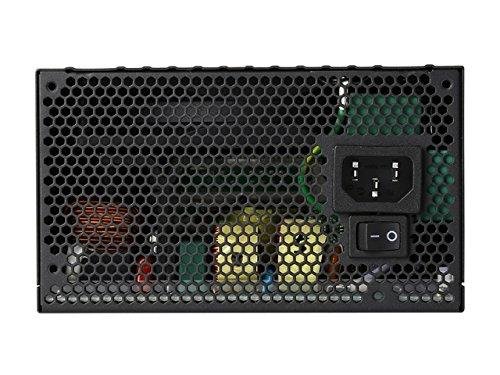

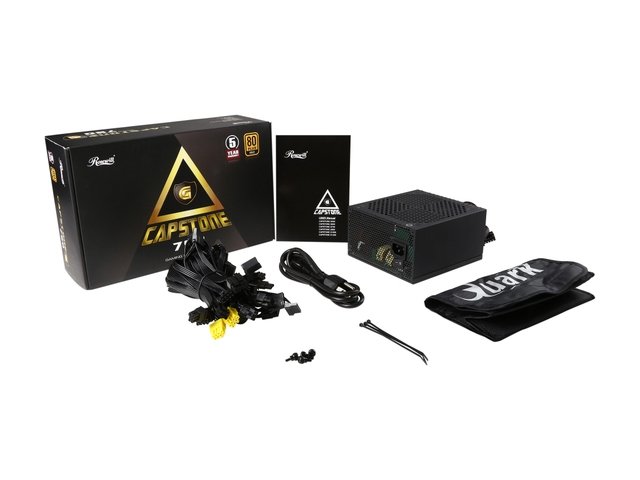

Rosewill Capstone G750 750W Modular Power Supply

The Capstone G750 is a very high performance 750 watt PSU from Rosewill that is perfect for any gamer or system builder. This is a nice power supply made by Rosewill as part of their Capstone line. The 750W of output is more than enough for most personal computers and the 135mm cooling fan runs nearly silent. This unit has a large number of connectors (total of 8 connectors and 20+4 Main connector). This power supply provides plenty of room for growth is 80 PLUS GOLD Certified for ultra efficient performance and low power loss. This 750w power supply fits a standard ATX case and measures 6 3/8" x 3.5" x 6" and comes with two EPS12V CPU plugs, two PCIe power connectors, 8 x SATA devices / 4 x Molex plugs and one floppy power plug. You'll expect flawless performance and your build will have more than enough power no matter what chip you go with (Haswell, Skylake, FX, etc.

• 750 Watts of continuous power
• 80 PLUS Gold Certified
• 1 x Silent 135mm Fan

Model

Capstone-G750

Type

ATX12V & EPS12V

Maximum Power

Continuous 750W@40°C

Fans

1 x Silent 135mm Fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

4 x 6+2-Pin

SLI

Yes

CrossFire

Yes

Modular

Semi-Modular

Efficiency

> 85%

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50 - 60 Hz

Input Current

10A-5A

Output

+3.3V@20A,+5V@18A,+12V@62A,-12V@0.3A,+5VSB@2.5A

MTBF

>100,000 hours

Dimensions

3.39" x 5.91" x 6.30"

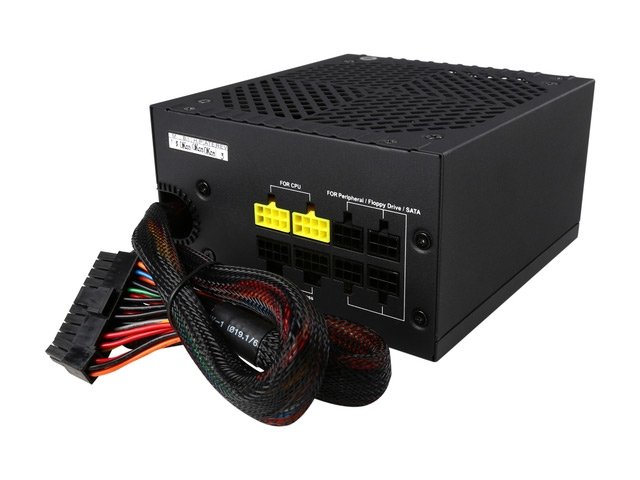

Connectors (Fixed)

1 x 20+4-Pin Main Connector

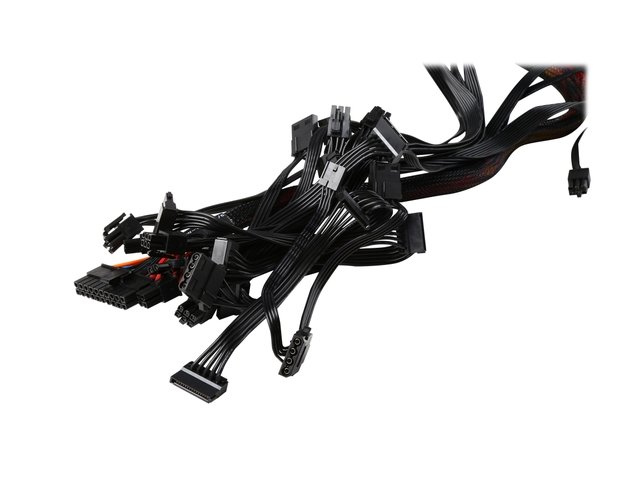

Connectors (Modular)

2 x 4+4-Pin ATX12V/EPS12V Connector

4 x 6+2-Pin PCI-E Connector

8 x SATA Connector

4 x 4-Pin Peripheral Connector

1 x 4-Pin Floppy Connector

• ATX12V v2.31 / EPS12V v2.92
• 100 ~ 240V
• 80 PLUS Gold Certified
• Efficiency up to 92%
• 140 mm Silent Fan
• 7-Year Warranty

Manufacturer：Rosewill
MPN：CAPSTONE-650
Classification：CAPSTONE Series
Type：ATX12V v2.31 & EPS12V v2.92
Maximum Power：Continuous 650W @ 50 degree C
Fans：1 x Silent 140mm Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：4 x 6+2-Pin
SATA Power Connector：8
SLI：SLI Ready
Haswell Support：Certified
CrossFire：CrossFire Ready
Modular：Non-Modular
Power Good Signal：100-500ms
Hold-up Time：> 16ms
Efficiency：> 87%, Up to 92%
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：+3.3V, +5V, +12V
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：10A
Output：+3.3V@24A, +5V@22A, +12V@54A, -12V@0.5A, +5VSB@3A
MTBF：100k hours at 25 degree C, max. load, nominal input
Approvals：cTUVus, FCC, CE, ROHS
Dimensions：5.91" x 3.39" x 6.42" (W x H x D)
Connectors：1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V / EPS12V Connector
4 x 6+2-Pin PCI-E Connector
5 x 4-Pin Peripheral Connector
8 x 5-Pin SATA Connector
1 x 4-Pin Floppy Connector
Features：80 PLUS GOLD Certified

Intel Haswell CPU Ready

Continuous 650W @ 50 degree C

Single strong 12V rail - idea for Gaming system

SLI & CrossFire Ready - 4 x 6+2pin Connector

1 x Silent 140mm Fan with Auto Fan Speed Control for better silence

Active-PFC with auto AC-input voltage adjustment (100-240V)

Mesh sleeving on all cables for easier cable routing and better ventilation

Over Temperature / Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components

Safety & EMI Approval: cTUVus, FCC, CE, ROHS
