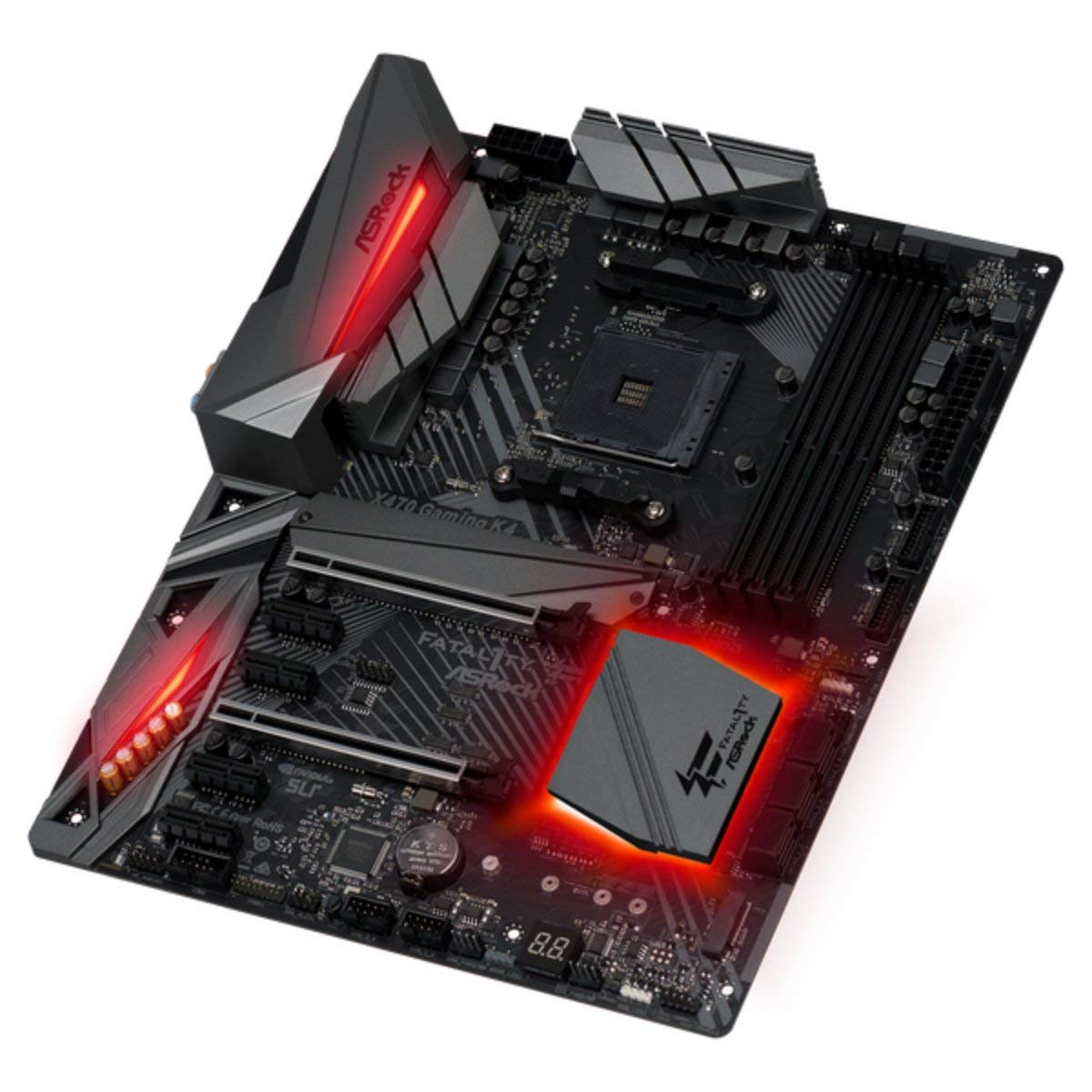

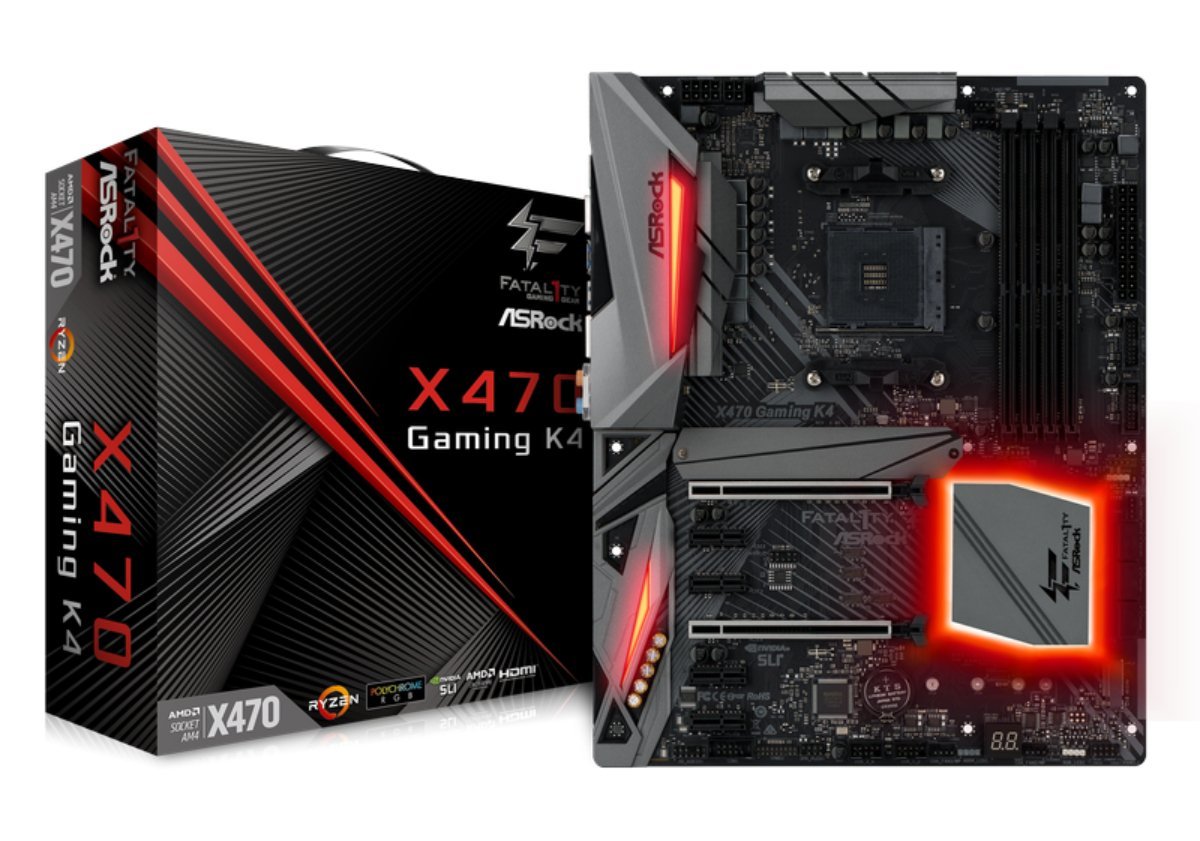

ASRock Fatal1ty X470 Gaming K4 AM4 AMD Promontory X470 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

A new world of cinematic audio that delivers unprecedented levels of audio realism dynamics and punch to gaming sound. 7.1 CH HD audio with Realtek ALC1220 audio codec that brings a truly immersive audio experience up to 120dB SNR. A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best. The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

• AMD Promontory X470
• Supports AMD AM4 Socket Ryzen Series Processors (Summit Ridge, Raven Ridge & Pinnacle Ridge)
• Supports DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133* for all compatible CPUs


Manufacturer：ASRock
Classification：Fatal1ty
MPN：X470 Gaming K4
CPU Socket Type：AM4
Processor Type：Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Chipset：AMD Promontory X470
Number of Memory Slots：4×288pin
Memory Standard：AMD Ryzen series CPUs (Pinnacle Ridge, Summit Ridge and Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133*

* For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported：64GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))

PCI Express x1：4 x PCI Express 2.0 x1 Slots
Other Slots：15? Gold Contact in VGA PCIe Slot (PCIE1)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2 (Key M)：1 x Ultra M.2 Socket (M2_1), type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*
1 x M.2 Socket (M2_2), type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x2 (10Gb/s)*

* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Max. shared memory 4GB
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with HDMI Port
Supports 4K Ultra HD (UHD) playback with HDMI Port

* Actual support may vary by CPU
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps

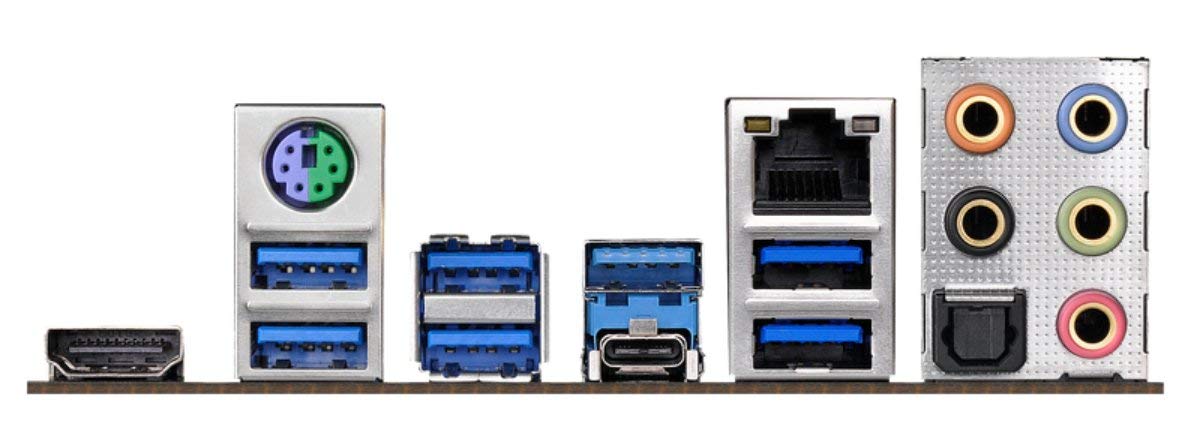

PS/2：1 x PS/2 keyboard/mouse port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen2 Type-A Port (10Gb/s)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s)
6 x USB 3.1 Gen1 Ports
* 1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors：1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x AMD Fan LED Header*
1 x RGB LED Header**
1 x Addressable LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin)*****
3 x Chassis/Water Pump Fan Connectors (4-pin)******
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
1 x Dr. Debug with LED

* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
** Supports in total up to 12V/3A, 36W LED Strip.
*** Supports in total up to 5V/3A, 15W LED Strip.
**** The CPU Fan Connector supports the CPU fan of maximum 1A (12W)
***** The CPU/Water Pump Fan and Chassis/Water Pump fan supports the water cooler fan of maximum 2A (24W)
****** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
******CPU/Water Pump Fan Connector and Chassis/Water Pump Fan Connectors (Smart Fan Speed Control)
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Connector (Hi-Density)：1 x 24-pin ATX
1 x 8-pin 12V
1 x 4-pin 12V
Features：Gaming Armor:
Power
- Hi-Density Power Connectors (24-pin, 8-pin and 4-pin)
Memory
- 15? Gold Contact in DIMM Slots
VGA Card
- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel LAN
Cooling
- 2oz Copper PCB
Audio
- Creative Sound Blaster Cinema 5

Unique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 45A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 256MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment

Software and UEFI:
Software
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
* These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor (CPU, CPU/Water Pump, Chassis/Water Pump Fans):
Temperature Sensing
Fan Tachometer
Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
Fan Multi-Speed Control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP

OS:
- Microsoft Windows 10 64-bit
