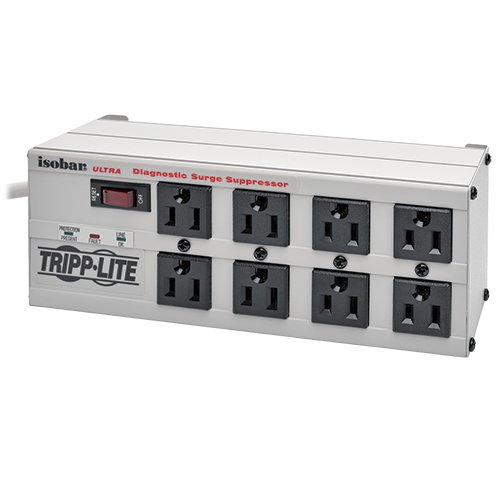

Tripp Lite ISOBAR825ULTRA Isobar Ultra Surge Protector

Premium protection for essential network workstations, telecom systems, point-of-sale equipment and audio/video systems, the ISOBAR825ULTRA Isobar 8-Outlet Surge Protector features a network-grade surge protection rating of 3840 joules to defend your sensitive electronics against even the strongest surges and spikes. The ISOBAR825ULTRA features eight widely spaced NEMA 5-15R outlets, which are arranged in four exclusive isolated filter banks that prevent equipment connected to one bank from interacting with equipment connected to another. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems. Because residential power outlets have three wiresa??hot line (H), neutral (N) and ground (G)a??the ISOBAR825ULTRA protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G). Included safety covers protect against dust while blocking accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected components. Diagnostic LEDs show power, protection and line fault status at a glance. An extra-long 25-foot cord with right-angle 5-15P plug reaches distant outlets and allows furniture to placed flush against the wall.

• 8 NEMA 5-15R outlets in exclusive isolated filter banks
• Network-grade 3840-joule surge protection rating
• Durable metal housing designed for tough environments
• 12A resettable circuit breaker prevents dangerous overloads
• 25 ft. AC power cord with right-angle NEMA 5-15P plug
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: (8) 5-15R
• Output (Watts): 1440
• Circuit Breaker (amps): 12
• Transformer Accommodation: Supports up to 4 large transformer plug accessories without covering remaining outlets
• Right-Angle Outlets: No
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Connection Type: NEMA 5-15P input plug
• Input Plug Features: Space-saving right angle input plug
• Input Cord Length (ft.): 25
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 150000
• Right-Angle Plug: Yes
• Switches: Combination AC circuit breaker and two position red illuminated on/off power switch
• Diagnostic LED Details: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
• AC Suppression Joule Rating: 3840
• AC Suppression Response Time: NM = 0 ns. CM = <1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• Clamping Voltage (RMS): 140
• AC Suppression Surge Current Rating: 97,000 amps (36,000 NM / 61,000 CM)
• AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
• Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
• UL1449 Let Through Rating: 330V
• IEEE587 Cat. A Ringwave Let-Through: Less than 35 volts
• EMI / RFI Filtering: 40-80 dB
• Isolated Filter Banks: Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 4 filter banks.
• Immunity: Conforms to IEE 587 / ANSI C62.41
• Telephone/DSL Protection: No
• Cable (Coax) Protection: No
• Network (Ethernet) Protection: No
• Unit Dimensions (hwd / in.): 2.5 x 9 x 3.50
• Unit Weight (lbs.): 3.3
• Material of Construction: Metal

• 25 Feet
• 8 Outlets
• 3840 joules
• 1440 Watts

Manufacturer：TRIPP LITE
Classification：Isobar
MPN：ISOBAR825ULTRA
Outlets：8 & 25 Feet Cord
Outlets Type：NEMA 5-15R
Input Voltage：120V
Input Connections：NEMA 5-15P input plug
Voltage Compatibility：120V AC
Output Watt Capacity：1440 Watts
Maximum Spike Amperage：150000 Amps
AC Suppression Joule Rating：3840 Joules
EMI/RFI Noise Filter：40 - 80dB
Clamping Voltage：140 Volts - RMS
Protection Modes：Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Certifications：Additional International Approvals: RoHS
UL1449 3rd Edition (AC Suppression): Tested to UL1449 3rd Edition by ETL
cUL / CSA (Canada): Approved for Canada by ETL
Approvals: Exceeds IEEE 587 category A&B specifications
Color：Light Gray
Features：8 outlets / 25-ft. cord

3840 Joules rating

All metal housing with LEDs

Isolated filter banks
Unit Dimensions：2.50" x 9.00" x 3.50"
Unit Weight：3.30 lbs.

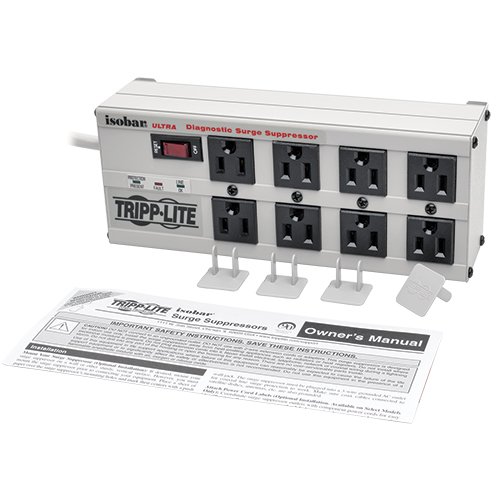

Package Includes：ISOBAR825ULTRA Surge Suppressor
Set of 4 outlet safety covers
Instruction manual with warranty information
