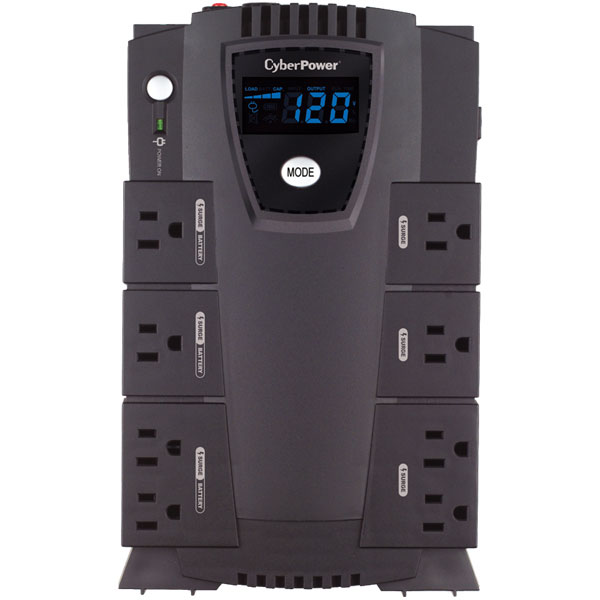

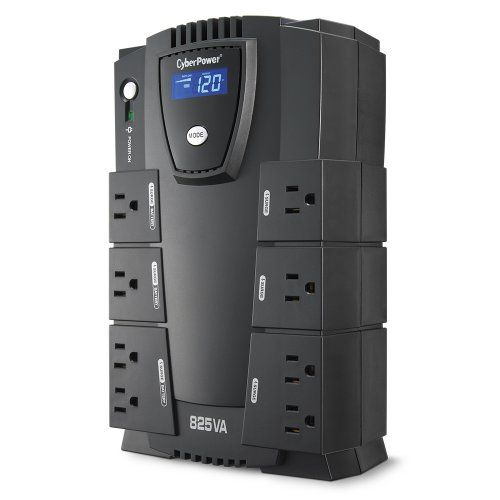

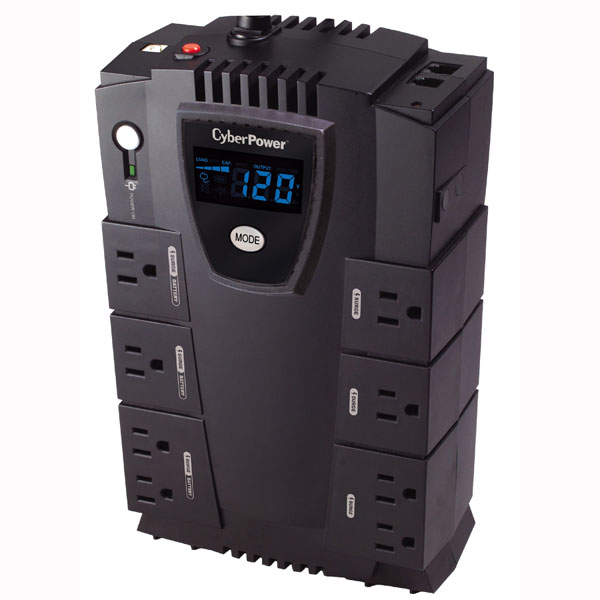

CyberPower CP825LCD 825VA / 450W 8-Outlet UPS

Safeguard even mid-range and high end desktop computer systems with the Cyberpower Intelligent LCD uninterruptible power supply! Not only does this UPS guard against power surges and spikes, but it also provides battery backup in the event of rolling blackouts. With the multi-function LCD panel, you'll get real-time vital statistics for easy of management. Offering protection for USB and RJ45 connections as well, you'll have an all-around power protection solution! 825VA CP LCD UPS. The CyberPower Intelligent LCD CP825LCD uninterruptible power supply (UPS) safeguards mid- to high-end computer systems against surges/spikes and offers battery backup in the event of brownouts or blackouts. The CP825LCD unit has a capacity of 825VA/450Watts, eight (8) NEMA 5-15R receptacles, including four (4) fail-safe outlets for critical loads. The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB port, as well as protection for phone/network (RJ11/RJ45) and cable/coax (RG-6). It has one (1) maintenance-free, user-replaceable 12V/8.5Ah battery and includes EMI/RFI filters to increase the immunity of the load to disturbances and surges. PowerPanel Personal Edition UPS Management software automatically closes computer files and safely shuts down the system in case of a power outage. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $225,000 Connected Equipment Guarantee. CyberPower Home and Office Series UPS CP825LCD, 825VA/450W, USB, w/ LCD and PowerPanel Personal Edition Software.

CyberPower CP825LCD

Voltage

100Vac - 140Vac

Plug Type

NEMA 5-15P

Typical Recharge Time

8 Hours

Runtime at Half Load (min)

8

Runtime at Full Load (min)

2

Intelligent LCD Display

View your current / load level, runtime, battery level, and more!

USB Management

Hook to your desktop via USB to access your operating system's power management features!

CyberPower CP825LCD

UPS Topology

Standby

Input Voltage

100Vac - 140Vac

Frequency

60Hz +/- 3Hz

Plug Type

NEMA 5-15P

Plug Style

Right angle

Cord Length

6'

VA

825

Watts

450

On Battery Voltage

120Vac +/- 5%

On Battery Frequency

60Hz

On Battery Waveform

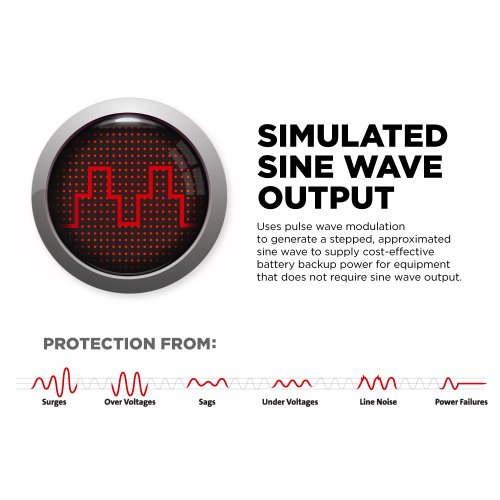

Simulated Sine Wave

Overload Protection

Internal circuitry limiting / circuit breaker

Outlets - Total

8

Outlet Type

NEMA 5-15R

Outlets - Battery & Surge Protected

4

Outlets - Surge-Only Protected

4

Outlets - Widely Spaced

4

Transfer Time

4ms

Runtime at Half Load (min)

8

Runtime at Full Load (min)

2

Battery Type

Sealed lead acid

Battery Size

12V/8.5AH

User Replaceable

Yes

Typical Recharge Time

8 Hours

Replacement Battery

BB Battery - HR1234W

Battery Quantity

1

Surge Suppression

1,030 Joules

Maximum Surge Current

39,000 Amps

Phone / Ethernet RJ11 / RJ45

1-In, 1-Out (Combo)

Multifunction LCD Diagnostic Display

Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, Input Voltage, Output Voltage, Battery In Use, Overload, Silent Mode, Normal Mode

USB Port

Yes

HID Compliant USB Port

Yes

Management Cable

USB Cable

LED Indicators

Power on, wiring fault

Audible Alarms

On battery, low battery, overload

Software

PowerPanel Personal Edition

Form Factor

Compact

Dimensions (WxHxD)

11" x 6.5" x 3.5"

Weight (lbs.)

15

Keyhole Mounting Slots

Yes

• 825VA / 450W Simulated Sine Wave UPS
• 8 Outlets / USB Port
• RJ11/RJ45 Protection
• Full-time Surge Protection and Battery Backup
• Multifunction LCD Display
• Compact Desktop Form Factor

Manufacturer：CyberPower
Classification：Intelligent LCD Series
MPN：CP825LCD
Input Voltage Range：90 - 140 Volts AC
Input Frequency：57 - 63 Hz
VA Rating：825 VA
Watts：450 Watts
Output Voltage：120Vac +/- 5%
Outlets：4 x 5-15R Battery/Surge Protected
4 x 5-15R Surge Protected
Battery Run Time：Entry-level PC with 19" LCD (150W) - 12 min.
Midrange PC with 19" LCD (300W) - 5 min.
Battery Recharge Time：8 Hours
Interface Port：USB
Management Software：PowerPanel Power Management
Approvals：FCC Class B certified, cUL, UL 1778
Data Line Protection：1 x RJ11/45 Combo (One-in/One-out)
Surge Energy Rating：1030 Joules
Features：Intelligent LCD Diagnostic Display:The innovative front panel LCD can be used to display detailed information on the UPS status and current power conditions. The LCD displays 10 different diagnostics: Input Voltage Level, Output Voltage Level, Battery Capacity, Runtime, Load
Level, Output Power Frequency, On Battery, Overload, Wiring Fault, and Silent Mode.
EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals.Most commonly, this is used to prevent line noise or "humming" that occurs over telephone lines or stereo electronics.
Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets.
USB Connectivity - HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
PowerPanel PE Smart Management Software - In event of a power outage, PowerPanel PE will not only save your open files and will also "Hibernate" your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources.Diagnostic screens give immediate visuals of the UPS status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
Audible Alarms - Audible tones identify when the unit is running off battery power, unit overloads and low battery.
Convenient Mounting - Multiple mounting options: horizontal, vertical,cabinet, and wall.
Resettable Circuit Breaker - Convenient unit reset switch in case of an overload.
Dimensions：11" x 6.5" x 3.5"
Weight：13.5 lbs
Package Includes：CP825LCD UPS
Power Management Software
RJ11 Cable
USB Cable
User Manual
Electrical Outlet Plug Type：Plug Type “A” (USA, Canada, Mexico, Japan)
