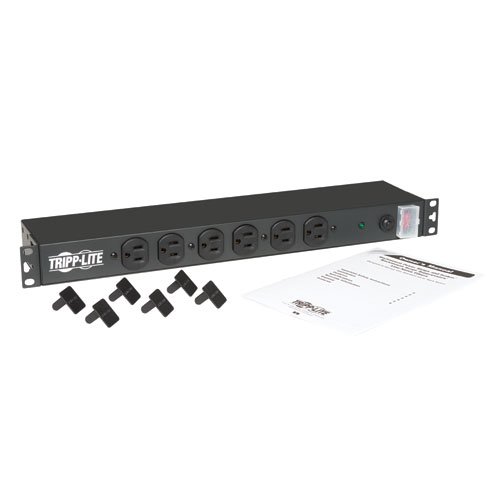

Tripp Lite Drs-1215 12 Outlet 15A Rm Surge Protected Power Strip

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.

• Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
• Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
• 3000 joules AC surge suppression with EMI/RFI filtering
• 14 NEMA 5-15R output receptacles (6 front/8 rear)
• 15 foot AC cord with NEMA 5-15P straight-in plug connection
• Diagnostic LED confirms suppressor operation
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 15 amp capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: (14) 5-15R
• Output (Watts): 1800
• Circuit Breaker (amps): 15
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Connection Type: NEMA 5-15P input plug
• Input Cord Length (ft.): 15
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 120000
• Right-Angle Plug: No
• Switches: Power switch controls power to all outlets
• Diagnostic LED Details: Green - Protection Present
• Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff
• AC Suppression Joule Rating: 3000
• AC Suppression Response Time: < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• Clamping Voltage (RMS): 140
• Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
• UL1449 Let Through Rating: 330V
• EMI / RFI Filtering: 40-80 dB
• Immunity: Conforms to IEE 587 / ANSI C62.41
• Telephone/DSL Protection: No
• Cable (Coax) Protection: No
• Network (Ethernet) Protection: No

• 15 ft.
• 14 Outlets
• 3000 joules
• 1800 Watts

Manufacturer：TRIPP LITE
MPN：DRS-1215
Outlets：14
Outlets Type：6 front NEMA 5-15R / 8 rear
Cord Length：15 ft.
Voltage Compatibility：120V AC
Output Watt Capacity：1800 Watts
AC Suppression Joule Rating：3000 joules
EMI/RFI Noise Filter：40-80 dB
Clamping Voltage：140 Volts - RMS
Protection Modes：Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Color：Black
Specification：TRIPP LITE DRS-1215 14-Outlet Rack-Mount Surge Protector
Features：Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options

Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)

3000 joules AC surge suppression with EMI/RFI filtering

14 NEMA 5-15R output receptacles (6 front/8 rear)

15 foot AC cord with NEMA 5-15P straight-in plug connection

Diagnostic LED confirms suppressor operation

Lighted power switch confirms power on/off status

Snap-in switch guard prevents accidental turn off

15 amp capacity with circuit breaker

120V AC, 50/60Hz electrical compatibility
Unit Dimensions：1.75" x 17.5" x 4"
Unit Weight：5.5
