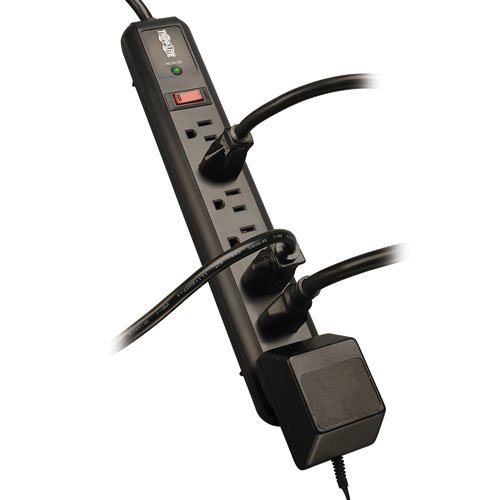

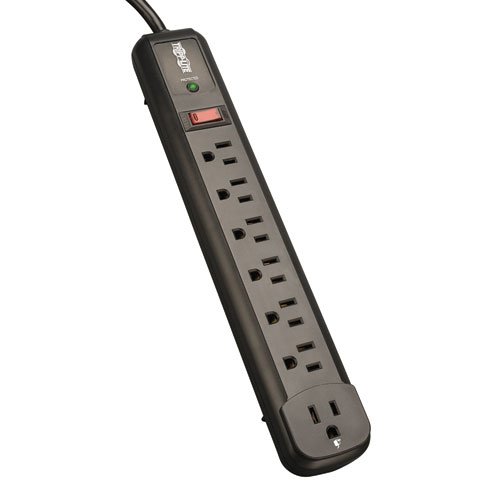

Tripp Lite TL P74 RB Surge Protector Power Strip TL P74 RB 120V Right Angle 7 Outlet Black

Perfect for your home or office workstation, the TLP74RB Protect It!a 7-Outlet Surge Protector features a surge protection rating of 1080 joules to defend your sensitive electronic components against strong surges and spikes. Because residential power outlets have three wiresa"hot line (H), neutral (N) and ground (G)a"the TLP74RB protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss. Your devices plug into six NEMA 5-15R outlets placed at a right angle to simplify cord management. Another outlet is placed at the end to accept a bulky transformer without blocking adjacent outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. A diagnostic LED confirms your connected equipment is protected. The four-foot AC power cord with NEMA 5-15P plug reaches nearby outlets to fit easily into your workstation or home theater setup. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.

• 6 right-angle NEMA 5-15R outlets (7 total)
• 1080-joule surge protection rating
• Filters out threatening EMI/RFI line noise
• 15A resettable circuit breaker prevents dangerous overloads
• 4 ft. AC power cord with NEMA 5-15P plug
• Frequency Compatibility: 60 Hz
• Output Receptacles: (7) 5-15R
• Output (Watts): 1800
• Circuit Breaker (amps): 15
• Transformer Accommodation: Supports 1 large transformer plug accessory without covering remaining outlets
• Outlet Orientation: Single row
• Right-Angle Outlets: Yes
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Connection Type: NEMA 5-15P
• Input Cord Length (ft.): 4
• Input Cord Gauge Type: 14 gauge, SJT
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 36000
• Right-Angle Plug: No
• Switches: Combination AC circuit breaker and 2 position on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
• AC Suppression Joule Rating: 1080
• AC Suppression Response Time: < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
• Clamping Voltage (RMS): 150
• UL1449 Let Through Rating: 400V
• Telephone/DSL Protection: No
• Cable (Coax) Protection: No
• Network (Ethernet) Protection: No
• Unit Dimensions (hwd / in.): 1.33 x 2.04 x 12.4
• Unit Weight (lbs.): 1.04
• Material of Construction: Plastic

• 7 Outlets

Manufacturer：TRIPP LITE
Classification：Protect It!
MPN：TLP74RB
Outlets Type：NEMA 5-15R
Cord Length：4.0 Feet
Input Voltage：120V
Input Connections：NEMA 5-15P
Voltage Compatibility：110 V AC- 125 V AC
Output Watt Capacity：1800 Watts
AC Suppression Joule Rating：1080 joules
Clamping Voltage：150 Volts - RMS
Protection Modes：Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Certifications：UL1449 3rd Edition
UL1363
cUL
Exceeds IEEE 587 category A&B specifications
Color：Black
Specification：Output
Frequency Compatibility: 60 Hz
Transformer Accommodation: Supports 1 large transformer plug accessory without covering remaining outlets
Outlet Orientation: Single row

Input
Input Cord Gauge Type: 14 gauge, SJT
Maximum Surge Amps: 36000

Switches: Combination AC circuit breaker and 2 position on/off power switch

Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status

AC Suppression Response Time: < 1 ns

UL1449 Let Through Rating: 400V
Features：1080 joules AC surge suppression shields equipment from the strongest surges and line noise

7 total AC outlets (6 right angle and 1 transformer plug outlet)

4 foot AC line cable

Attractive black housing

Lighted on/off switch with integrated circuit breaker for overload protection of all outlets

Diagnostic LED confirms surge suppression status

Integrated keyhole slots provide convenient wall/desk mounting

UL1449 3rd Edition Rated (400V all modes), UL1363 (Power Tap), cUL (Canada)

Exceeds IEEE 587 category A & B surge suppression specifications
Unit Dimensions：1.33" x 2.04" x 12.4" (H x W x D)
Unit Weight：1.04 lbs.
