Creative SB1500 Sound Blaster Z SBX PCI Express Sound Card w/ Mic
- Model: dsxjam
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

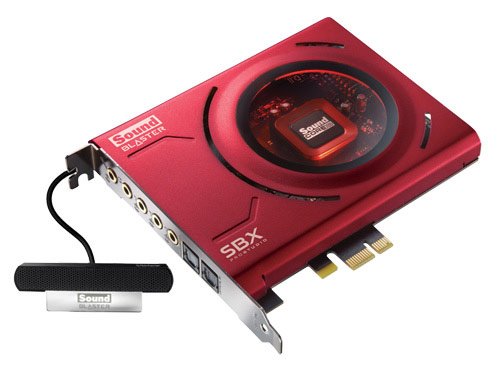

This Creative SB1500 Sound Blaster PCI-E x1 Sound Card will give clear and crisp audio for your speakers and headset. Connect your sound system through the 5 audio jacks or use the S/PDIF I/O. The Sound Blaster Z is part of the ultra high-performance Z-Series of Sound Blaster PCI-Express sound cards. Sound Blaster Z is an ideal all-around gaming and entertainment solution that incorporates the features of the Sound Blaster Zx card and comes with an external high-quality beam-forming microphone array.
- Switch Between Headphones and Speakers by using the Sound Blaster Z-series Control Panel
- Sound Core3D Audio Processor
- Beamforming Sound Blaster Micrphone
- Output Level (Full Scale)
- Front Channel Out: 2Vrms
- Headphone (33 ohms): 1.3Vrms
- Headphone (600 ohms): 2Vrms
- Maximum DAC Resolution
- Front Channel Out: 24-bit, 192kHz
- Headphone (33 ohms): 24-bit, 96kHz
- Headphone (600 ohms): 24-bit, 96kHz
- SNR (20kHz Low-pass filter, A-Wgt), @ 24-bit, 96kHz
- Front Channel Out: 116dB
- Headphone (33 ohms):>105dB
- Headphone (600 ohms):>105dB
- Frequency Response @ 96kHz
- Front Channel Out: 10Hz to 45kHz
- Rear Channel Out: 15Hz to 45kHz
- Center Out: 10Hz to 45kHz
- Headphone (33 ohms): 10Hz to 45kHz
- Frequency Response @ 192kHz(Stereo only)
- Front Channel Out: 10Hz to 88kHz
- Supported Output
- Stereo/2.1 Speakers
- 5.1 Speakers
- Headphones
- Headphone
- 1 x Amplified 1/8" mini jack
- Speaker Out
- 3 x 1/8" mini jacks
- Optical Out
- TOSLINK
- Optical In
- TOSLINK
- Line In / Microphone In
- Shared 1/8" mini jack
- System Requirements
- Intel Core?2 Duo or AMD equivalent processor, 2.2GHz or faster
- recommended.
- Intel, AMD or 100% compatible motherboard
- Microsoft Windows 8 (32/64-bit) ; Windows 7 (32/64-bit)
- 1GB RAM
- >600 MB of free hard disk space
- Available PCI Express (x1, x4 or x16) slot
- Available CD-ROM or DVD-ROM drive
Speaker Support
Connectivity
- PCI Express x1, 5.1 Channels
- TOSLink Optical Input and Output
- Sound Core 3D Processor
- Beamforming Microphone
Manufacturer：Creative
Classification：Sound Blaster
MPN：Z
Part：70SB150000000
Audio Chipset：Sound Core3D
Channels：5.1
Sample Rate：192KHz
Digital Audio：24-bit
SNR：116dB
Line In：1 x 3.5 mm jack
Line Out：3 x 3.5 mm jacks (Front, Rear, C/Sub)
SPDIF In：1 x TOSLINK
Other Ports：Headphone: 1 x Amplified 3.5 mm jack
Interface：PCI Express x1
Operating Systems Supported：Microsoft Windows 10 (32-bit / 64-bit); Windows 8 (32-bit / 64-bit); Windows 7 (32-bit / 64-bit)
System Requirements：Intel Core 2 Duo or AMD equivalent processor, 2.2 GHz or faster recommended
Intel, AMD or 100% compatible motherboard
1 GB RAM
> 600 MB of free hard disk space
Available PCI Express (x1, x4 or x16) slot
Available CD-ROM or DVD-ROM drive
Features：116dB Signal-To-Noise Ratio
SBX Pro Studio technologies
Crystal clear communication
Sound Blaster Beamforming Microphone
Sound Core3D audio processor
Pristine audio recordings with ultra low latency
24-bit / 192KHz audio output
Advanced home entertainment audio
High fidelity multi-channel surround
Never unplug your headphones again
Dimensions：0.91" x 5.35" x 4.98"
Weight：0.40 lb.
Package Includes：Sound Blaster Z sound card
Sound Blaster Beamforming Microphone
Quick Start leaflet
Installation CD containing: Drivers for Windows, Creative software suite, User's Guide
