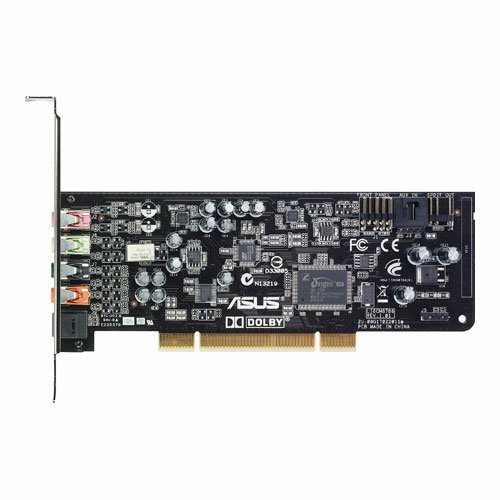

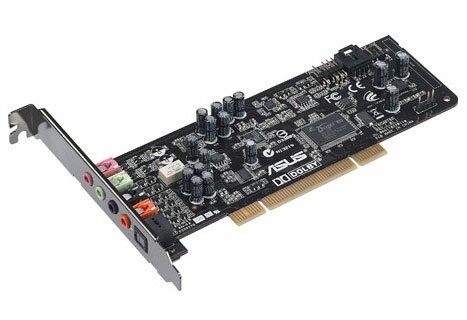

Asus Xonar DG Dolby 5.1 For Headphone PCI Sound Card

The Asus Xonar DG Sound Card is your key to accessing incredible, unprecedented sound in your 5.1 surround sound gaming headphones. Compatible with all Dolby 5.The Xonar DG sound card combines Dolby Headphone 5.1 high definition surround with ASUS own GX 2.5 gaming audio engine and an on-board headset amplifier. These result in accurate and deep audio that brings every nuance and sound across fully, making the new Xonar DG an ideal sound card for gamers who want to remain totally aware of their play environments.

Asus XONAR DG

Channels

Dolby 5.1 Surround Sound

3D Audio

Yes

Sound Modes

VOIP Mode

Exciter Mode

Pro Gaming Mode

Asus XONAR DG Sound Card

Dolby High-Definition Sound

Get full Dolby 5.1 Surround Sound in your surround-sound capable headphones with the ASUS GX 2.5 Gaming Audio Engine

Built-In Headphone AMP

Enhances all sound details, low and high, to create equal sound across the board and make every detail crystal-clear

Audio Performance

Output Signal-to-Noise Ratio (A-Weighted)

105 dB

Input Signal-to-Noise Ratio (A-Weighted)

103 dB

Output THD+N at 1kHz

0.0025% (-92dB)

Input THD+N at 1kHz

0.0022% (-93dB)

Frequency Response (-3dB, 24-bit/96kHz input)

<10Hz to 48kHz

Output/Input Full-Scale Voltage

1Vrms (3Vp-p)

Bus Compatibility

PCI

PCI v2.2 or above bus compatible

Main Chipset

High Fidelity Headphone Amplifier

Optimized for 32~150Ω Audio Processor

C-Media CMI8786 High-Definition Sound Processor (Max. 96KHz/24bit)

24-bit D-A Converter of Digital Sources

Cirrus Logic CS4245*1 (104dB DNR, Max. 192KHz/24bit) / Cirrus Logic CS4361*1 (103dB DNR, Max. 192KHz/24bit)

24-bit A-D Converter for Analog Inputs

Cirrus Logic CS4245*1 (104dB DNR, Max. 192KHz/24bit)

Sample Rate and Resolution

Analog Playback Sample Rate and Resolution

44.1K/48K/96KHz @ 16/24bit for all channels

Analog Recording Sample Rate and Resolution

44.1K/48K/96KHz @ 16/24bit

S/PDIF Digital Output

44.1K/48K/96KHz @ 16/24bit, Dolby Digital, DTS, WMA-Pro

ASIO 2.0 Driver Support

44.1K/48K/96KHz @ 16/24bit

I/O Ports

Analog Output Jack

3.50mm mini jack *3 (Front/Side/Center-Subwoofer)

Analog Input Jack

3.50mm mini jack *1 (Line-In/Mic-In)

Other line-level analog input (for CD-IN/TV Tuner)

Aux-In (4-pin header on the card)

Digital S/PDIF Output

High-bandwidth

Optical Connector supports 96KHz/24bit

Additional SPDIF-out header for HDMI audio output

Front-Panel Header

Supports headphone jack-detection, automatically switch audio output from back-panel to front

• PCI v2.2, 5.1 Channels
• Dolby Headphone for an immersive 5.1 surround imaging
• GX2.5 for realistic 3D audio effects
• 3 gain modes for different usage scenarios

Manufacturer：ASUS
MPN：Xonar DG
Audio Chipset：C-Media CMI8786
Channels：5.1
Sample Rate：96KHz
Digital Audio：24-bit
SNR：105dB
Line In：1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Line Out：3 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out)
SPDIF Out：1 x S/PDIF out (1 x Optical (Toslink))
MIC In：1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
CD/Aux In：1 x Aux-in (4-pin header)
Other Ports：1 x Front-Panel Header
1 x S/PDIF Header
Interface：PCI
Features：Built-in Headphone AMP

Powers up every sound detail in gaming

3 gain modes for different usage scenarios

Dolby Headphone for an immersive 5.1 surround imaging

GX2.5 for realistic 3D audio effects
Dimensions：6.71" x 2.54" ( L x W )
Weight：0.75

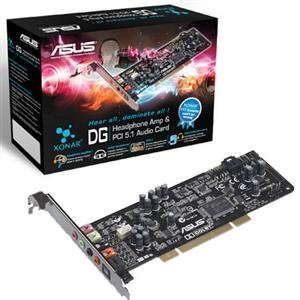

Package Includes：Xonar DG
Low -profile Bracket x 1
Driver CD x 1
Quick Start Guide x 1
Electrical Outlet Plug Type：Other Accessories
