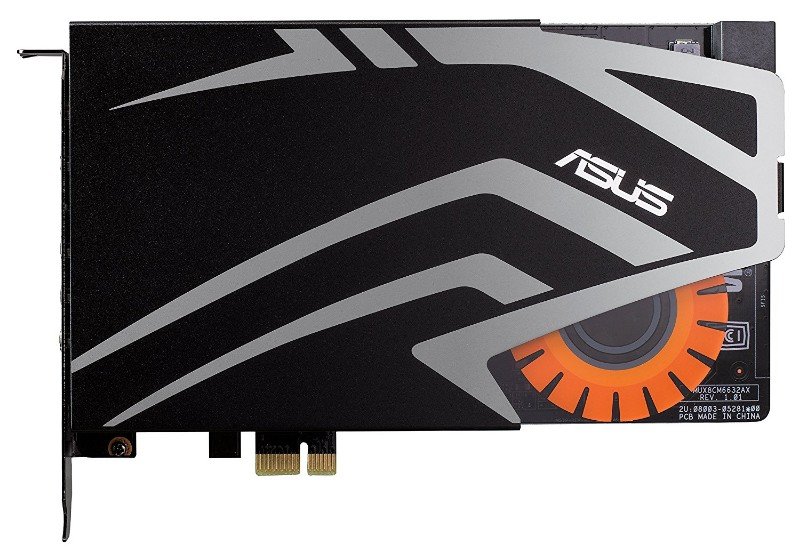

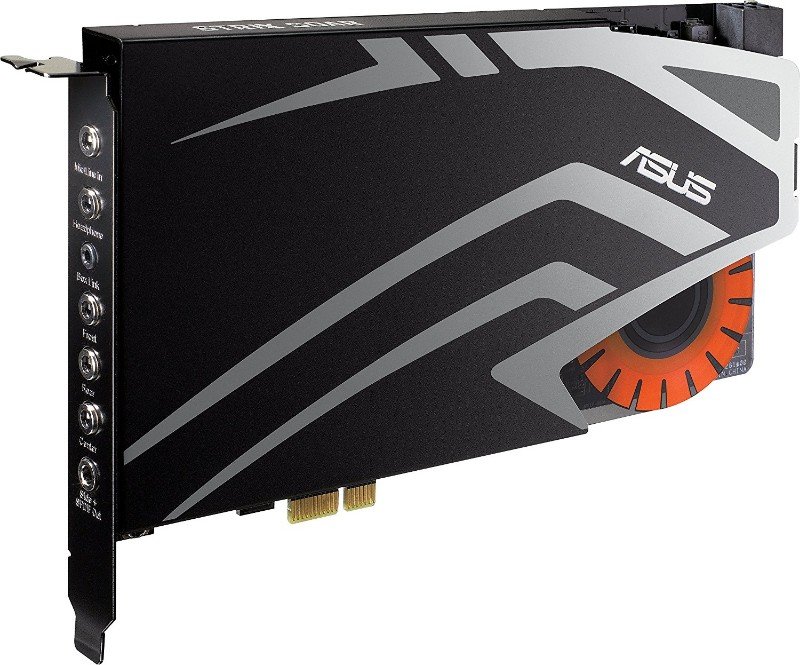

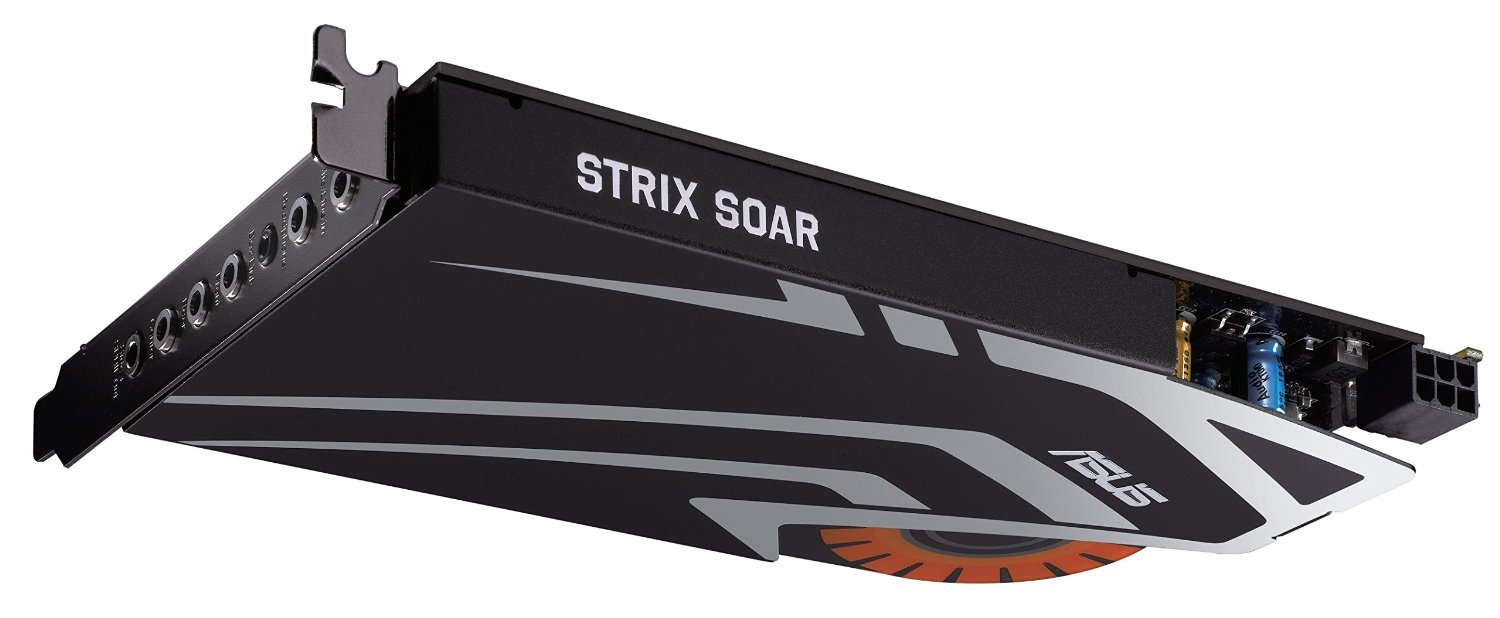

ASUS STRIX SOAR STRIX Soar 7.1 24-bit 192 KHz PCI-Express x1 Sound Card
- Model: yqw5wp
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Strix Soar is a gaming sound card built with high-performance components to satisfy gamers who demand pure, full-sounding audio. Strix Soar features rich, immersive, and clear sound with an incredible 116dB signal-to-noise ratio (SNR), and a 600ohm headphone amplifier for deep, tight bass. The simple yet powerful Sonic Studio sound utility provides complete sound card control and allows easy in-game audio adjustments.
- Audio Interface: PCI Express
- Audio Processor :C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 384KHz / 24bit)
- Digital-to-analog Converter(DAC): ESS SABRE9006A Premier 8 Channel Audio DAC

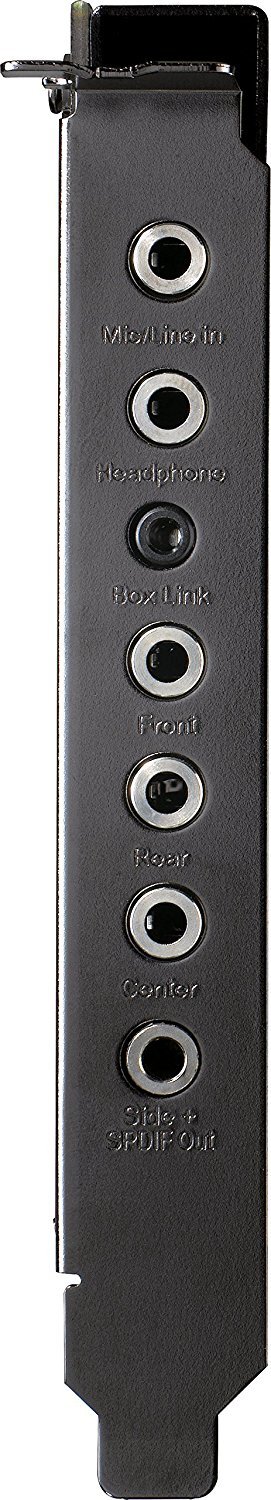

- Analog Output: 5 x 3.5 mm jack (1/8") (Headphone out /Front out/Side out/Center-Subwoofer out/Rear out)
- Analog Input: 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
- Digital: 1 x S/PDIF out ((combo with side out))
- Output Signal-to-Noise Ratio (A-Weighted): 116 dB
- Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out): 110 dB
- Input Signal-to-Noise Ratio (A-Weighted): 110 dB
- Output THD+N at 1kHz (Front-out): 0.001 %(-100 dB)
- Output THD+N at 1kHz (Headphone-out): 0.003 %(-90 dB)
- Input THD+N at 1kHz: 0.000316 %(-110 dB)
- Frequency Response (-3dB, 24bit/96KHz input): 10 Hz to 48 KHz
- Output/Input Full-Scale Voltage: Line output (RCA, 3.5): 2 Vrms (5.65 Vp-p)
- 8 Channels
- 44.1K / 48K / 88.2K / 96K / 176.4K / 192KHz
- PCI Express Interface
Manufacturer：ASUS
MPN：STRIX SOAR
Part：90YB00J0-M0UA00
Audio Chipset：C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 384KHz / 24bit)
Sample Rate：44.1K / 48K / 88.2K / 96K / 176.4K / 192KHz
SNR：Output Signal-to-Noise Ratio (A-Weighted) (Front-out) : 116dB
Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) : 110dB
Input Signal-to-Noise Ratio (A-Weighted) : 110dB
Line In：1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Line Out：(RCA, 3.5) : 2 Vrms (5.65 Vp-p)
MIC In：Yes
Interface：PCI Express
Operating Systems Supported：Windows 10 (32bit / 64bit), Windows 8.1 (32bit / 64bit), Windows 8 (32bit / 64bit), Windows 7 SP1 (32bit / 64bit)
Features：116dB signal-to-noise ratio (SNR) and audiophile-grade DAC: Enjoy high-fidelity, immersive sound
Sonic Studio utility: Take full control over loads of sound technologies via an intuitive, one-page interface
Sonic Radar Pro: Lets you pinpoint the exact location of in-game sounds and enhances critical audio details like enemy footsteps for an aural advantage
600ohm headphone amplifier: For enhanced bass and clear, detailed sound
Dimensions：5.12" x 7.48" x 0.87"
Weight：1.7
Package Includes：STRIX SOAR
S/PDIF optical adaptors x 1
Driver CD x 1
Quick start guide x 1
