ASRock Fatal1ty X370 GAMING X AM4 AMD Promontory X370 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

"Powered by AMD X370 chipset, the ASRock Fatal1ty X370 GAMING X motherboard is great for your new powerhouse based on the state-of-the-art AMD Ryzen CPUs and APUs in AM4 packaging. It supports multi-GPU configuration over two PCIe 3.0 x16 slots, and features two M.2 connectors and one USB Type-C port."

The ASRock X370 GAMING X motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD X370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2933 / 3200. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, support for SLI, stylish Black / Red design.

• AMD X370
• Supports AMD RYZEN series processors and 7th Gen A-series/ Athlon processors for Socket AM4
• DDR4 3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866
• 7th Gen A-series/ Athlon processors support up to DDR4 2400 MHz only.

Manufacturer：ASRock
Classification：Fatal1ty
MPN：X370 GAMING X
CPU Socket Type：AM4
Processor Type：A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
Chipset：AMD Promontory X370
Number of Memory Slots：4×288pin
Memory Standard：AMD Ryzen series CPUs support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133
AMD 7th Gen A-Series APUs support DDR4 2400/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：Ryzen series CPUs
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*
7th A-Series APUs
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE2))*
* Supports NVMe SSD as boot disks
PCI Express x1：4 x PCI Express 2.0 x1 Slots
Other Slots：1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
15µ Gold Contact in VGA PCIe Slot (PCIE2)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2 (M Key)：1 x Ultra M.2 Socket (M2_1), type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16Gb/s) (with A-Series APU)*
1 x M.2 Socket (M2_2), type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x2 (10Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon R-Series Graphics in A-series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Max. shared memory 2GB
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with HDMI Port
Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps

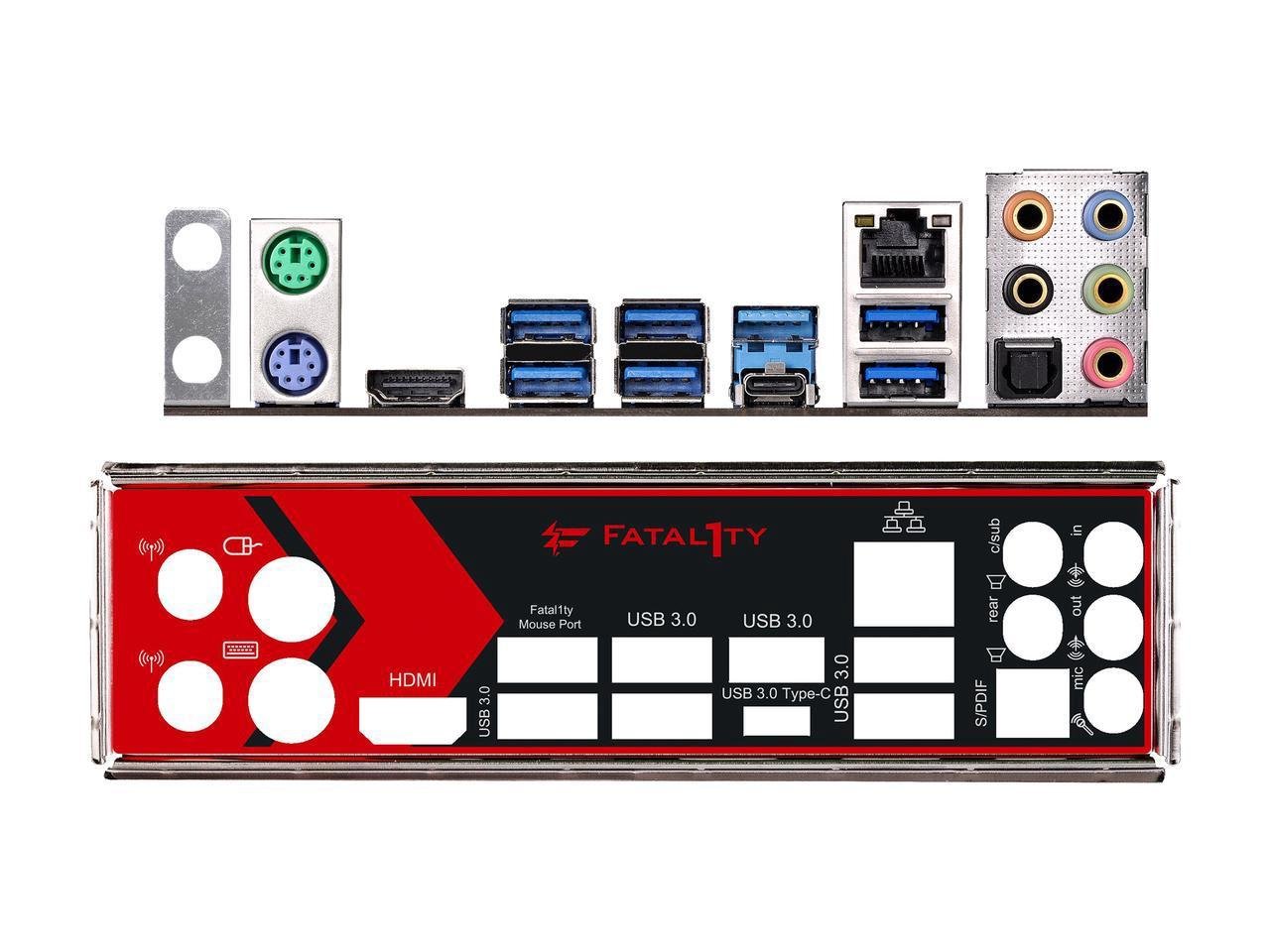

PS/2：1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen1 Type-A Port
1 x USB 3.1 Gen1 Type-C Port
6 x USB 3.1 Gen1 Ports*
*1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports)
Other Connectors：1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x AMD Fan LED Header
2 x RGB LED Headers*
1 x CPU Fan Connector (4-pin)**
1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
1 x Dr. Debug with LED

*Supports in total up to 12V/3A, 36W LED Strip.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W.)
***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W.)
****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W.)
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
Features：Gaming Armor:
Power
- Hi-Density Power Connectors (24-pin and 8-pin)
Memory
- 15µ Gold Contact in DIMM Slots
VGA Card
- 15µ Gold Contact in VGA PCIe Slot (PCIE2)
Internet
- Intel LAN
Cooling
- XXL Aluminum Alloy Heatsink
Audio
- Creative Sound Blaster Cinema 3

Unique Feature
ASRock Super Alloy
- Premium 45A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment

Software and UEFI
Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans:
- Temperature Sensing
- Fan Tachometer
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- Fan Multi-Speed Control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP

OS:
- Microsoft Windows 10 64-bit
