Syba SI-PEX15041 PCIe 8x Serial Fan-Out Cab, EXAR358
- Model: ubkq1s
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

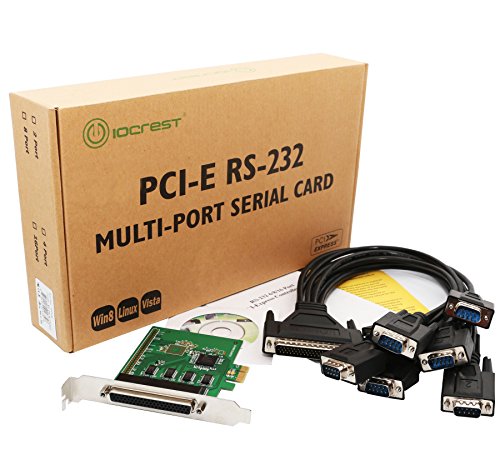

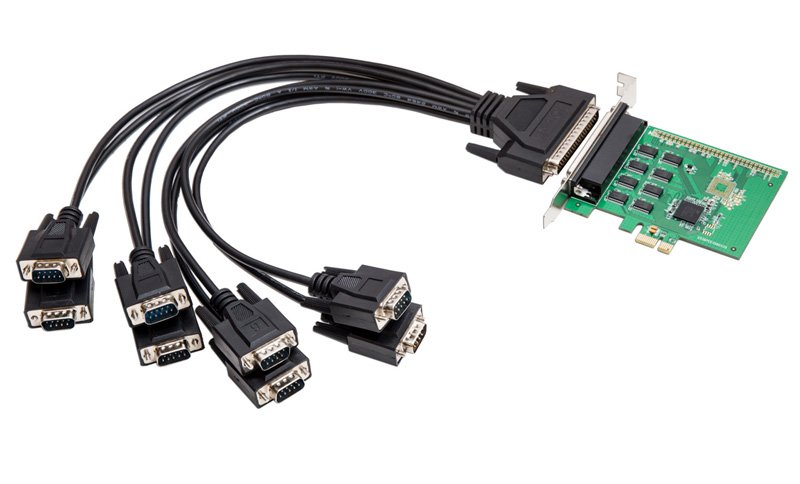

PCIe 2.0 8x Port Serial RS232 Card, Compatible with 16C550 UART, Fan-Out Cable, Exar XR17V358 Chipset. This XR17V358 series Multi-I/O PCI-Express controller card is equipped with the RS-232 serial interface controller for industrial and home users. They are compatible with industrial standard 16C550 UART, which provides a low cost connection platform for industrial machines, POS machines, external modems, and other peripheral devices. IO Crest 8 Port RS232 DB9 Serial PCI-Express 2.0 x1 with Exar Chipset SI-PEX15041. Syba 8 Port RS232 DB9 Serial PCI-Express 2.0 x1 with Exar Chipset SI-PEX15041. Syba Multimedia SI-PEX15041 8PORT PCI-E CARD RS-232 SERIAL REVISION 2.
- PCIe 2.0 Gen 1 Compliant
- x1 Link, Dual Simplex, 2.5Gbps in Each Direction
- Expansion Bus Interface
- Up to 25 Mbps Serial Data Rate
- 16 Multi-Purpose Inputs/Outputs
- 16-bit General Purpose Timer/Counter
- Sleep Mode with Wake-up Indicator
- Operating Temperature Range: -40C to 85C
- 8x Serial (8S) Model:
- Supports 8 Independent 9-pin RS232 Serial Ports
- 256-byte TX and RX FIFOs
- Programmable TX and RX Trigger Levels
- TX/RX FIFO Level Counters
- Fractional Baud Rate Generator
- Automatic RTS/CTS or DTR/DSR Hardware Flow Control with Programmable Hysteresis
- Automatic Xon/Xoff Software Flow Control
- Multi-drop with Auto Address Detection
- Infrared (IrDA 1.1) Data Encoder/Decoder
Manufacturer：SYBA
MPN：SI-PEX15041
Features：PCIe 2.0 Gen 1 Compliant
x1 Link, Dual Simplex, 2.5Gbps in Each Direction
Expansion Bus Interface
Up to 25 Mbps Serial Data Rate
16 Multi-Purpose Inputs/Outputs
16-bit General Purpose Timer/Counter
Sleep Mode with Wake-up Indicator
Operating Temperature Range: -40C to 85C
8x Serial (8S) Model:
Supports 8 Independent 9-pin RS232 Serial Ports
256-byte TX and RX FIFOs
Programmable TX and RX Trigger Levels
TX/RX FIFO Level Counters
Fractional Baud Rate Generator
Automatic RTS/CTS or DTR/DSR Hardware Flow Control with Programmable Hysteresis
Automatic Xon/Xoff Software Flow Control
Multi-drop with Auto Address Detection
Infrared (IrDA 1.1) Data Encoder/Decoder
Weight：1.3
