Syba SI-PEX15037 PCIe x1 to 2x Serial Port Controller Card
- Model: y70jdv
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

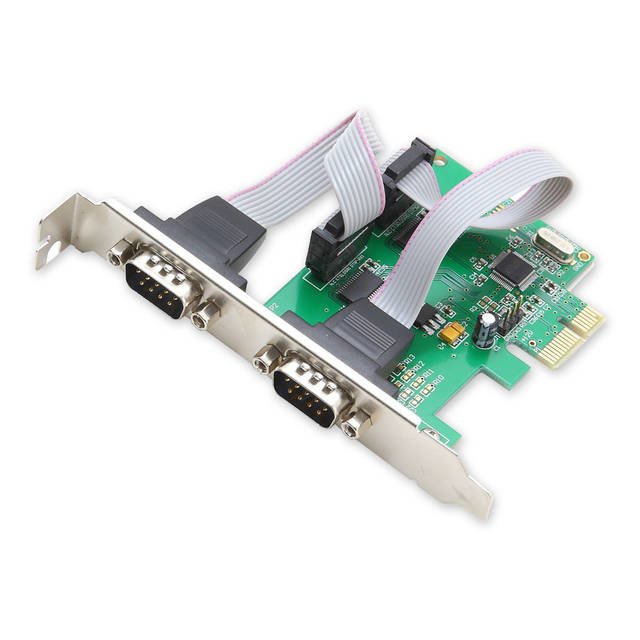

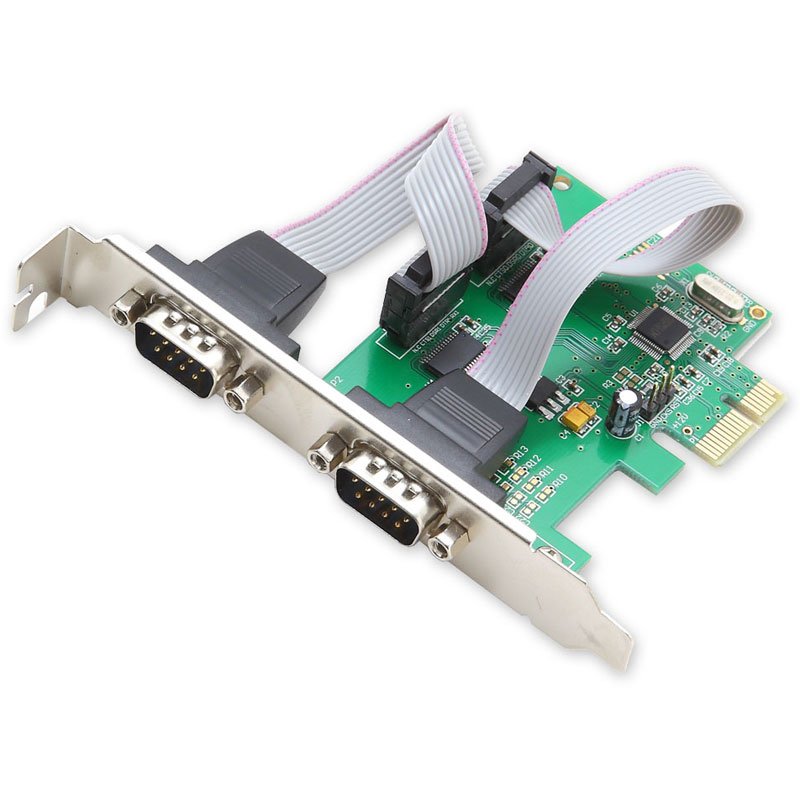

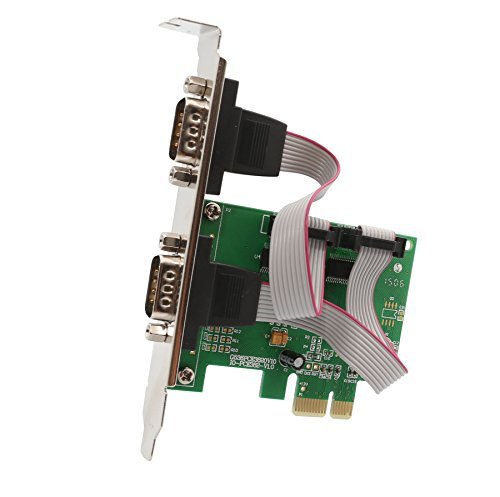

PCIe 2x Port Serial DB9 Card, WCH CH382 Chipset, with Low Profile Bracket. Equip your PC with two serial ports with this serial controller card from Syba. This PCI Express x1 serial port controller can be installed in a full size desktop or server, or can be installed in a slimline PC as a low profile single port serial controller card. Compatible with most operating systems, this 2x serial expansion card allows the use of legacy devices on modern machines.
- Interface
- PCI Express x1
- Form Factor
- Low Profile (bracket included)
- Serial Ports
- 2
- Serial Port Specs
- 2 16c450/550/Extended 550 Compatible UARTs
- Supports RS232 Modes
- Bi-directional Speeds from 50bps to 16Mbps/Port
- Full Serial Modem Control
- Supports Hardware, Software Flow Control
- 5, 6, 7, 8 and 9-bit Serial Format Support
- Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
- Even, Odd, None, Space & Mark Parity Supported
- Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
- On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
- Support Remote Wakeup and Power management Features
- Serial Port Transceiver Shutdown Support
- Support Slow IrDA on all Serial Ports
Syba SI-PEX15037
- PCI Express to Serial Port Card
Manufacturer：SYBA
MPN：SI-PEX15037
Type：PCI Express to Serial Port Card
External Ports：2 x Serial Ports
Operating Systems Supported：All Windows OS
Features：Fully Compliant with PCI-e Base Specification, Revision 1.0a
PCI-e Multi Function Peripheral Controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Utilizes 100-Mhz Differential PCI-e Common Reference Clock
Supports PCI-e Power Management
Serial Port:
2 16c450/550/Extended 550 Compatible UARTs
Supports RS232 Modes
Bi-directional Speeds from 50bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Support
Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
Even, Odd, None, Space & Mark Parity Supported
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Support Remote Wakeup and Power management Features
Serial Port Transceiver Shutdown Support
Support Slow IrDA on all Serial Ports
Weight：0.35 lb.
Package Includes：2 x Serial Ports PCI-e Controller Card
2 x Single port Low Profile Brackets
Full Bracket for 2 COM Ports
User Manual
Driver Mini CD
