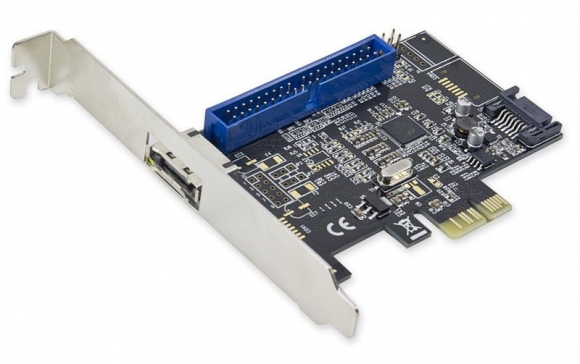

Syba Sata Iii / Ide Pcie X1 Raid Card
- Model: 3gdqyz
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCIe 2.0 x1, SATA6Gbps, 1x PATA, 1x SATA, 1x e-SATA Combo Raid Card, Marvell Chipset. With this IDE & SATA III controller card from Syba, you'll be able to set up a RAID array for easier backup of your files, quicker data access times, or more space on a single drive letter. With the included IDE rail, you'll be able to hook up two legacy hard drives as well, meaning you don't have to get rid of the drives you currently have installed.
- Ports
- 1 External SATA 6Gbps Port
- 1 Internal SATA 6Gbps port
- 1 Internal IDE Port (Connects up to 2 IDE Hard Drives)
- Chipset
- Marvel 88SE9128
- Interface
- PCI-Express 2.0 x1
- Serial-ATA (SATA) Interface
- Compliant with Serial-ATA Specification 3.0
- Supports Communication speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps
- Compatible with SATA-III (6Gbps), SATA-II (3Gbps), and SATA-I (1.5Gbps) Hard Drives and SSD's
- Supports Gen1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
- Supports Hardware RAID 0 and RAID 1
- Supports Native Command Queue (NCQ)
- Supports SATA Port Multiplier FIS Based Switching or Command Based Switching
- Supports SATA Port Hot-plug
- Supports AHCI 1.0 and IDE Programming Interface
- Supports ATA and ATAPI Commands
- Parallel-ATA (PATA/IDE) Interface
- Compliant with ATA/ATAPI-7 Specification
- Supports DMA Protocols, and up to UDMA 150 Mbps Data Transfer Rate
- Supports Multiword DMA and PIO Modes for Data Transfer
- Supports IDE Programming Interface
Syba SD-PEX50050
- RAID Support
- Set up a RAID 0 or RAID 1 array through your BIOS - no drivers required
- RAID 0/1
- 1 x SATA 6.0Gb/s + 1 x PATA Internal Connectors
- 1 x eSATA External Connectors
- Up to 6Gb/s
Manufacturer：SYBA
MPN：SD-PEX50050
Type：SATA / IDE
External Connectors：1 x eSATA
Internal Connectors：1 x SATA 6.0Gb/s + 1 x PATA
Interface：PCI-Express 2.0 x1
Transfer Rate：Up to 6Gb/s
RAID：RAID 0/1
Operating Systems Supported：Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Server 2003 32/64-bit
Server 2008 32/64-bit
Linux
Features：Based on Marvel 88SE9128 PCI-Express 2.0 SATA 6Gbps Hardware RAID Controller
1-Lane PCI-Express 2.0 Interface Supports Communication Speed of 2.5Gbps and 5.0Gbps
Compliant with PCI-Express 2.0 Base Specification
Unique Hard Drive Activity LED Indicator Circuit Design: The LED Blinks for Read/Write Activity
Serial-ATA (SATA) Interface:
Compliant with Serial-ATA Specification 3.0
Supports Communication speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps
Compatible with SATA-III (6Gbps), SATA-II (3Gbps), and SATA-I (1.5Gbps) Hard Drives and SSD's
Supports Gen1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Supports Hardware RAID 0 and RAID 1
Supports Native Command Queue (NCQ)
Supports SATA Port Multiplier FIS Based Switching or Command Based Switching
Supports SATA Port Hot-plug
Supports AHCI 1.0 and IDE Programming Interface
Supports ATA and ATAPI Commands
Parallel-ATA (PATA/IDE) Interface:
Compliant with ATA/ATAPI-7 Specification
Supports DMA Protocols, and up to UDMA 150 Mbps Data Transfer Rate
Supports Multiword DMA and PIO Modes for Data Transfer
Supports IDE Programming Interface.
Package Includes：Combo SATA III + IDE PCI-Express SATA RAID Card
Driver CD
User Manual
LED Cable
