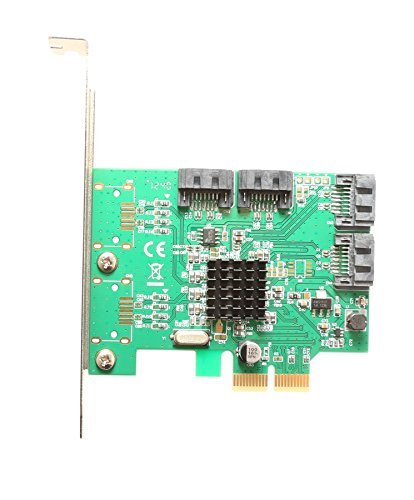

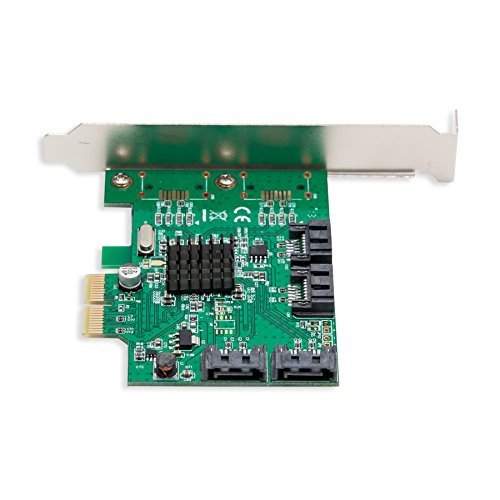

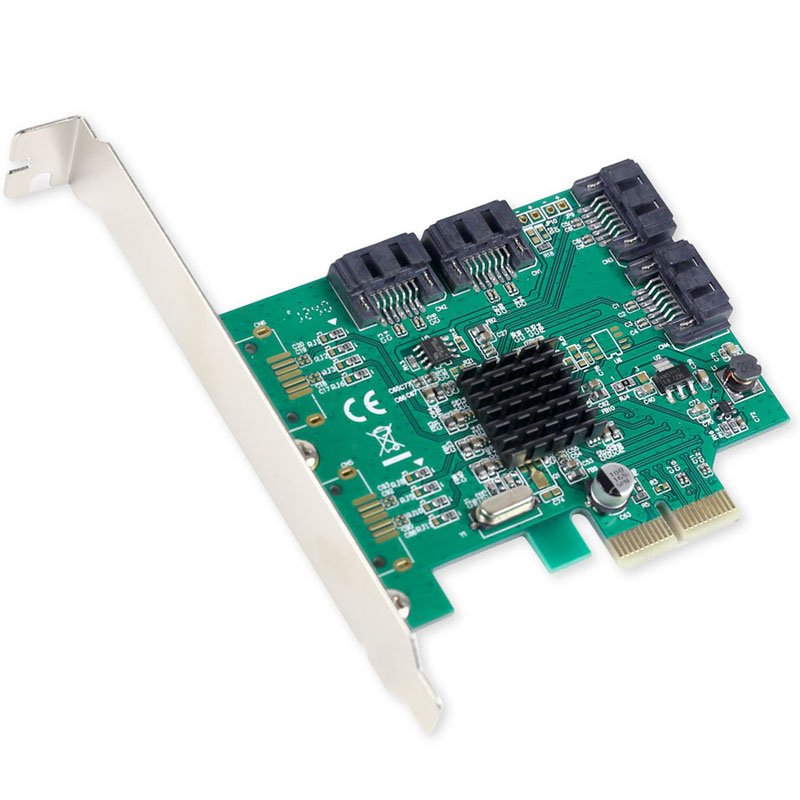

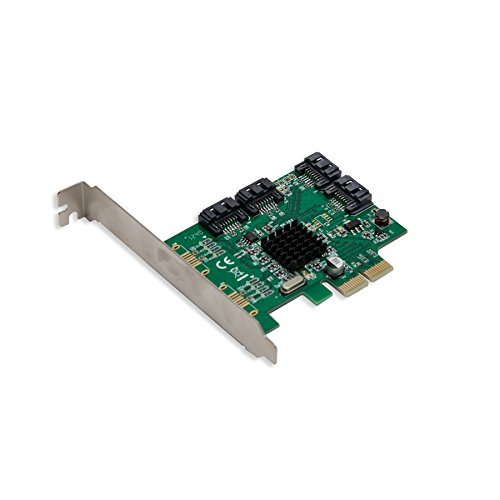

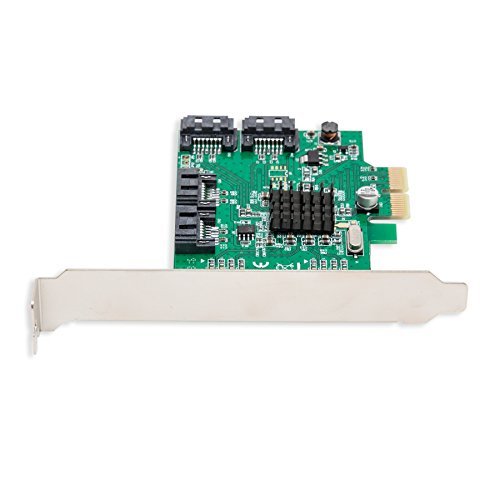

Syba SI-PEX40062 Marvell 88SE9235 4-Port SATA III PCIe Controller Card
- Model: bxaa32
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCIe x2 Interface Version 2.0, 4-Port Internal SATA 6Gbps Controller Card, Non-Raid, Marvell 88SE9235 Chipset, with Low Profile Bracket. This Syba SI-PEX40062 Marvel 4-port SATA controller allows you to attach an additional 4 SATA devices to your PC. This is perfect for the digital packrat with mulitple hard drives or the media fiend with mutliple DVD and bluray burners. This controller card can be installed in either PCI-Express, x4, x8, and x16 slots and the low profile form factor ensure maximum compatibilty across most PC cases. IO Crest SATA III 4 Port PCI-e 2.0 x 2 Controller Card with Low Profile Bracket (SI-PEX40062). IO Crest SATA III 4 Port PCI-e 2.0 x2 Controller Card with Low Profile Bracket SI-PEX40062.
- SATA III Controller
- With this 4-port SATA III controller card, you'll be able to hook in four high speed SATA 6gb/s drives using a single PCI Express x1 lane. With four internal SATA 3 ports, you'll be able to add SATA III capability to an older machine or expand your serial ATA capabilities.
- Low Profile Ready
- The included low profile bracket lets you install this slim SATA III controller card into slimline PC systems or other low profile desktop PC cases.
- SATA Cables Included
- The included SATA III cables provide a ready solution to hooking up your SATA 3 media drives right away.
- Chipset
- Marvell 88SE9235
- Ports
- 4 Internal SATA 6Gb/s Ports
- Interface
- PCI Express 2.0 x1
- Communication Speeds
- 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
- Features
- Hot Plug and Hot Swap
- Native Command Queue (NCQ)
- Port Multiplier FIS Based Switching or Command Based Switching
Syba SI-PEX40062
- 4 x SATA 6.0Gb/s Internal Connectors
- Up to 6Gb/s
Manufacturer：SYBA
MPN：SI-PEX40062
Form Factor：Low Profile Ready
Type：SATA III (6.0Gb/s)
Internal Connectors：4 x SATA 6.0Gb/s
Interface：PCI-Express 2.0 x2
Transfer Rate：Up to 6Gb/s
Operating Systems Supported：Windows 8
Windows 7
Vista
Windows XP
Server 2008
Server 2008 R2
Server 2003
Linux 2.6.x and Above (AHCI devices driver is a built-in feature)
Features：Chipset: Marvell 88SE9235
Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express 1x
Compliant with Serial ATA Specification 3.0
PCI-Express x2 Interface is Compatible with PCI-Express x4, x8, and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Package Includes：SATA III 4-port PCI-e Version 2, x2 Slot Controller Card
Driver CD
19" SATA Cables (x2)
Low Profile Bracket
User Manual
