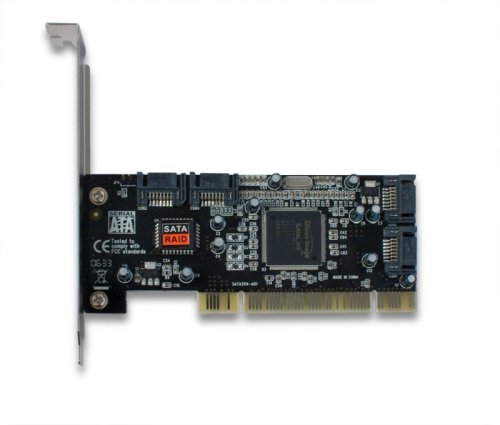

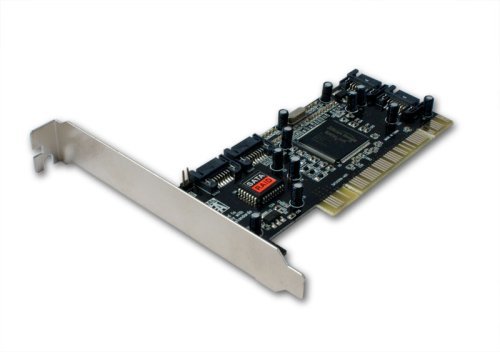

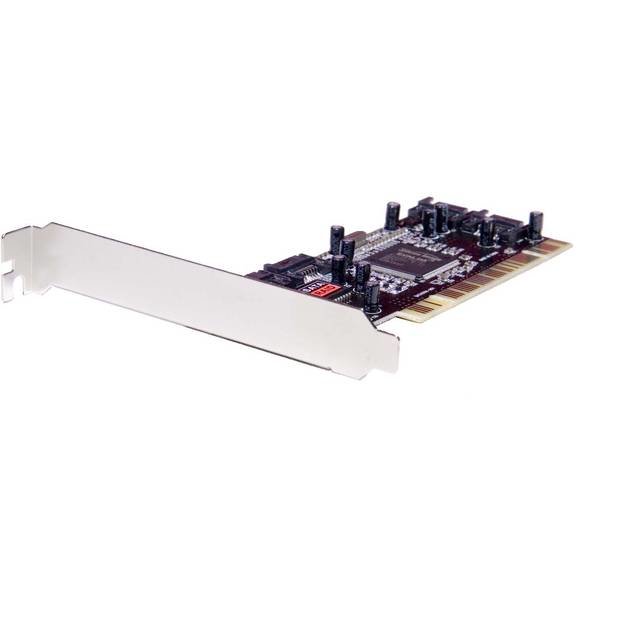

Syba 4 Port PCI SATA RAID Controller Card
- Model: 9bavoo
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Looking to add more hard drives than you have ports for? The Syba SD-SATA-4P will do the trick with support for up to 4 Serial ATA devices and built-in support for RAID 0,1,0+1. This card is Windows 7 compatible (along with Windows XP and Vista) and easily lets you upgrade the storage capabilities of your system. Whether you're looking to add SATA hard drives to your PC or if you are trying to setup a RAID 0 (striped), RAID 1 (mirror), or RAID 0+1 array, this card will do the trick. A great way to turn an open PCI slot into a SATA drive host.
- Brand: Syba
- 4-channel Serial-ATA port
- Software RAID 0, 1, 0+1 function
- PCI Specification Revision 2.3 compliant
- Serial ATA Specification Revision 1.0 compliant
- Compliant with programming interface for Bus Master IDE Controller Rev 1.0
- Internal Serial-ATA port x 4
- Silicon Image SIL 3114 host controller chip
- Compliant with Serial ATA 1.0 specification
- DSupport 66Mhz PCI with 32-bit data
- Support programmable and EEPROM, FLASH & EPROM loadable PCI class mode
- Support ATAPI devices: CD-ROM, DVD-ROM, etc
- Integrated SATA Transport, Link Logic & PHY layer
- 48-Bit sector addressing Virtual DMA
- Drivers support for Win98, WinME, NT4, Win2K, XP, Vista, Windows 7 (use Vista driver)
- Support 4 Independent Serial ATA channels(1.5Gbps)
- RAID function:
- Supports software RAID 0 (striped), RAID 1 (mirror), and RAID 0+1
- Supports co-exist RAID set and Non-RAID HDD
- Allows HDDs with different sizes to be configured in a RAID set
- Software monitoring utility5
- System Requirement:
- PC computer with one 32-bit PCI slot and SATA device
- MS Windows 98SE/Me/2000/XP/Vista/Windows 7 (use Vista driver)
- 4 x SATA 150
Manufacturer：SYBA
MPN：SD-SATA-4P
Internal Connectors：4 x SATA 150
Interface：PCI
Transfer Rate：Up to 1.5Gb/s
RAID：Software RAID 0/1/0+1
Operating Systems Supported：MS Windows 98SE/Me/2000/XP/NT 4.0
Features：PCI Specification Revision 2.3 compliant
Serial ATA Specification Revision 1.0 compliant
Compliant with programming interface for Bus Master IDE Controller, Rev 1.0
Silicon Image SIL 3114 host controller chip
Compliant with Serial ATA 1.0 specification
Support 66Mhz PCI with 32-bit data
Support programmable and EEPROM, FLASH & EPROM loadable PCI class mode
Support ATAPI devices: CD-ROM, DVD-ROM, etc
Integrated SATA Transport, Link Logic & PHY layer
48-Bit sector addressing
Virtual DMA
RAID function
Supports software RAID 0 (striped), RAID 1 (mirror), and RAID 0+1
Supports co-exist RAID set and Non-RAID HDD
Allows HDDs with different sizes to be configured in a RAID set
Software monitoring utility

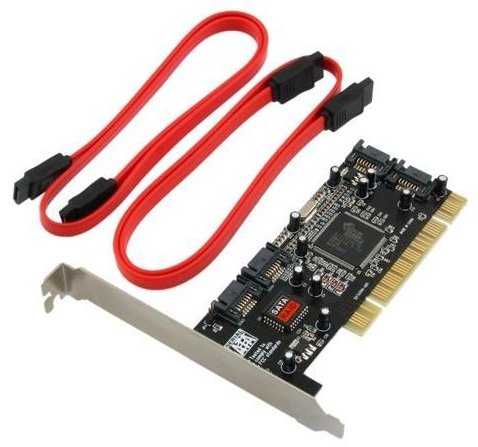

Package Includes：SD-SATA-4P
User Manual
Driver Disk
2 x SATA Cable
