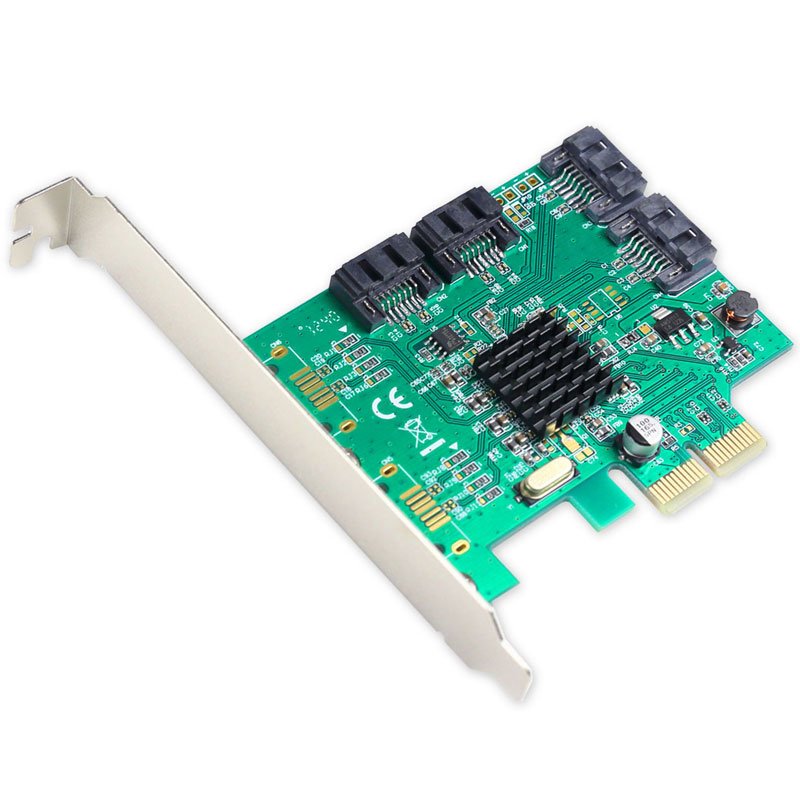

Syba SI-PEX40057 PCIe x2 Four Port SATA III RAID Controller Card
- Model: vged8l
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCIe x2 Interface Version 2.0, 4-Port Internal SATA 6Gbps Raid Controller Card, Marvell 88SE9230 Chipset, with Low Profile Bracket, Support RAID 0 / 1 / 10 / HyperDuo. The SI-PEX40057 4 port SATA III PCI-e 2.0 x2 Hyper Duo raid controller card marvel 88SE9230 chipset adds four SATA III ports to a computer through a PCI-e 2.0 x2 slot, delivering multiple internal 6Gbps connections for SATA III hard drives and SSDs. This sata iii raid controller features Hyper Duo technology, the SATA card offers SSD auto-tiring which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), Hyper Duo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput. The Hyper Duo automatic storage tiring feature is compatible with Windows XP, Vista, 7, and 8 only. IO Crest SATA III 4-port PCI-e 2.0 x 2 Card Marvell HyperDuo and RAID Mode Support with Low Profile Brackets SI-PEX40057. 4-Port (SI-PEX40057). Syba PCIe x1 6.0Gbps Controller (SI-PEX40057) . SI-PEX40057 Card. x2 SYBA PCI-Express (6.
- Extra SATA 6GB/s Ports
- Need some extra SATA Ports? This Syba PCIe x1 Four Port SATA III Controller will give your system four brand spankin' new SATA III ports, compatible with SATA II and SATA drives as well. You'll be able to use a lot of extra storage and other SATA peripherals with this 4-Port PCIex2 SATA3 RAID Controller Card.
- Hot Swap Support
- Easily connect and disconnect SATA drives with this Syba PCI-Express x2 4-Port SATA 6.0Gbps controller card through its hot swap support! You'll be able to turn HDDs internal large external storage through the use of this Syba PCI-E 2.0 x2 SATA Controller card!
- RAID Support
- This Syba 4-Port SATA III Controller Card supports RAID 0/1/10 Functions, giving you the ability to divide your storage and mirror disks.
- Chipset
- Marvell 88SE9230
- Ports
- 4 Internal SATA 6Gb/s Ports
- Connection
- PCIe x2
- SATA Compatibility
- SATA 6GB/s
- SATA 3GB/s
- SATA 1.5GB/s
4-Port PCIex2 SATA3 RAID Controller Card
- Chipset
- Marvell 88SE9230
- Ports
- 4 Internal SATA 6Gb/s Ports
- PCI-E Compatibility
- PCI-Express Specification v2.0 and Backward Compatible with PCI- Express 1 x
- PCI-Express x2 Interface (for Selected Models) is Compatible with PCI-Express x4, x8, and x16 slots
- SATA Compatibility
- Compliant with Serial ATA Specification 3.0
- Compatible with SATA 6G, 3G and 1.5G Hard Drives
- SupportsCommunication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
- Supports
- Hot Plug and Hot Swap
- Native Command Queue (NCQ)
- Port Multiplier FIS Based Switching or Command Based Switching
- RAID Function
- RAID 0-Striping (Stripe Size; 32K, 64K)
- RAID 1-Disk Mirroring
- RAID 10-Stripe of Mirrors (Stripe Size; 32K, 64K)
- HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
- Note
- Not Supported RAID on PM
4-Port PCIex2 SATA3 RAID Controller Card
- RAID 0 / 1 / 10
- 4 x SATA 6.0 Gb/s Internal Connectors
- Up to 6 Gb/s
Manufacturer：SYBA
MPN：SI-PEX40057
Form Factor：Low Profile Ready
Type：SATA III (6.0Gb/s)
Internal Connectors：4 x SATA 6.0Gb/s
Interface：PCI-Express 2.0 x2
Transfer Rate：Up to 6Gb/s
RAID：RAID 0/1/10
Operating Systems Supported：Supports Windows XP/Vista/7/8/Server 2003/2008 R2/8, Linux 2.6. x and above
Computer Motherboard with PCI-e Version 2.0 x2 Slot (This card will not fit into a PCI-e x1 slot)
Features：Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 1.0x
Compliant with Serial ATA Specification 3.0
PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS based switching or command based switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives
Support RAID function: RAID 0, RAID 1, RAID 10, and HyperDuo
Note: Not Supported RAID on PM
Package Includes：1 x SATA III (6Gbps) 4-port PCI-Express Controller Card
1 x User Manual
2 x SATA Cable
1 x Driver CD
1 x Low Profile Bracket
