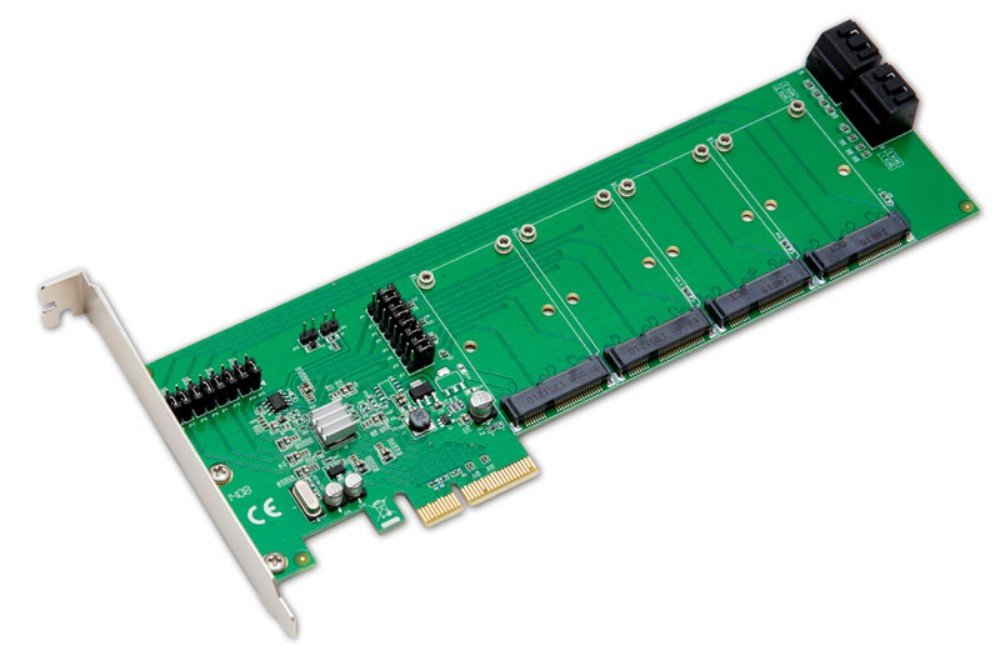

Syba 4 Port mSATA PCI Express 2.0 x4 Raid Controller Card Marvell Chipset
- Model: 1ri2yw
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCIe 2.0 HyperDuo 4-Port SATA6G or m-sata (internal) HDD/SSD RAID Controller Card, Support RAID 0 / 1 / 10 / JBOD, Marvell 88SE9230 Chipset. This Syba 4 Port PCI-Express SATA III 6Gbps is an innovation in design and concept, with user configurable SATA connectors. 2 SATA channels can be set as Internal, External or combination with few jumpers. ASM106x Chipset support Windows Server 2012.
- SATA 6Gbps
- Supports up to 3TB Hard Drives
- PCI-Express 2.0 SATA 6Gbps
- Chipset
- ASMedia ASM1061 PCI-Express 2.0 SATA 6Gbps Controller
- Interface
- 1-Lane PCI-Express 2.0 Interface Supports Communication Speed of 2.5Gbps and 5.0Gbps
- Ports
- SATA 6.0Gbps Ports
- Compliance
- Serial-ATA Specification 3.0
- Max Capacity
- Up to 3TB Hard Drives
- 6.0 Gbps Data Transfer Rate
Manufacturer：SYBA
MPN：SD-PEX40079
Data Transfer Rate：6.0 Gbps
Features：Marvell PCI-Express 2.0 SATA 6Gbps Controller, x4 Lane
4-Lane PCI-Express 2.0 Interface Supports Communication Bandwidth Up to 10Gbps
Compliant with PCI-E 2.0 Base Specification
Hard Drive Activity LED
Up to 4 SATA/mSATA Devices with Point-to-Point Connectivity
Compliant with Serial-ATA Specification 3.0
Supports Communication Speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps
Supports Hardware RAID 0, 1, 10, and JBOD
HyperDuo Mode Supports Safe Mode (Mirrored Protection), and Capacity Mode (Cost-Optimized)
Bootable-OS Needs to be Re-installed
Supports Native Command Queuing (NCQ)
FIS Based Port Multiplier
Supports SATA Port Hot-Plug
Weight：0.1
