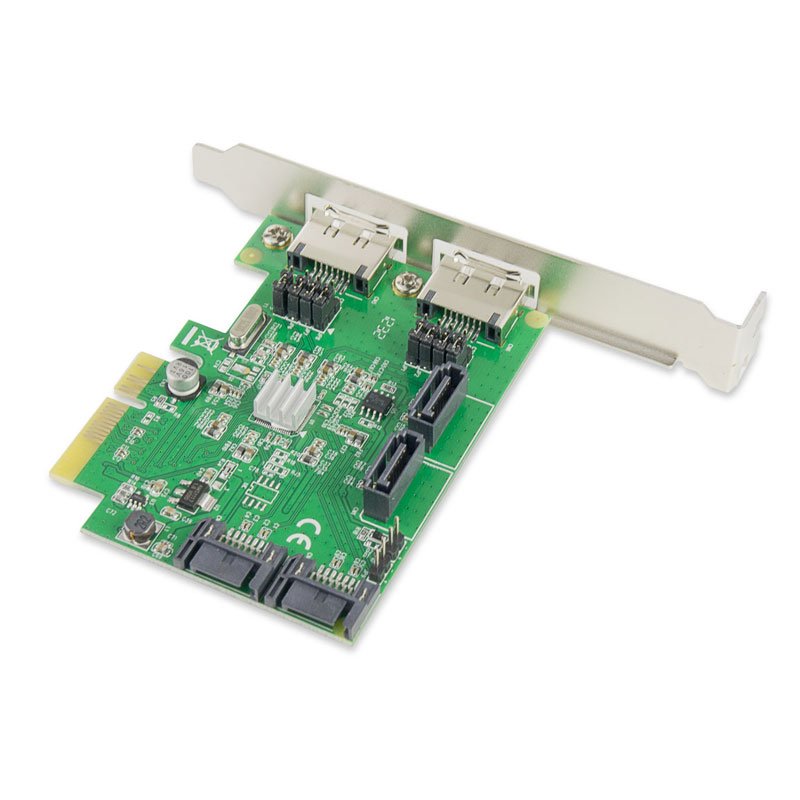

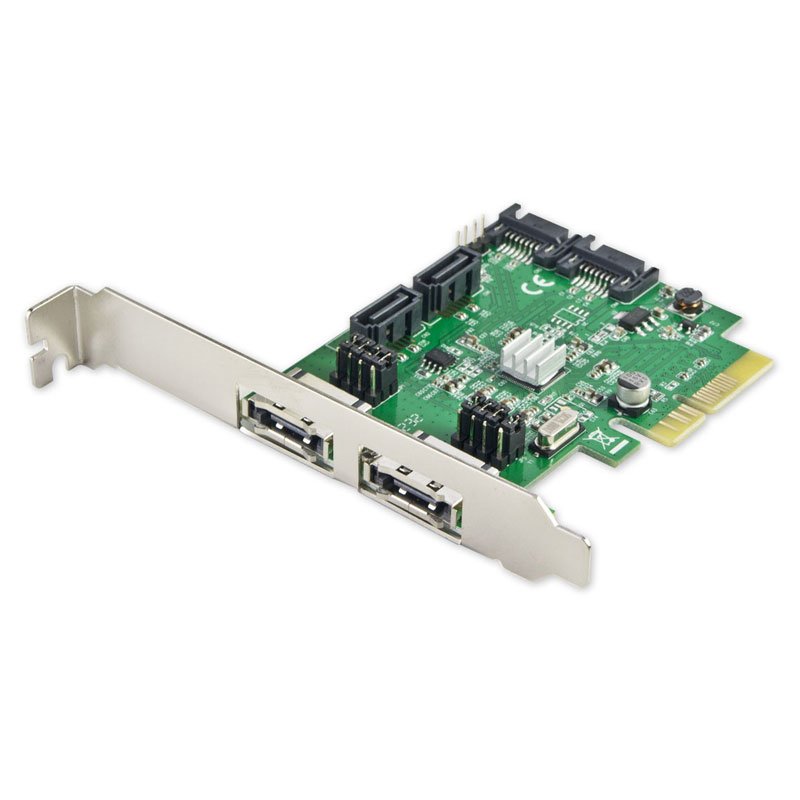

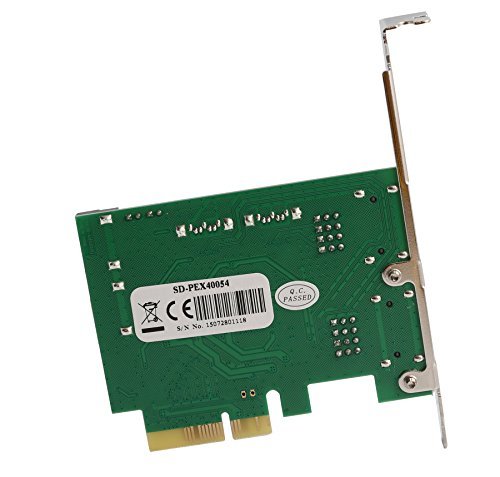

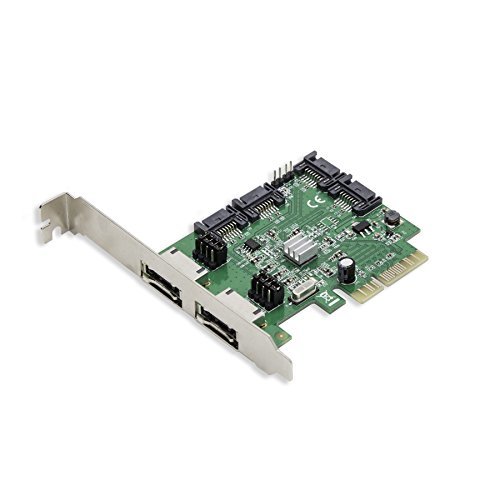

Syba SD-PEX40054 4-Port SATA III PCI-e Card
- Model: zmak4k
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCIe HyperDuo 4-Port SATA6G (either 2x external, 4x internal or 2E2I) HDD/SSD RAID Controller Card, Support RAID 0 / 1 / 10 / JBOD, Marvell Chipset. Equip your PC with SATA III transfer speeds with this SATA 3 PCI Express Controller Card from Syba. Designed to support up to four SATA III devices, this 4-Port SATA III card also integrates HyperDuo technology, letting a hard disk drive and solid state drive work together in tandem like never before. Upgrade your PC with this SATA 3 controller card today.
- Chipset
- Marvell 88SE9230
- Interface
- PCI Express 2.0 x4
- RAID Support
- Hardware RAID 0, 1, 10 and JBOD
- SATA Support
- Up to 4 SATA III Devices with Point-to-point Connectivity
Syba SD-PEX40054
- HDD LED Support
- Hook this controller card to your case's HDD activity light
- HyperDuo Technology
- Combine Solid State Drive speed with Hard Disk Drive capacity for ultimate system performance
- RAID 0/1/10 JBOD
- 4 x SATA 6.0Gb/s Internal Connectors
- Up to 6Gb/s
Manufacturer：SYBA
MPN：SD-PEX40054
Type：SATA III (6.0Gb/s)
Internal Connectors：4 x SATA 6.0Gb/s
Interface：PCI-Express 2.0 x2
Transfer Rate：Up to 6Gb/s
RAID：RAID 0/1/10 JBOD
Operating Systems Supported：Windows 7 (32/64 bit)
Vista (32/64 bit)
Windows XP (32/64 bit)
Server 2008
Server 2008 R2
Server 2003 (32/64 bit)
Features：*SY-PEX40054 has a total of 6 SATA 6Gbps ports, BUT the two external ports are shared. So only 4 ports can be used simultaneously at one time.
Based on Marvell 88SE9230 Chipset
2-lane PCI-Express 2.0 Interface Supports Communication Bandwidth up to 6Gbps
Compliant with PCI-Express 2.0 Base Specification
Unique Hard Drive Activity LED Indicator Circuit Design: The LED Blinks for Read/Write Activity
Serial-ATA Interface:
Bootable
Changeable SATA 6.0Gbps Ports (Internally, Externally or Their Combination)
Up to 4 SATA Devices with Point-to-point Connectivity
Compliant with Serial-ATA Specification 3.0
Supports Hardware RAID 0, 1, 10 and JBOD
HyperDuo Mode Supports Safe Mode (Mirrored Protection) and Capacity Mode (Cost-Optimized) to Build a System with SSD and HDD Hybrid
Supports Native Command Queuing (NCQ)
FIS Based Port Multiplier
Supports SATA Port Hot-plug
Supports AHCI
Marvell HyperDuo technology combines solid state drive (SSD) speed and SATA HD capacity in a way it forms an ultimate high performance, cost effective and large storage system.

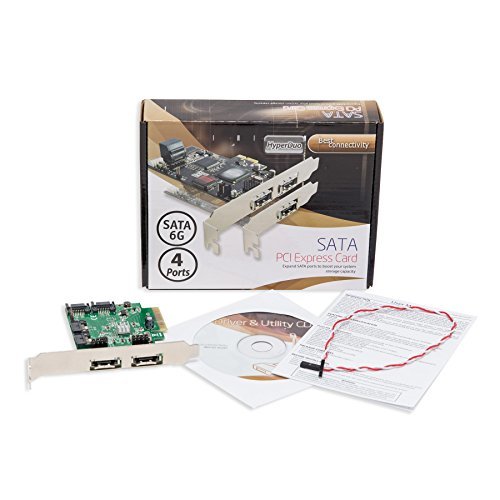

Package Includes：PCI-e SATA RAID Controller Card
Driver CD
User Manual
LED Cable (12")
