Startech.Com Pexesat322I 2X Pcie Sata Iii Esata Card

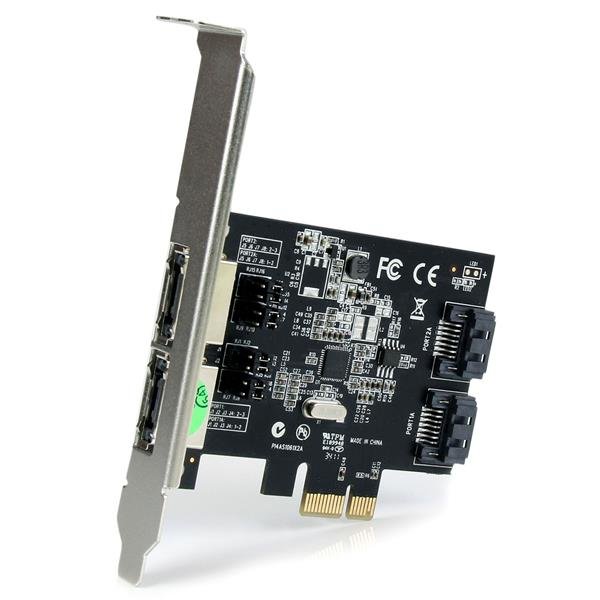

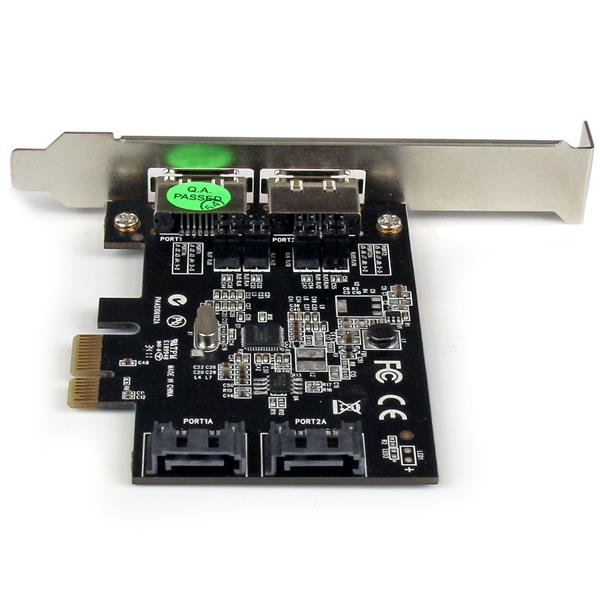

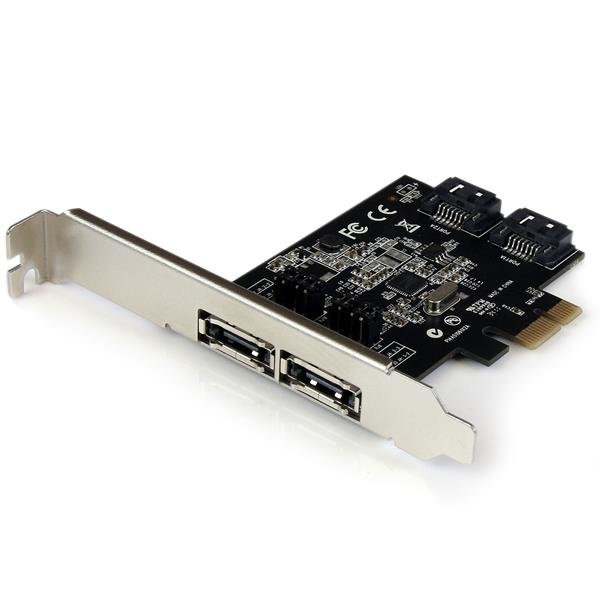

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed. The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required. The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).

• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Chipset ID: ASMEDIA ASM1061
• Interface: eSATA & SATA
• Port Style: Integrated on Card
• Ports: 2
• ATAPI Support: Yes
• Bootable: Yes
• LBA support: 48-bit
• Number of Drives Supported Through Port Multiplier: 1 to 4
• Number of Ports That Support Port Multiplier: 2 (can use 2 PM at a time)
• Port Multiplier: Yes
• RAID: No
• Type and Rate: SATA III (6 Gbps)
• Connector Type(s): 1 - PCI Express x1 Male

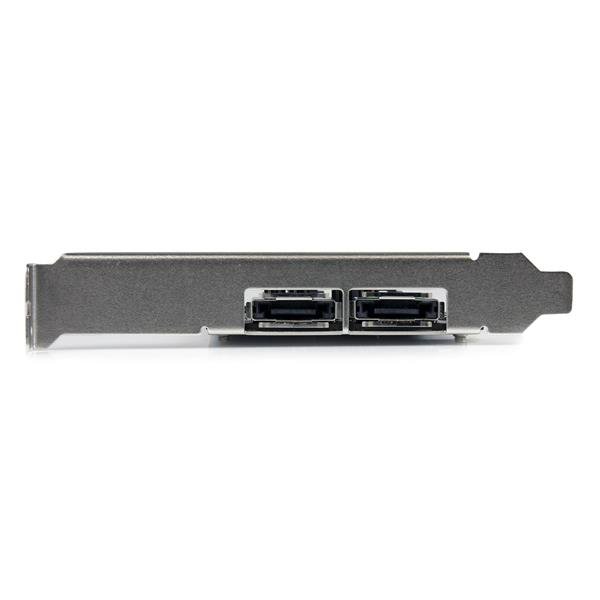

• External Ports: 2 - eSATA (7 pin; Data) Plug
• Internal Ports: 2 - SATA (7 pin; Data) Plug
• Humidity: 5% ~ 85% RH
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Product Height: 0.8 in [20 mm]
• Product Length: 4.8 in [121 mm]
• Product Weight: 1.6 oz [44 g]
• Product Width: 3.6 in [92 mm]

• Add 2 external or internal SATA 6 Gbps ports to a computer through a PCI Express slot
• 2 Port PCI Express SATA 6
• PCIe SATA 6
• PCI Express SATA III Card
• PCI Express eSATA
• PCIe eSATA
• Dual Port PCI-e Controller Card
• Includes Low Profile Bracket

Manufacturer：StarTech
MPN：PEXESAT322I
Form Factor：Low Profile Ready
Type：SATA III (6.0Gb/s)
External Connectors：2 x eSATA
Internal Connectors：2 x SATA 6.0Gb/s
Interface：PCI-Express x1
Transfer Rate：Up to 6Gb/s
Operating Systems Supported：Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8 (32/64-bit)
Dimensions：0.8" x 4.8" x 3.6"
Features：Chipset ID: ASMEDIA ASM1061

LBA support: 48-bit

Port Multiplier: Yes

Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth

Support for SATA-based optical drives (CD/DVD/BD)

Uses existing SATA I/II cabling

Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands

Port Multiplier FIS-based and Command-based switching supported.

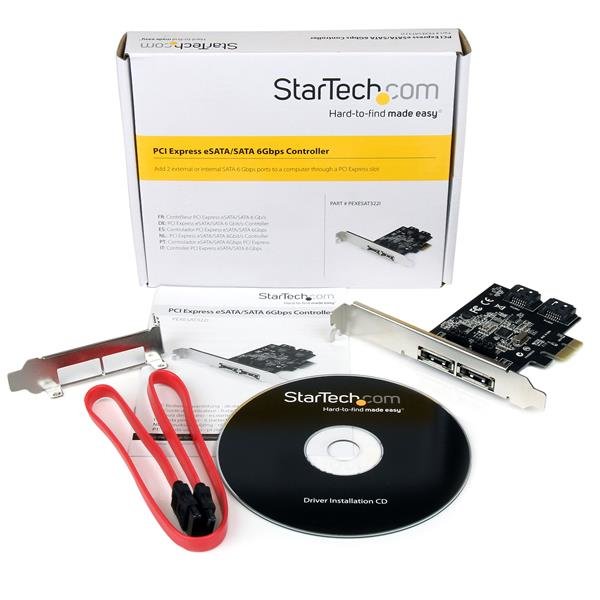

Package Includes：PCIe SATA Controller
SATA Cable
Low Profile Bracket
Driver CD
Instruction Manual
Electrical Outlet Plug Type：Plug Type "A" (USA, Canada, Mexico, Japan)
