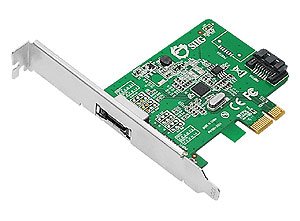

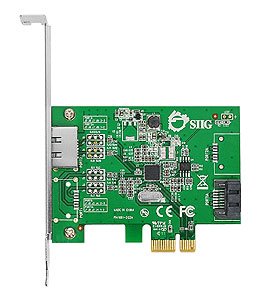

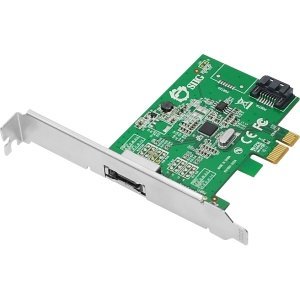

Siig SC-SA0N11-S1 2-Port eSATA 6Gb/s PCIe x1 Controller Card
- Model: vvv7rh
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Add awesome eSATA capability to your computer with a Siig eSATA PCIe x1 Controller Card. This PCI Express x1 controller card supplies two 6GB/s eSATA ports to your computer system: one internal port, and one external port, each supporting SATA hard disk drives up to 3 terabytes and is compatible with port multipliers. 2 Port eSATA PCI-E Host Adapte.
- Ports
- 2x eSATA (one internal, one external)
- Transfer Rate
- 6 GB/s
- Compatibility
- PCI Express x1
Siig eSATA PCIe Controller Card
- Add eSATA!
- Get two super-fast 6 GB/s eSATA ports in exchange for one measly PCI Express x1 port, with one internal eSATA port mounted on the card, and an external eSATA port mounted on the outer bracket
Siig eSATA PCIe Controller Card
- Compliance and Support
- Compliant with Serial ATA specification, Revision 3.0
- Compliant with PCI Express Base specification, Revision 2.0
- Supports ATA/ATAPI-7 specification
- Supports port multiplier
- Supports Native Command Queuing (NCQ)
- Supports 6Gb/s data transfer rate
- Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s & 1.5Gb/s HDDs
- Chipset:
- Asmedia ASM1061
- Ports
- 1 x external SATA (eSATA) 6Gb/s
- 1 x internal SATA 6Gb/s
- Product Dimensions
- 3.50" (W) x 4.75" (H) x 0.75" (D)
- Product weight
- 0.15 lbs
- Environmental conditions
- Operating temperature: 32 to 140 F (0 to 60 C)
- Operating humidity: 10% to 90% RH
- Storage temperature: 68 to 140 F (20 to 60 C)
- Storage humidity: 5% to 95% RH
- Certifications/Standards
- FCC, CE, RoHS
Siig eSATA Controller
- 1 x SATA 6.0Gb/s Internal Connectors
- 1 x eSATA External Connectors
- Up to 6Gb/s
Manufacturer：SIIG
MPN：SC-SA0N11-S1
Form Factor：Low Profile Ready
Type：SATA III (6.0Gb/s)
External Connectors：1 x eSATA
Internal Connectors：1 x SATA 6.0Gb/s
Interface：PCI-Express 2.0
Transfer Rate：Up to 6Gb/s
Operating Systems Supported：Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2
Dimensions：3.50" (W) x 4.75" (H) x 0.75" (D)
Features：Chipset: Asmedia ASM1061
Compliant with Serial ATA specification, Revision 3.0
Compliant with PCI Express Base specification, Revision 2.0
Supports ATA/ATAPI-7 specification
Supports port multiplier
Supports Native Command Queuing (NCQ)
Supports 6Gb/s data transfer rate
Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s & 1.5Gb/s HDDs
Requirements: Desktop PC with an available PCIe slot
Adds 1 external SATA (eSATA) & 1 internal 6Gb/s channels to your PCIe system
Installs in standard height or low profile chassis with included brackets.
Package Includes：DP SATA 6Gb/s 2-Port PCIe
Spare low profile bracket
SATA data cable
Driver CD
User's manual
