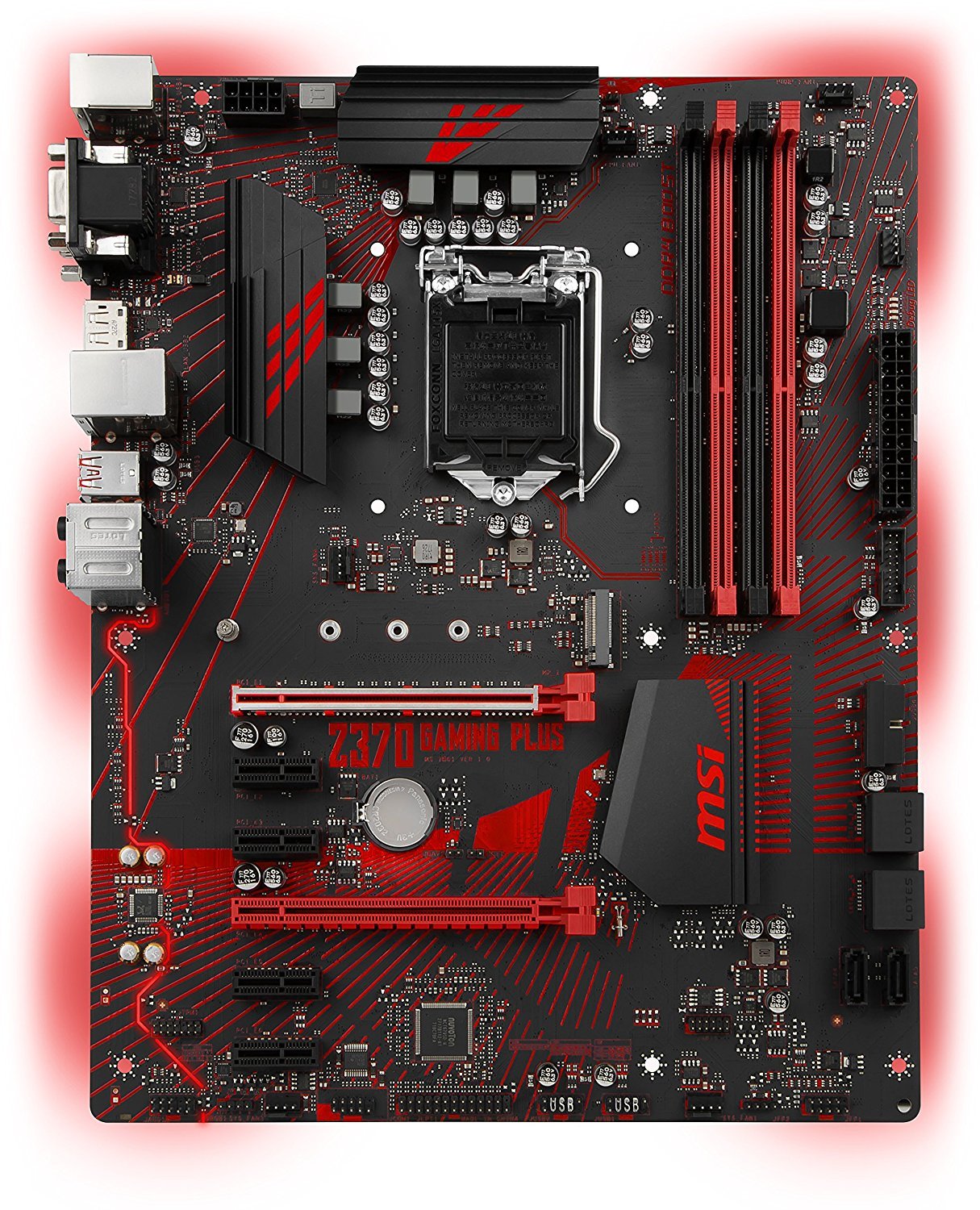

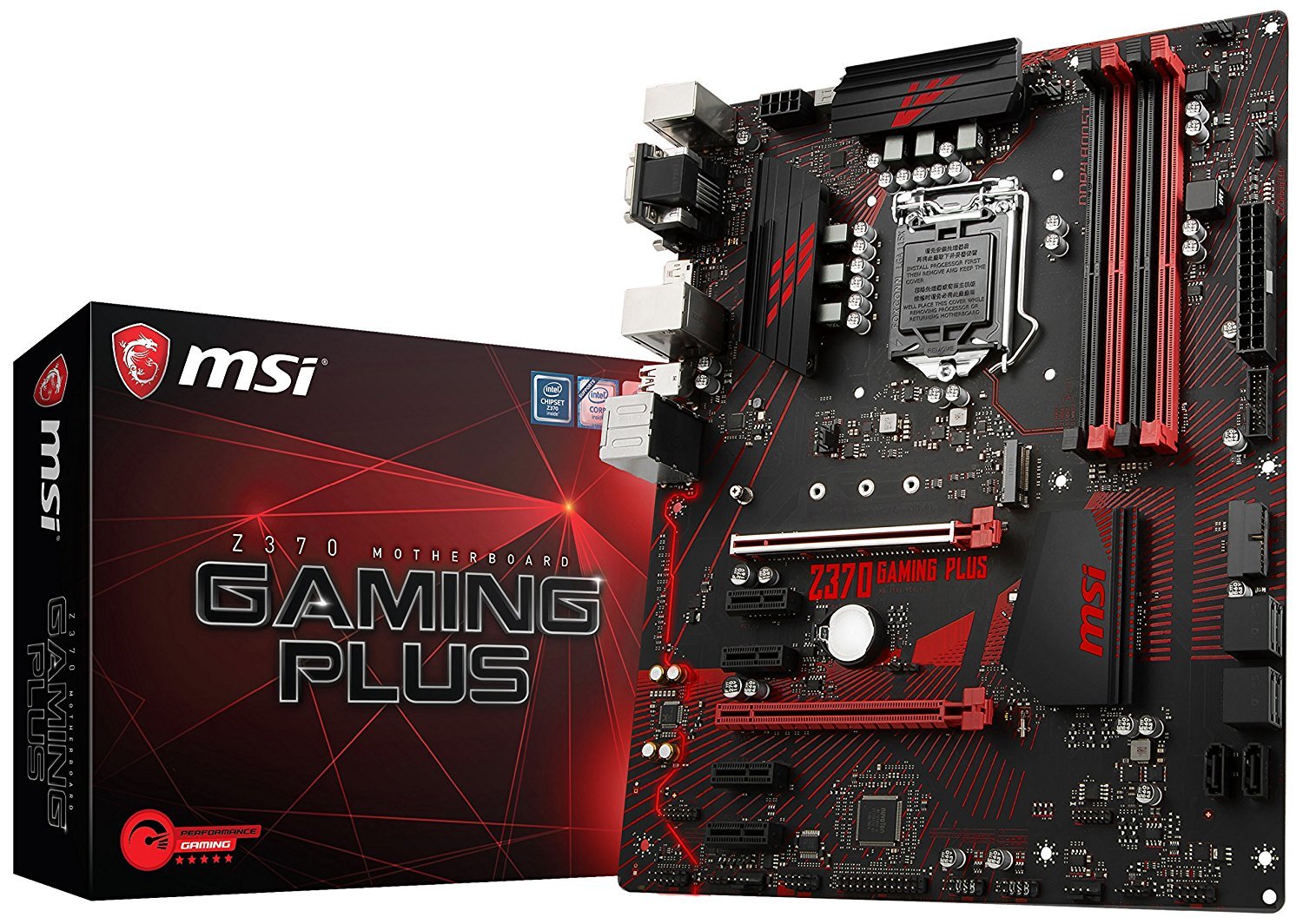

MSI Z370 GAMING PLUS 8TH GEN ATX DDR4 64GB 2PCIEX16 CFX M.2 DSUB DVI DP USB3.1 Motherboard

This motherboard is designed to fully utilize the Intel Coffee Lake processors, ready to deliver world class performance when gaming. Unlimited customization options and packed with exclusive gaming features, MSI PERFORMANCE GAMING motherboards offer the best possible gaming experience. Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

The MSI Z370 GAMING PLUS motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel Z370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3300 / 3333 / 3400 / 3466 / 3600 / 3733 / 3866 / 4000. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / Red design.

• Brand: MSI
• Model: Z370 GAMING PLUS
• CPU Socket Type: LGA 1151 (300 Series)
• CPU Type: Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
• Chipset: Intel Z370
• Number of Memory Slots: 4x288pin
• Memory Standard: DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: 2 x PCI Express 3.0 x16
• PCI Express x1: 4 x PCIe 3.0 x1 slots
• SATA 6Gb/s: 6 x SATA 6Gb/s ports
• M.2: 1 x M.2 slots (Key M)
• SATA RAID: 0/1/5/10
• Audio Chipset: Realtek ALC892
• Audio Channels: 7.1 Channels
• LAN Chipset: Intel I219-V
• Max LAN Speed: 10/100/1000Mbps
• PS/2: 1 x PS/2 keyboard/mouse port
• Video Ports: 1 x VGA port, 1 x DVI-D port
• RJ45: 1 x RJ45
• DisplayPort: 1 x DisplayPort
• USB 3.1: 4 x USB 3.1 Gen1 Type-A ports
• USB 1.1/2.0: 2 x USB 2.0
• Audio Ports: 6 x OFC audio jacks
• Form Factor: ATX
• LED Lighting: RGB
• Dimensions (W x L): 12.0" x 9.6"
• Power Pin
• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
• Onboard USB
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• Other Connectors
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 4 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x RGB LED connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Parallel port connector
• 1 x Serial port connector
• 1 x Clear CMOS jumper

• Intel Z370
• Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133

Manufacturer：MSI
MPN：Z370 GAMING PLUS
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset：Intel Z370
Onboard Video Chipset：Supported only by CPU with integrated graphic
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCI Express 3.0 x16
PCI Express x1：4 x PCIe 3.0 x1 slots
SATA 6Gb/s：6 x SATA 6Gb/s ports*
* The SATA1 port will be unavailable when M.2 SATA SSD has been installed in M.2 slot.
M.2：1 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280/22110 storage devices
- Intel Optane Memory Ready
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x VGA port
1 x DVI-D port
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：4 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0：2 x USB 2.0
Audio Ports：6 x OFC audio jacks
Onboard USB：2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Parallel port connector
1 x Serial port connector
1 x Clear CMOS jumper
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：Supports 8th Gen Intel Core / Pentium Celeron processors for LGA 1151 socket.

Supports DDR4 Memory, up to 4000+(OC) MHz.

Lightning Fast Game experience: 1x TURBO M.2, Intel Optane Memory Ready.

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.

DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.

GAMING LAN, powered by Intel: The best online gaming experience with lowest latency and bandwidth management.

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire.

VR Ready: Best virtual reality game experience without latency, reduces motion sickness.

Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency.

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast.

EZ Debug LED: Easiest way to troubleshoot.

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.
