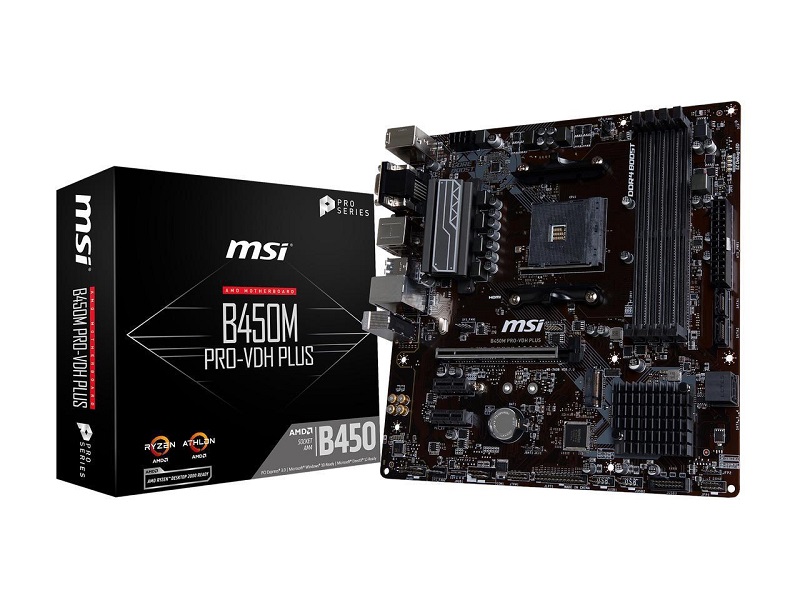

MSI B450M PRO VDH PLUS Desktop Micro-ATX Motherboard AMD Chipset Socket AM4

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI Pro Series motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance. Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.

• Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4
• Supports DDR4 Memory, up to 3466+(OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
• Audio Boost: Reward your ears with studio grade sound quality
• EZ Debug LED: Easiest way to troubleshoot
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device

Brand：MSI
Series：PRO
Model：B450M PRO-VDH PLUS
CPU Socket Type：AM4
CPU Type：Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4
Chipset：AMD B450
Number of Memory Slots：4×288pin
Memory Standard：Supports 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE)
Supports 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)
* Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCIe 3.0 x16 slot
Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors
Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors
Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
PCI Express x1：2 x PCIe 2.0 x1 slots
SATA 6Gb/s：4 x SATA 6Gb/s
M.2：1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics) and SATA 6Gb/s
Supports 2242/2260/2280 storage devices
SATA RAID：0/1/10
Onboard Video Chipset：Supported only by CPU with integrated graphic:
1 x VGA port, supports a maximum resolution of 2048 x 1280 @ 60 Hz, 1920 x 1200 @ 60 Hz
1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096 x 2160 @ 30 Hx, 2560 x 1600 @ 60 Hz

Only support when using AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
Maximum shared memory of 2048MB
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Realtek 8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x VGA Port
1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A
USB 1.1/2.0：4 x USB 2.0
Audio Ports：3 Ports
Onboard USB：2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 GSB 3.1 Gen1 ports)
Other Connectors：1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper
Form Factor：Micro ATX
LED Lighting：RGB
Dimensions (W x L)：9.6" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
