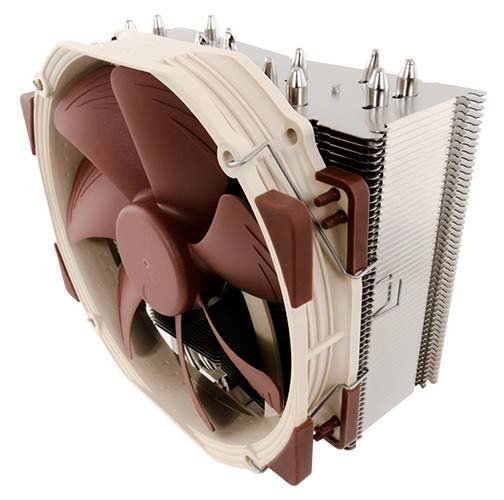

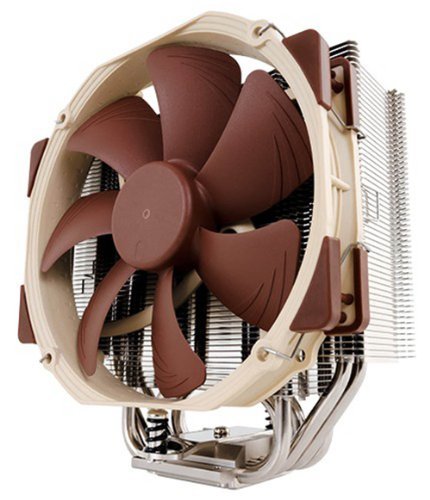

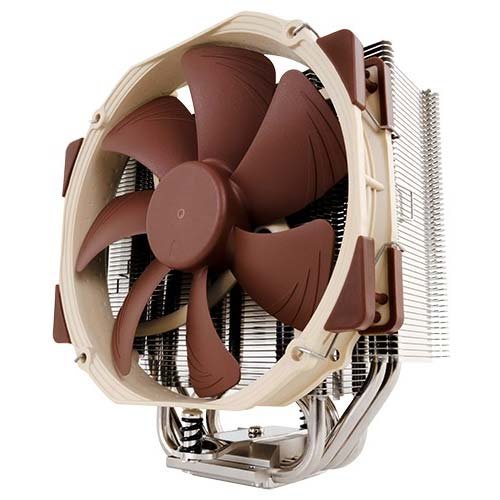

Noctua NH-U14S 140mm Intel LGA2011/LGA 1150/LGA 1151 Processor Cooler
- Model: shycsq
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Noctua NH-U14S 140mm CPU Cooler - This universal SSO2-bearing CPU cooler from Noctua utilizes the SSO2 bearing design for maximum silence and airflow. With six large copper heatpipes, you'll effectively siphon heat away from your CPU.
- High Quality SSO2 Bearing Fan
- Premium NT-H1 Thermal Compound Pre-Installed
- Universal Intel / AMD Compatibility
- Six Heatpipe Design
- Full RAM Clearence Compatibility
- Socket compatibility
- Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
- Dimensions
- Height (without fan): 165 mm
- Width (without fan): 150 mm
- Depth (without fan): 52 mm
- Height (with fan): 165 mm
- Width (with fan): 150 mm
- Depth (with fan): 78 mm
- Weight (without fan): 770 g
- Weight (with fan): 935 g
- Material
- Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Fan compatibility
- 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
- Bearing
- SSO2
- Max. Rotational Speed (+/- 10%)
- 1500 RPM
- Max. Rotational Speed with L.N.A. (+/- 10%)
- 1200 RPM
- Min. Rotational Speed (PWM, +/-20%)
- 300 RPM
- Max. Airflow
- 140,2 m3/h
- Max. Airflow with L.N.A.
- 115,5 m3/h
- Max. Acoustical Noise
- 24,6 dB(A)
- Max. Acoustical Noise with L.N.A.
- 19,2 dB(A)
- Input Power
- 1,56 W
- Voltage Range
- 12 V
- MTBF
- > 150.000 h
Noctua NH-U14S
- 52mm slim design tailor-made for LGA2011, full compatibility with tall memory modules
- 165mm tall, short enough to fit most modern high-end cases
- Premium quality quiet for 140mm fan
Manufacturer：Noctua
MPN：NH-U14S
Type：Fan & Heatsinks
Fan Size：140mm
Compatibility：Intel LGA 2066 / 2011-0 & 2011-3 (Square ILM) / 1156 / 1155 / 1151 / 1150
AMD AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 (backplate required)
Bearing Type：SSO2-Bearing (Self-stabilising oil-presure bearing)
RPM：1500 RPM (standard), 1200 RPM (w/ L.N.A.), 300 RPM (PWM)
Air Flow：54.97 CFM (standard), 43.73 CFM (w/ U.L.N.A)
Noise Level：24.6 dBA (standard), 19.2 dBA (w/ U.L.N.A.)
Heatsink Material：Copper (Base and Heat-pipes), Alum. (cooling Fins), Soldered Joints, Nickel Plated.
Fan Mounting Types to Heatsink：Horizontal
Max CPU Cooler Height：165 mm
Fan Dimensions：6.50" x 5.90" x 2.00" (Without Fan)
6.50" x 5.90" x 3.10" (With Fan)
Weight：1.70 lbs. (Without Fan)
2.10 lbs. (With Fan)
Features：Scope of Delivery
1 x NF-A15 PWM Premium Fans
Low-Noise-Adapter (L.N.A)
NT-H1 High-grade Thermal Compound
SecuFirm 2 mounting Kits
Anti-vibration pads and fan-clips for 2nd NF-A15 (optional)
Noctua Metal case badge
