Noctua NH-D15S Ultra Quiet Intel & AMD Processor Cooler
- Model: l8ydba
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua's award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most uATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode.
- High-compatibility version of NH-D15
- Excellent RAM compatibility
- Asymmetrical layout for better PCIe compatibility
- NF-A15 140mm fan
- Dual-fan ready
- PWM support and Low-Noise adapter
- Socket compatibility: Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
- Height (without fan): 160 mm
- Width (without fan): 150 mm
- Depth (without fan): 135 mm
- Height (with fan): 165 mm
- Width (with fan): 150 mm
- Depth (with fan): 135 mm
- Weight (without fan): 980 g
- Weight (with fan): 1150 g
- Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- Fan compatibility: 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
- Fan Model 1x Noctua NF-A15 PWM
- Bearing: SSO2
- Max. Rotational Speed (+/- 10%): 1500 RPM
- Max. Rotational Speed with L.N.A. (+/- 10%): 1200 RPM
- Min. Rotational Speed (PWM, +/-20%): 300 RPM
- Max. Airflow: 140,2 m3/h
- Max. Airflow with L.N.A.: 115,5 m^3/h
- Max. Acoustical Noise: 24,6 dB(A)
- Max. Acoustical Noise with L.N.A.: 19,2 dB(A)
- Input Power: 1,56 W
- Voltage Range: 12 V
- MTBF: > 150.000 h
- 1500 RPM (Standard), 1200 RPM (with L.N.A), 300 RPM (PWM)
- 82.52 CFM (Standard), 67.98 CFM (with L.N.A)
- Copper
Manufacturer：Noctua
MPN：NH-D15S
Type：Fan & Heatsinks
Fan Size：140mm
Compatibility：Intel LGA 2066 / 2011-0 & 2011-3 (Square ILM) / 1156 / 1155 / 1151 / 1150
AMD AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 (backplate required)
Bearing Type：SSO2
RPM：1500 RPM (Standard), 1200 RPM (with L.N.A), 300 RPM (PWM)
Air Flow：82.52 CFM (Standard), 67.98 CFM (with L.N.A)
Noise Level：24.6 dBA (Standard), 19.2 dBA (with L.N.A.)
Heatsink Material：Copper
Fan Mounting Types to Heatsink：Horizontal
Max CPU Cooler Height：160 mm
Fan Dimensions：140 x 150 x 25mm
Heatsink Dimensions：6.49" x 5.90" x 5.30" w/ fan
6.30" x 5.90" x 5.30" w/o fan
Weight：2.53 lbs. w/ fan
2.16 lbs. w/o fan
Features：High-compatibility version of NH-D15
Compared to the award-winning NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.
Excellent RAM compatibility
Thanks to its recessed lower fins, the NH-D15S provides 65mm clearance for tall memory heatsinks, making it compatible with most high end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD, but also on LGA2011 where there are RAM slots on both sides of the socket.
Asymmetrical layout for better PCIe compatibility
As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboard.*
NF-A15 140mm fan
Complying with Noctuas AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
Dual-fan ready
Using the supplied extra fan clips, the NH-D15S can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height.
PWM support and Low-Noise Adaptor
The NF-A15 premium fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

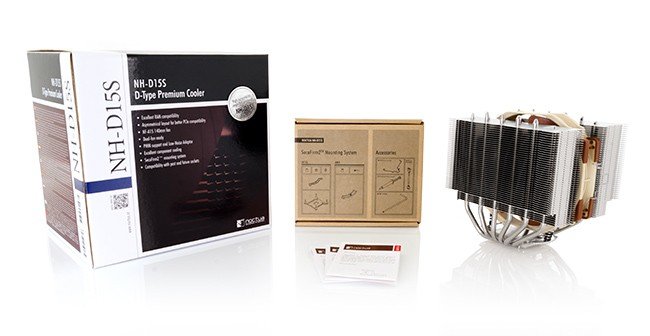

Package Includes：Scope of Delivery
1xNF-A15 PWM premium fan
1xLow-Noise-Adaptor ( L.N.A)
Fan Clips for 2nd Fan
NT-H1 High-grade Thermal compound.
SecuFirm2 Mounting Kit
Noctua Metal Case-Badge
