Syba CF to IDE Adapter - Direct Insertion
- Model: kmjbz6
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

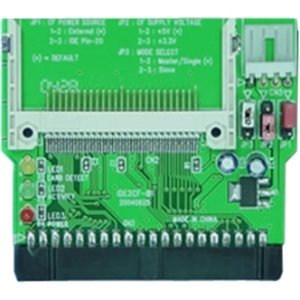

IDE to CF Adaptor, Direct Insert, Connects to 3.5" IDE Host Interface. The Syba SD-CF-IDE-DI is an adapter for connecting a compact flash memory card to a 3.5" IDE host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive. Supports Ultra DMA mode. This adapter lets you plug in a compact flash card into an IDE port without the need for an IDE cable.
- Brand: Syba
- Directly plugged into IDE connector on the motherboard without an IDE cable
- No external power needed when used on VIA's EPIA series motherboard
- On-board LED indicators for power-on and compact flash access
- Linux-based set-top boxes, routers, firewalls
- Diskless network clients
- Industrial computers
- Any other device requiring rugged solid-state storage
- Voltage selection for +3.3V / 5V compact flash
- Master / Slave mode selection
- Fully compatible with CF Type I, II & Micro Drive
- 40-2ay ( 2.54mm ) standard IDE connector
- Power input: +5V, floppy disk Drive power connector
- Board Size: 61 X 52 X 0.8mm
Manufacturer：SYBA
MPN：SD-CF-IDE-DI
Color：Other
Changer Type：IDE to Compact Flash
Specifications：Specification:
Board size: 2.40" x 2.05" x 0.03" (W, L, T)
On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V or +5V compact flash
Master or slave mode selection
Power input: +5V, floppy disk drive power connector
Fully compatible with Compact Flash Type I, Type II, and Micro-drive
40-way (2.54mm) standard IDE connector
This adapter does NOT support hot insertion of CF cards
System Requirement:
PC or Mac with one IDE connector
MS Windows, Mac OS, Linux operating system
Features：Directly plugged into IDE connector on the motherboard without an IDE cable
No external power needed when used on VIA's EPIA series motherboard
Weight：1
