Syba 3.5" IDE Interface to Compact Flash Adapter
- Model: 4y4dm3
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

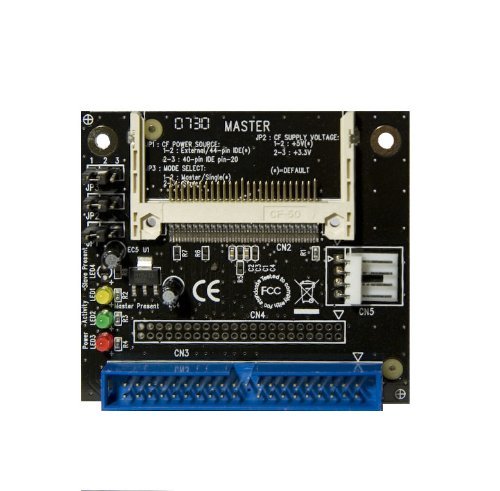

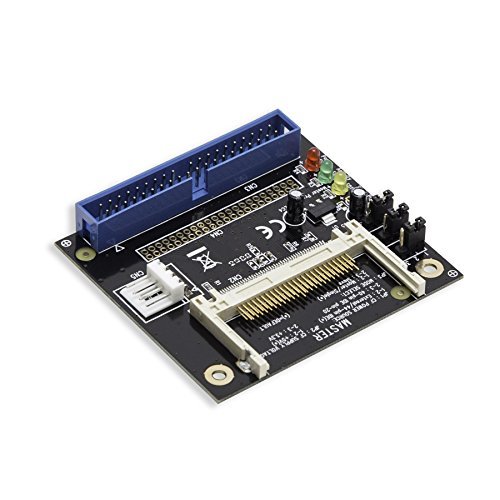

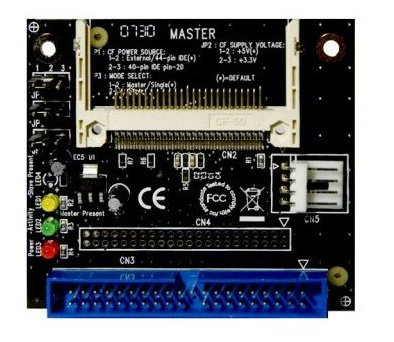

IDE to Compact Flash Adapter, Connects to 3.5" IDE Host Interface, UDMA. The SD-CF-IDE-A is an adapter for connecting a compact flash memory card to a 3.5" IDE host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive. Support Ultra DMA mode. SYBA SD-CF-IDE-A IDE to Compact Flash Adapter.
- Brand: Syba
- Linux-based set-top boxes, routers, firewalls
- Diskless network clients
- Industrial computers
- Any other device requiring rugged solid-state storage
- Supports Ultra DMA mode CF Card

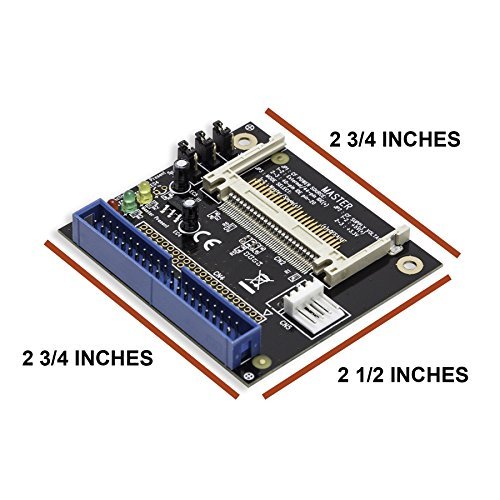

- Board size: 70mm x 63mm x 0.8mm (W, L, T)
- On-board LED indicators for power-on and compact flash access
- Voltage selection for +3.3V or +5V compact flash
- Master or slave mode selection
- Power input: +5V, floppy disk drive power connector
- Fully compatible with Compact Flash Type I, Type II, and Micro-drive
- 40-way (2.54mm) standard IDE connector
- 44-way (2mm) laptop IDE connector (optional)
- Mounting holes for rear bracket (optional)
- This adapter does NOT support hot insertion of CF card
- Connect 3.5" IDE & CF memory card
- System Requirement:
- PC or Mac with one IDE connector
- MS Windows, Mac OS, Linux operating system
Manufacturer：SYBA
MPN：SD-CF-IDE-A
Color：Other
Changer Type：IDE to Compact Flash
Features：Specification:
Board size: 2.76" x 2.48" x 0.03" (W, L, T)
On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V or +5V compact flash
Master or slave mode selection
Power input: +5V, floppy disk drive power connector
Fully compatible with Compact Flash Type I, Type II, and Micro-drive
40-way (2.54mm) standard IDE connector
44-way (2mm) laptop IDE connector (optional)
Mounting holes for rear bracket (optional)
This adapter does NOT support hot insertion of CF cards
System Requirement:
PC or Mac with one IDE connector
MS Windows, Mac OS, Linux operating system
Weight：0.1
