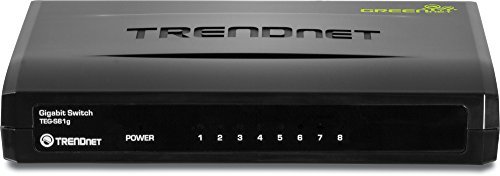

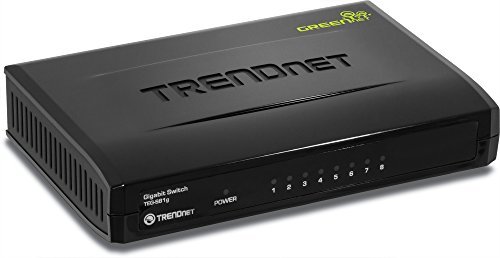

TRENDnet GREENnet Unmanaged 8-Port Gigabit Ethernet Switch TEG-S81g

Use this GREENnet Unmanaged 8-port Gigabit Ethernet Switch to create a stable hi-speed network while saving up to 70% of the energy used by standard ethernet switches. Able to automatically reduce power consumption when a connected device is powered off, in power saving mode, or the Ethernet is not in use, this TRENDnet 8-Port Unmanaged Ethernet Switch is a great way to save energy, and money in the long run. GREENnet 8 Port Gigabit Switch. The compact 8-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings.

• 8 Gigabit Ethernet Ports
• Up to 70% less power consumption than standard TRENDnet Switches
• Supports Full-Duplex Mode

Manufacturer

TRENDnet

Model

TEG-S81g

Format

External

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

IEEE 802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet

Network Management Type

Unmanaged

Jumbo Frames

9216 bytes

Ports

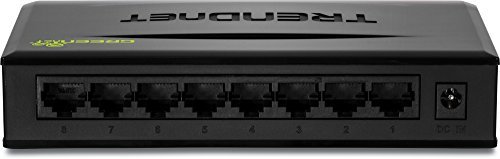

8 x RJ45

Speed

10/100/1000Mbps

MAC Address Table

8K

Buffer Memory

256KB

Switching Method

Store and Forward

Protocols

CSMA/CD

Topology

Star

LEDs

Power, Link / ACT, 100 Mbps / 1000 Mbps

Power

Input: 100-240 V, 50/60 Hz, 190 mA

Output: 5 V DC, 1 A external power adapter

Dimensions

171 x 100 x 31 mm (6.7 x 3.9 x 1.2 in.)

Weight

190 g (6.8 oz)

Temperature

0 Degrees C to 40 Degrees C (32 Degrees F to 104 Degrees F)

Humidity

90% Maximum, Non-condensing

• Unmanaged
• 9216 bytes Jumbo Frames
• 8 x 10/100/1000 Mbps RJ45
• Buffer Memory 256KB
• MAC Address Table 8K

Manufacturer：TRENDnet
MPN：TEG-S81g
Format：Desktop
Standards：IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control; IEEE 802.3az Energy Efficient Ethernet
Network Management Type：Unmanaged
Uplink Ports：None
Primary Ports：8 x RJ45
Primary Port Speed：10/100/1000Mbps
MAC Address Table：8K
Switching Method：Store and Forward
Jumbo Frames：9216 bytes
Buffer Memory：256KB
Protocols：CSMA/CD
Topology：Star
LEDs：Power, Link / ACT, 100 Mbps / 1000 Mbps
Power：Input: 100-240 V, 50/60 Hz, 190 mA
Output: 5V DC, 1A external power adapter
Features：Switch Fabric: 16 Gbps forwarding capacity

GREENnet technology reduces power consumption by up to 70% (Max power savings compared with standard TRENDnet switches)

Build a high performance energy efficient Gigabit network in minutes

Plug and Play installation

Case: Plastic
Dimensions：1.22" x 6.73" x 3.94"
Weight：0.42 lb.
Temperature：Operating: 0 degree ~ 40 degree C (32 degree ~ 104 degree F)
Storage: -10 degree ~ 70 degree C (14 degree ~ 158 degree F)
Humidity：90% Maximum, Non-condensing
Package Includes：TEG-S81g
Multi-Language Quick Installation Guide
Power adapter (5V DC, 1A)
Electrical Outlet Plug Type：Plug Type "A" (USA, Canada, Mexico, Japan)
