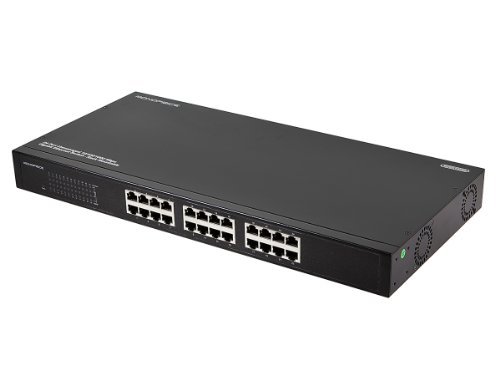

MonoPrice 8746 10/100/1000MBps Rack Mountable 24-port Ethernet Switch
- Model: 2avqen
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This 24-port Gigabit Ethernet Switch conforms to IEEE802.3, IEEE802.3u, and IEEE820.3ab standards allowing for the highest Ethernet data transfer speeds. Straight and Crossover cables are automatically detected and switches the connection automatically for the connected device. With easy PLug-n-Play connectivity, you'll be able to set up a network quickly on this 10/100/1000Mbps Rack Mountable 24-port Gigabit Switch. Monoprice 24-Port Unmanaged 10/100/1000 Mbps Gigabit Ethernet Switch - Rack Mountable (108746)
- Complies with IEEE 802.3u/ab Ethernet Standards
- 24 x Ethernet Ports
- Rack Mountable Ethernet Switch Box
- Supported Standards
- IEEE802.3 10BASE-T Ethernet
- IEEE802.3u 100BASE-TX Fast Ethernet
- IEEE802.3ab Gigabit Ethernet
- Protocol
- CSMA/CD
- Topological Structure
- Star
- Network Cable Required
- 10BASE-T: UTP Cat3 or better
- 100BASE-TX UTP/STP Cat5 or better
- 1000BASE-T: UTP/STP Cat5, Cat5e, or Cat6
- Number of Ports
- 24
- Transfer Mode
- Store and forward
- MAC Address Table
- 8K
- Packet Filtering/Forwarding Rate
- Ethernet: 14880 pps (10Mbps) per port
- Fast Ethernet: 148800 pps (100 Mbps) per port
- Gigabit Ethernet: 1488000 pps (1000 Mbps)
- MAC Address Learning
- Self-learning and auto-aging
- MDI/MDIX Selection
- Automatic
- Backplane Bandwidth
- 32Gbps
- Operating Temperature
- +32 to +104 Degrees F (0 to +40 Degrees C)
- Storage Temperature
- -40 to +158 Degrees F (-40 to +70 Degrees C)
- Operating Humidity
- 10-90%, no condensing
- Storage Humidity
- 5-90%, no condensing
- AC Input Power
- 100-240 VAC, 50/60Hz, 0.6A max
- Power Consumption
- 30 watts
- Dimensions (WxHxD)
- 17 11/32" x 1 3/4" x 8 1/4"
- Regulatory Compliance
- FCC, CE, RoHS
Manufacturer：Monoprice
MPN：108746
Weight：5.55
