Thermaltake PS-TR2-0500NPCBUS-B TR2 500W 80 Plus Bronze PSU
- Model: vzl6e5
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Thermaltake new TR2 Series is power supply units (PSU) that incorporate various high-quality components, 500W that will always accommodate many mainstream builds. Embedded intelligent cooling fan delivers silent cooling with intelligent temperature control. Single +12V rail design enable non-stop usage with stable and reliable performance.
- Brand: Thermaltake
- Model: PS-TR2-0500NPCBUS-B
- Series: TR2 Series
- Type: ATX12V / EPS12V
- Maximum Power: 500W
- Fans: 120mm Fan: 1500 R.P.M. +/- 10%
- PFC: Active
- Main Connector: 20+4Pin
- +12V Rails: Single
- PCI-Express Connector: 2 x 6+2-Pin
- SATA Power Connector: 5
- Haswell Support: Yes
- Modular: Hardlined
- Power Good Signal: 100-500ms
- Hold-up Time: 10msec (minimum) @ 80% of full load at 230Vac input.
- Efficiency: 85% Efficiency
- Energy-Efficient: 80 PLUS BRONZE Certified
- Over Voltage Protection: Yes
- Overload Protection: Yes
- Input Voltage: 100 - 240 V
- Input Frequency Range: 47 - 63 Hz
- Input Current: 8A max
- Output: +3.3V@18A, +5V@16A, +12V@38A, -12V@0.3A, +5VSB@2.5A
- MTBF: >100,000 Hours
- Dimensions: 3.50" x 6.00" x 5.50" (H x W x L)
- Connectors
- 1x 20+4pin ATX
- 1x 4+4pin EPS
- 2x 6+2 PCI-E
- 6x SATA
- 4x Peripheral
- 1x Floppy
- ATX12V / EPS12V
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@18A, +5V@16A, +12V@38A, -12V@0.3A, +5VSB@2.5A
Manufacturer：Thermaltake
MPN：PS-TR2-0500NPCBUS-B
Classification：TR2 Series
Type：ATX12V / EPS12V
Maximum Power：500W
Fans：120mm Fan: 1500 R.P.M. +/- 10%
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
Haswell Support：Yes
Modular：Hardlined
Power Good Signal：100-500ms
Hold-up Time：10msec (minimum) @ 80% of full load at 230Vac input.
Efficiency：85% Efficiency
Energy-Efficient：80 PLUS BRONZE Certified
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：8A max
Output：+3.3V@18A, +5V@16A, +12V@38A, -12V@0.3A, +5VSB@2.5A
MTBF：>100,000 Hours
Dimensions：3.50" x 6.00" x 5.50" (H x W x L)
Connectors：1 x 20+4pin ATX
1 x 4+4pin EPS
2 x 6+2 PCI-E
6 x SATA
4 x Peripheral
1 x Floppy
Features：Compliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards
80 PLUS BRONZE Certified 85% efficiency under typical load
Single +12V rail Design
Supports Intel C6 Status for improved efficiency
105 degree C / 221 degree F High quality Japanese capacitors

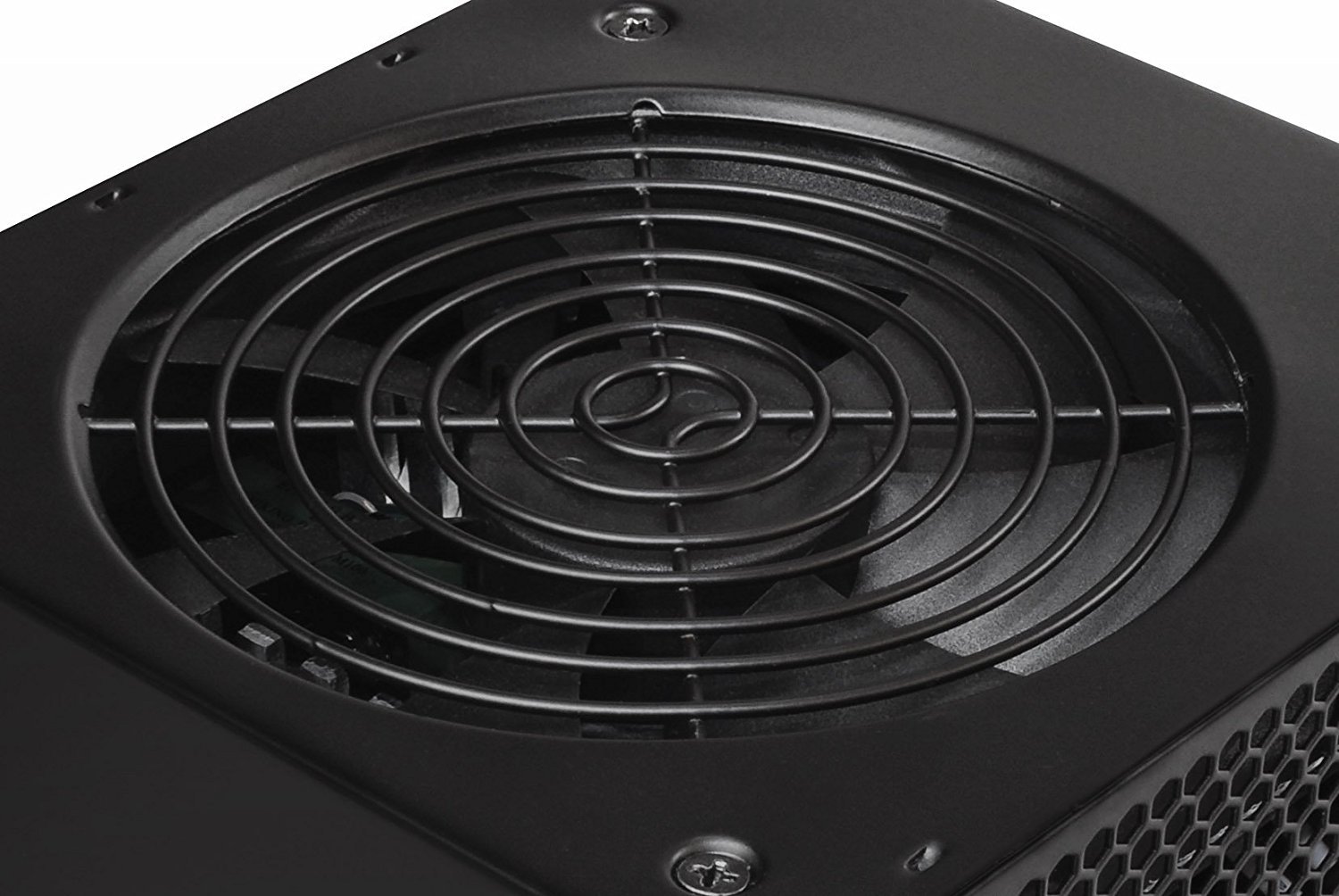

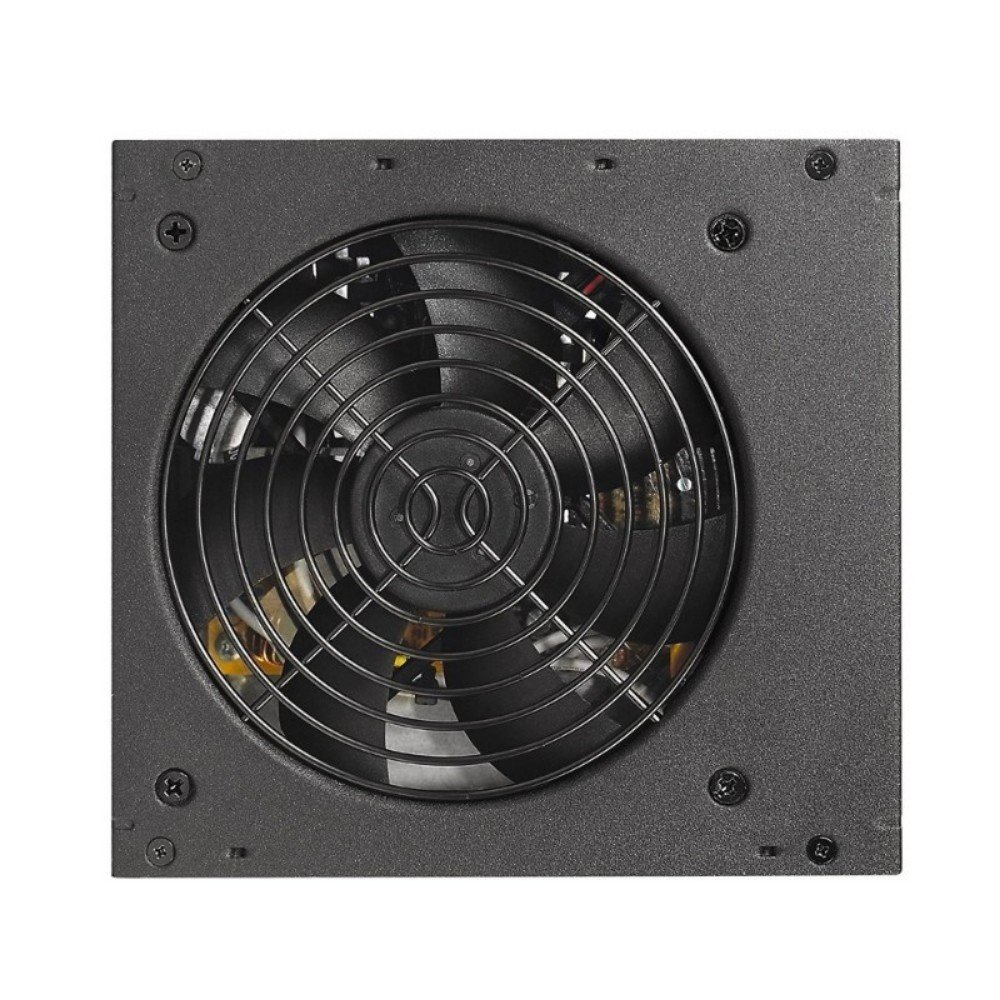

Ultra-quiet 120mm fan with intelligent temperature control
Hardlined cables for straight forward installation
