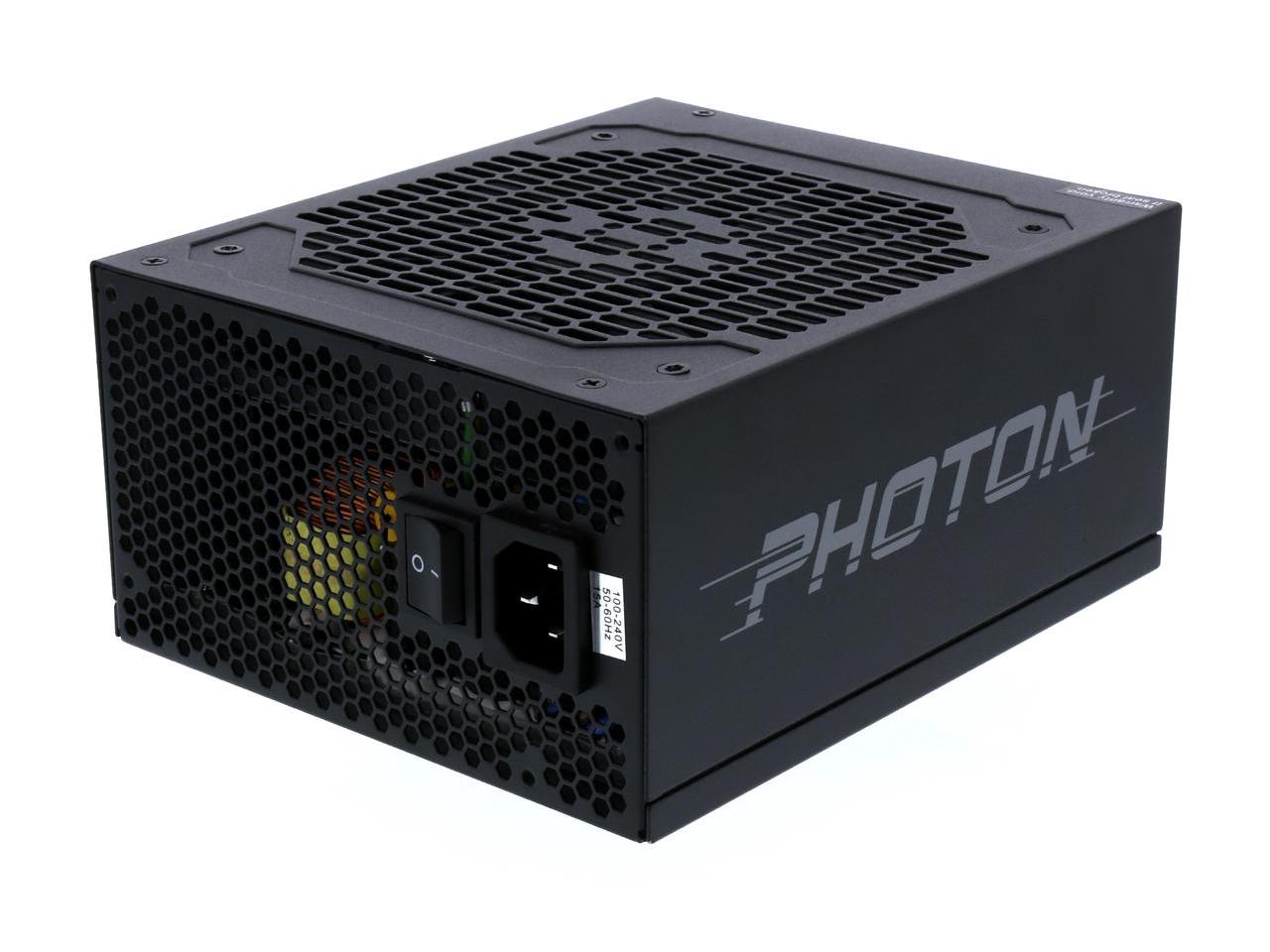

Rosewill Photon-1050, PHOTON Series 1050W Full Modular Power Supply
- Model: qmrkm2
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Always make sure you have enough juice for all your power-hungry components. This Rosewill Photon 1050W power supply delivers an incredible amount of power with amazing efficiency. The 80 PLUS Gold rating ensures efficient performance that saves you on the energy bill. The fully modular design means you'll only use the cables you need, making cable management a trivial task.
- Brand: Rosewill
- Model: PHOTON-1050
- Type: ATX12V v2.31 & EPS12V v2.92
- Maximum Power: Continuous 1050W@40 degree C
- Fans: 1 x 135mm 2-ball bearing Fan
- PFC: Active
- Main Connector: 20+4Pin
- +12V Rails: Single
- PCI-Express Connector: 8 x 6+2-Pin
- SLI: Yes
- CrossFire: Yes
- Modular: Yes
- Power Good Signal: 100-500ms
- Hold-up Time: > 16ms
- Efficiency: Up to 92%
- Energy-Efficient: 80 PLUS GOLD Certified
- Over Voltage Protection: +3.3V, +5V, +12V
- Input Voltage: 100 - 240 V
- Input Frequency Range: 47 - 63 Hz
- Input Current: 15A
- Output: +3.3V@25A,+5V@25A,+12V@87.5A,-12V@0.3A,+5VSB@4A
- MTBF: 100k hours at 25 degree C, max. load, nominal input
- Approvals: TUV, CE, FCC, ROHS
- Dimensions: 3.39" x 5.91" x 7.09" (H x W x D)
- Modular Cable:
- 1x 20+4-Pin Main Connector
- 2x 4+4-Pin ATX12V/EPS12V Connector
- 8x 6+2-Pin PCI-E Connector
- 15x 5-Pin SATA Connector
- 5x 4-Pin Peripheral Connector
- 1x 4-Pin Floppy Connector
- 1050 Watt Power Supply
- ATX 12V v2.31 / EPS12V v2.92
- 100 - 240VAC, 50 / 60 Hz
- Continuous 1050W @ 40 Degree Celsius
- 80 PLUS GOLD Certified PSU
- Full Modular Design
- SLI & CrossFire-Ready / Intel 4th Gen CPU Certified
- Silent 135 mm Fan with Auto fan Speed Control
- Strong Single +12V Rail - Ideal for Gaming Systems
Manufacturer：Rosewill
MPN：PHOTON-1050
Type：ATX12V v2.31 & EPS12V v2.92
Maximum Power：Continuous 1050W @ 40 degrees Celsius
Fans：1 x 135mm 2-ball bearing Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：8 x 6+2-Pin
SATA Power Connector：15
SLI：Yes
Power Good Signal：100-500ms
Hold-up Time：> 16ms
Efficiency：Up to 92%
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：+3.3V, +5V, +12V
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：15A
Output：+3.3V @ 25A,+5V @ 25A,+12V @ 87.5A,-12V @ 0.3A,+5VSB @ 4A
MTBF：100k hours at 25 degrees Celsius, max. load, nominal input
Approvals：TUV, cTUVus, CE, FCC certified
Dimensions：3.39" x 5.91" x 7.09" (H x W x D)
Connectors：Modular Cable:
1 x 20+4-Pin Main Connector
2 x 4+4-Pin ATX12V / EPS12V Connector
8 x 6+2-Pin PCI-E Connector
15 x 5-Pin SATA Connector
5 x 4-Pin Peripheral Connector
1 x 4-Pin Floppy Connector
Features：80 PLUS GOLD Certified
Continuous 1050W @ 40 degrees Celsius
Single strong 12V Rail - Ideal for Gaming Systems
SLI & CrossFire ready - 8 x 6+2pin Connector
1 x 135mm 2-ball bearing Fan with auto fan speed control
Active-PFC with auto AC-input voltage adjustment (100 - 240V)
Over Temperature Protection / Over Current Protection / Over Voltage Protection / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components
