EVGA 220-P2-1600-X1 SuperNOVA P2 1600W 80+ Platinum Certified Fully-Modular ATX Power Supply
- Model: svar1q
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

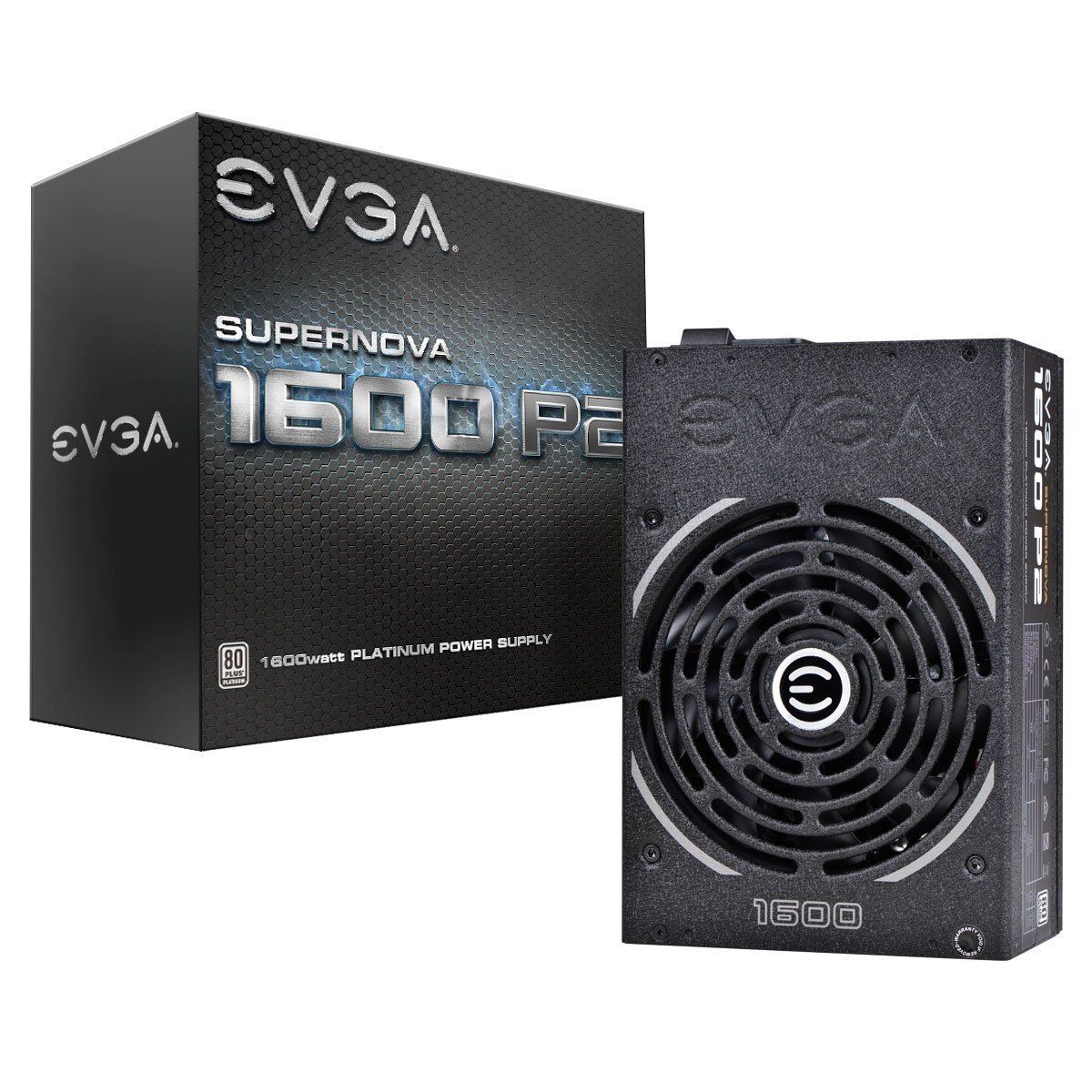

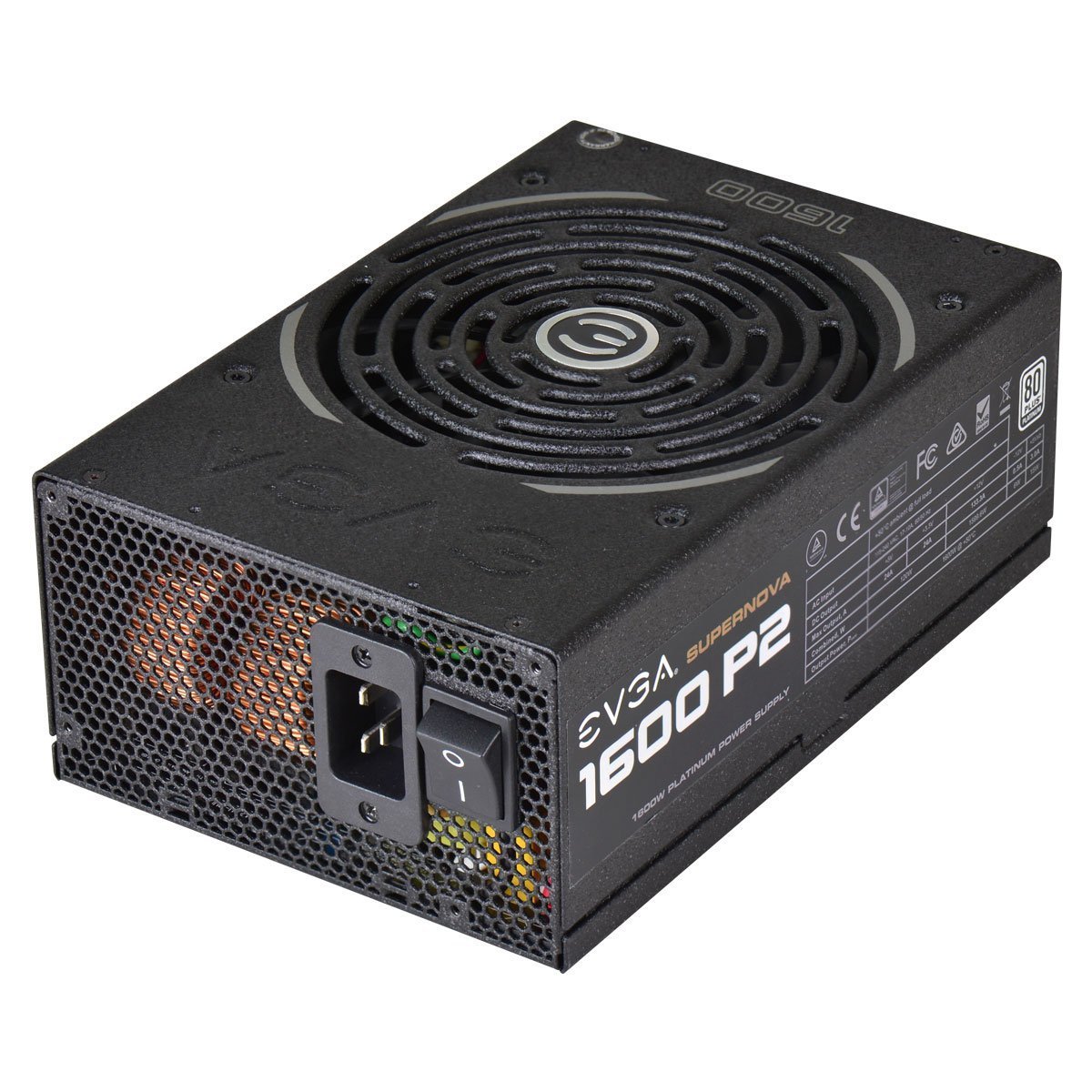

EVGA SuperNOVA 1600 P2, 80+ PLATINUM 1600W, Fully Modular, EVGA ECO Mode, 10 Year Warranty, Includes FREE Power On Self Tester Power Supply 220-P2-1600-X1. Introducing the EVGA Supernova 1600 P2 power supply. This power supply raises the bar with 1600W of continuous power delivery and 92% (115VAC) / 94% (220VAC~240VAC) efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclock ability and unparalleled control.
10 Year WarrantySUPERNOVA 1600 POWER SUPPLIESUNRIVALED PERFORMANCEIntroducing the EVGA SuperNOVA 1600 power supplies. These power supplies raise the bar with 1600W of continuous power delivery and up to 94% efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1600 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
- Brand: EVGA
- Model: 220-P2-1600-X1
- Type: ATX12V / EPS12V
- Maximum Power: 1600W
- Fans: 140mm Double Ball Bearing
- Main Connector: 24Pin
- +12V Rails: Single
- PCI-Express Connector: 9x 8pin (6+2), 5x 6pin
- SATA Power Connector: 16
- SLI: SLI Ready
- CrossFire: CrossFire Ready
- Modular: Full Modular
- Energy-Efficient: 80 PLUS PLATINUM Certified
- Over Voltage Protection: Yes
- Overload Protection: Yes
- Input Voltage: 115 - 240 V
- Input Frequency Range: 50/60 Hz
- Input Current: 17-10A

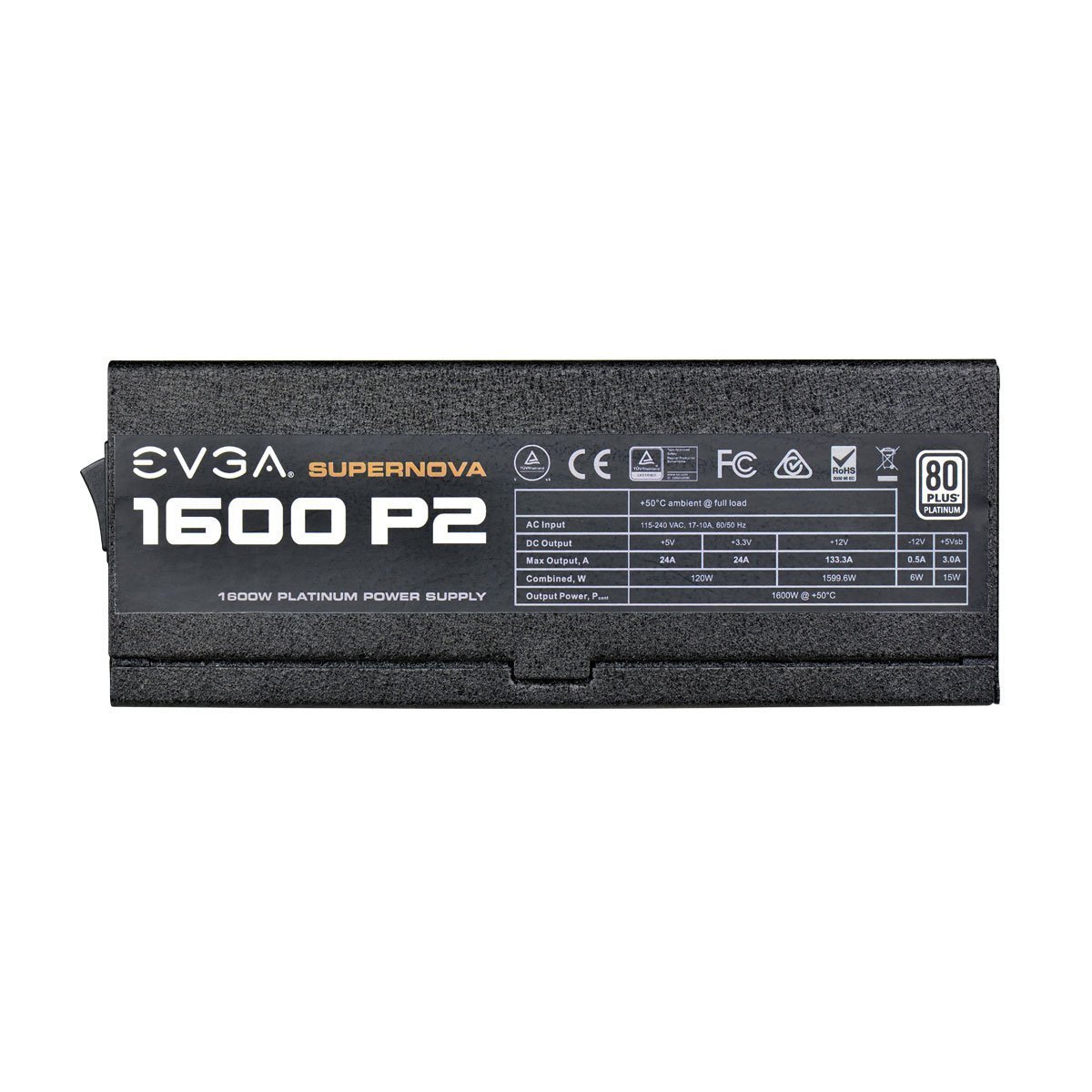

- Output: +3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
- MTBF: >100,000 Hours
- Connectors
- 24 Pin ATX: 1x
- EPS (CPU): 2x 8pin (4+4)
- PCIE: 9x 8pin (6+2), 5x 6pin
- SATA: 16x
- Four-Pin Peripheral: 6x
- FloppyP: 2x
- ATX12V / EPS12V
- Full Modular
- 80 PLUS PLATINUM Certified
- 115 - 240 V 50/60 Hz
- +3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
Manufacturer：EVGA
MPN：220-P2-1600-X1
Type：ATX12V / EPS12V
Maximum Power：1600W
Fans：140mm Double Ball Bearing
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：9x 8pin (6+2), 5x 6pin
SLI：SLI Ready
CrossFire：CrossFire Ready
Modular：Full Modular
Energy-Efficient：80 PLUS PLATINUM Certified
Over Voltage Protection：Yes
Input Voltage：115 - 240 V
Input Frequency Range：50/60 Hz
Input Current：17-10A
Output：+3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
MTBF：>100,000 Hours
Approvals：TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.35" x 5.90" x 8.86" (H x W x L)
Weight：12.00 lbs.

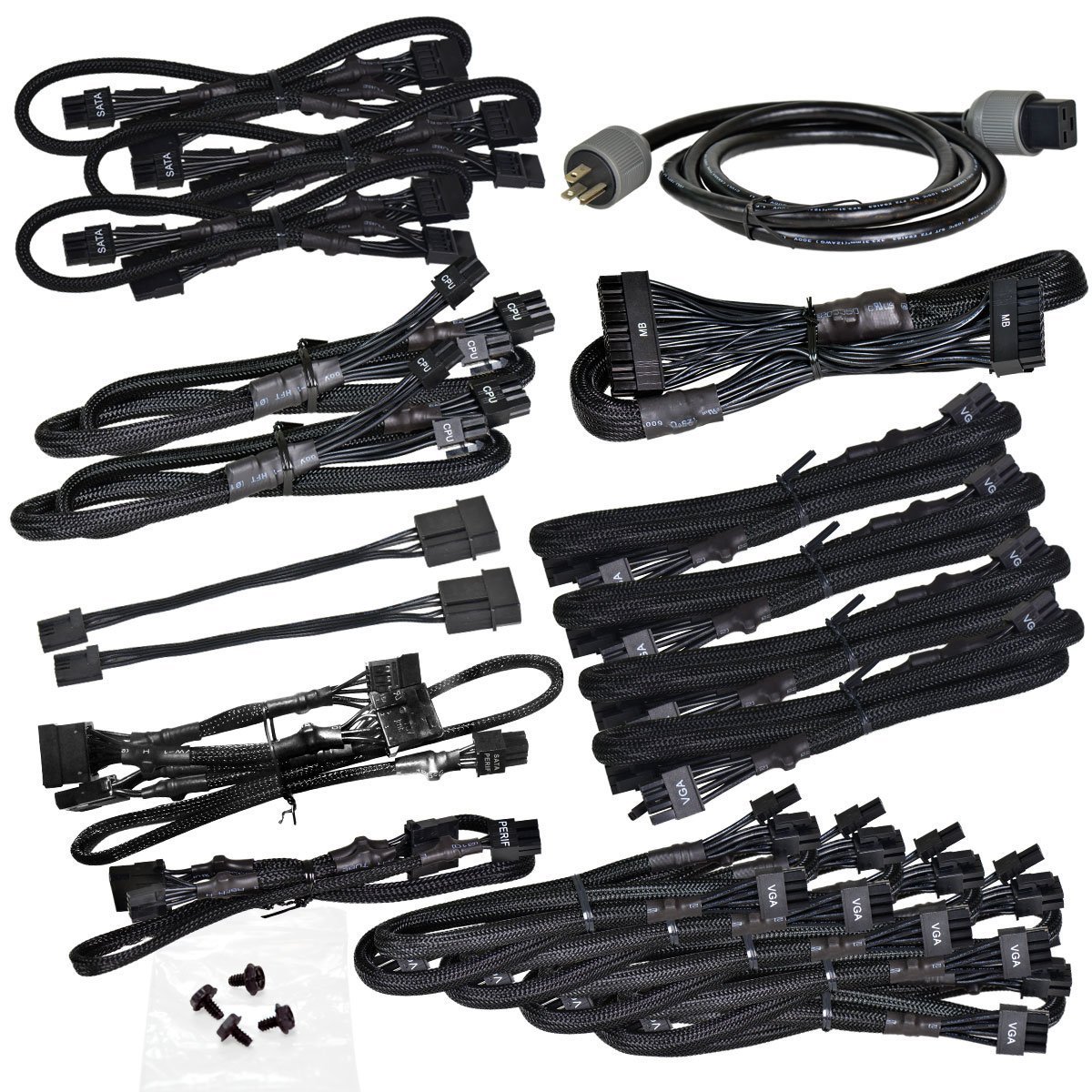

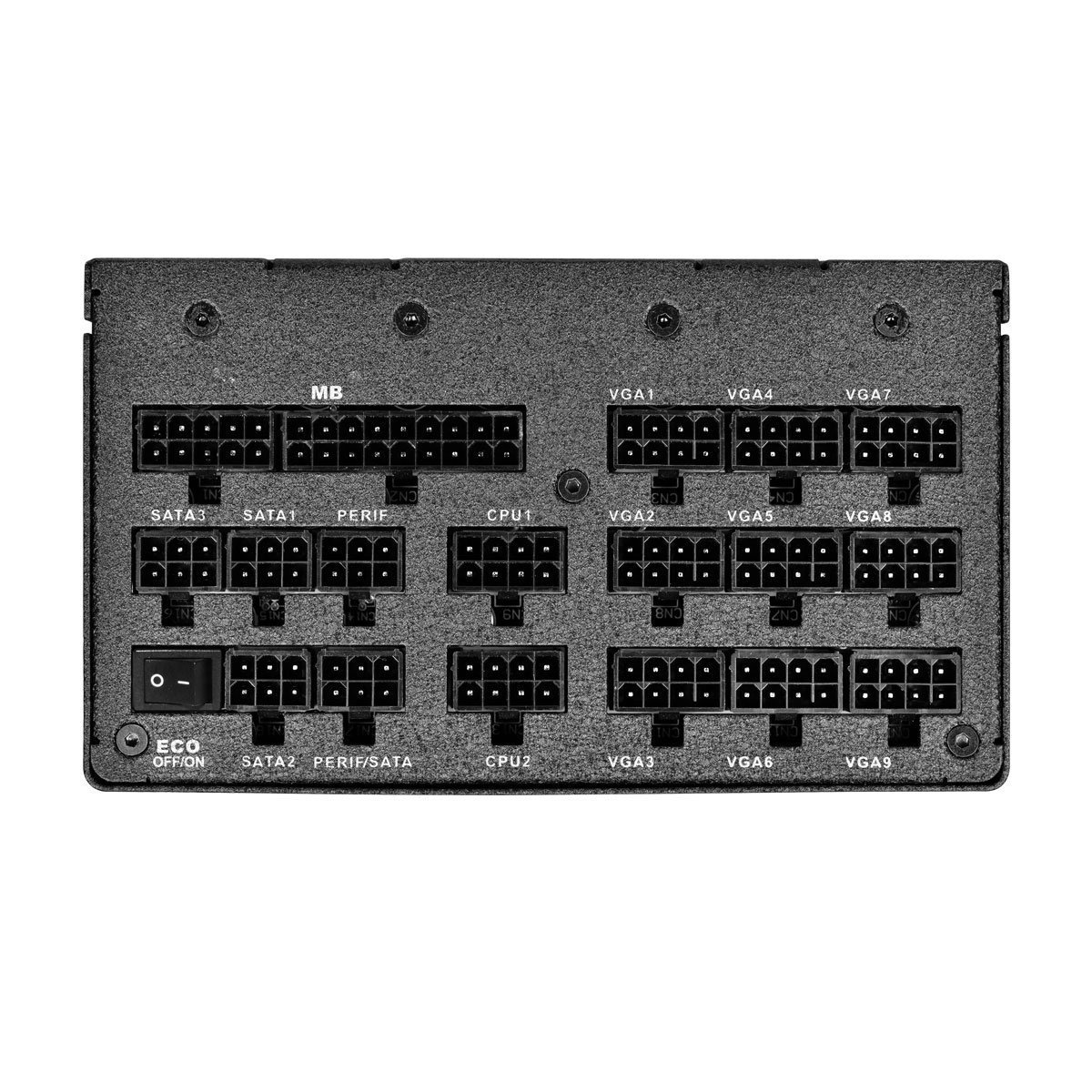

Connectors：24 Pin ATX: 1x
EPS (CPU): 2x 8pin (4+4)
PCIE: 9x 8pin (6+2), 5x 6pin
SATA: 16x
Four-Pin Peripheral: 6x
FloppyP: 2x
Features：Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
Highest quality Japanese brand capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Double Ball Bearing fan for exceptional reliability and quiet operation
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), and SCP (Short Circuit Protection)
80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
