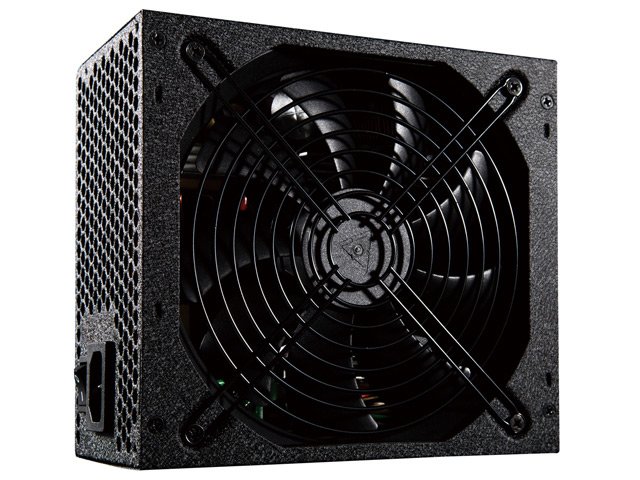

Rosewill CAPSTONE-750-M 750W 80 PLUS GOLD Modular ATX12V Power Supply

This Rosewill CAPSTONE-750-M 750W ATX Power Supply is an ideal choice for your next gaming rig. Installing this 80 PLUS GOLD Modular ATX12V power supply will give your system greater cable management, stable energy performance and plenty of connections including 6+2 pin PCI-E, SATA, Molex, 20+4-pin Motherboard, as well as 4+4 pin EPS12V.

• 80 PLUS GOLD Certified
• Continuous 750W @ 50°C
• Supports Intel Haswell CPU C6/C7 Low Power State
• Single strong 12V rail - ideal for Gaming systems
• SLI & CrossFire Ready with 4 x 6+2pin Connector

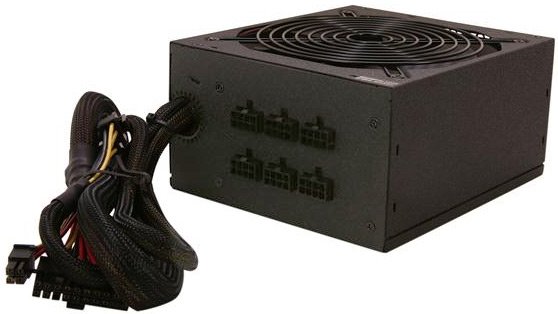

• Modular cable design

Model

CAPSTONE-750-M

Series

CAPSTONE

Type

ATX12V v2.31 & EPS12V v2.92

Maximum Power

Continuous 750W@50 Degrees C

Fans

1 x Silent 140mm

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-E Connectors

4 x 6+2-pin

Modular Cabling Support

Yes

SLI Support

Yes

Power Good Signal

100-500ms

Hold-up Time

> 16ms

Efficiency

> 87%, Up to 92%

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

10A

Output

+3.3V@24A,+5V@24A,+12V@62A,-12V@0.5A,+5VSB@3.0A

MTBF

100k hours at 25 Degrees C, max. load, nominal input

Approvals

cTUVus, FCC, CE, ROHS

Connectors

Fixed:

1x 20+4-Pin Main Connector

2x 4+4-Pin ATX12V/EPS12V Connector

Modular:

4x 6+2-Pin PCI-E Connector

5x 4-Pin Peripheral Connector

8x 5-Pin SATA Connector

1x 4-Pin Floppy Connector

Dimension

5.9 x 3.39 x 6.42 inch

150 x 86 x 163 mm

Weight

2.5 kg

5.52 lbs

• 750 Watt Power Supply
• ATX 12V v2.31 / EPS12V v2.92
• 80 PLUS GOLD Certified PSU
• Continuous 750W @ 50 Degree Celsius
• Modular Design
• 135mm Fan with Auto Fan Speed Control
• SLI & CrossFire Ready - 4 x 6+2 pin PCI-E Connector

Manufacturer：Rosewill
MPN：CAPSTONE 750M
Classification：CAPSTONE Series
Type：ATX12V v2.31 & EPS12V v2.92
Maximum Power：750W at 50 degrees Celsius
Fans：1 x 135mm Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：4 x 6+2-Pin
SATA Power Connector：8
SLI：SLI Ready
Haswell Support：Certified
CrossFire：CrossFire Ready
Modular：Semi-Modular
Power Good Signal：100-500ms
Hold-up Time：> 16ms
Efficiency：> 87%, Up to 90%
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：+3.3V, +5V, +12V
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：10A
Output：+3.3V @ 20A, +5V @ 20A, +12V @ 62A, -12V @ 0.3A, +5VSB @ 2.5A
MTBF：>100,000 Hours
Approvals：TUV, cTUVus, CE, FCC certified
Dimensions：5.91" x 3.35" x 6.42"
Weight：3.61 lbs.
Connectors：Fixed:
1 x 20+4-Pin Main Connector
1 x 8-Pin(4+4) ATX12V / EPS12V Connector
1 x 8-Pin ATX12V / EPS12V Connector

Modular:
4 x 6+2-Pin PCI-E Connector
5 x 4-Pin Peripheral Connector
8 x 5-Pin SATA Connector
1 x 4-Pin Floppy Connector
Features：80 PLUS CERTIFIED to Deliver 90% Efficiency

Continuous 750W at 50 degrees Celsius

Single strong 12V rail - ideal for Gaming system

SLI & CrossFire Ready - 4 x 6+2pin PCI-E Connector

Modular design

1 x Silent 135mm Fan with Auto Fan Speed Control

Active-PFC with auto AC-input voltage adjustment (100 - 240V)

Over Current / Voltage Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components

Safety & EMI Approval: cTUVus, FCC, CE, UL
