Rosewill CAPSTONE 750 Watt 80PLUS Gold ATX12V Power Supply
- Model: n4dit4
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Rosewill Capstone 750W PSU - This 750W 80 PLUS GOLD certified SLI power supply from Rosewill gives you the power output you need to run multiple high end video cards.The Rosewill CAPSTONE series is a premium 80 PLUS GOLD certified power supply that delivers unprecedented performance, uncompromised features with unbeatable efficiency vital to today's high-end system. CAPSTONE's black coated casing and rock touch evoke a sense of high quality. It features active PFC with auto AC-input voltage adjustment (100 - 240V), mesh sleeves on all cables for easier cable routing and better ventilation, and one 140mm fan with auto fan speed control for efficient, silent cooling. An array of safety & EMI approvals including cTUVus, FCC, CE andaRoHS ensures outstanding reliability, durability and eco-friendliness.
- 750W ATX Power Supply
- 80 PLUS GOLD Certified
- SLI / CrossFire Ready
- 140mm Silent Cooling Fan
- Type
- ATX12V v2.31 & EPS12V v2.92
- Maximum Power
- Continuous 750W@50 Degrees C
- Fans
- 1 x Silent 140mm
- PFC
- Active
- Main Connector
- 20+4Pin
- +12V Rails
- Single
- PCI-E Connectors
- 4 x 6+2-pin
- SLI Support
- Yes
- Power Good Signal
- 100-500ms
- Hold-up Time
- > 16ms
- Efficiency
- > 87%, Up to 92%
- Over Voltage Protection
- Yes
- Overload Protection
- Yes
- Input Voltage
- 100 - 240 V
- Input Frequency Range
- 47 - 63 Hz
- Input Current
- 10A
- Output
- +3.3V@24A,+5V@24A,+12V@62A,-12V@0.5A,+5VSB@3.0A
- MTBF
- 100k hours at 25 Degrees C, max. load, nominal input
- Connectors
- 1x 20+4-Pin Main Connector
- 1x 4+4-Pin ATX12V/EPS12V Connector
- 4x 6+2-Pin PCI-E Connector
- 5x 4-Pin Peripheral Connector
- 8x 5-Pin SATA Connector
- 1x 4-Pin Floppy Connector
- Dimension
- 5.9 x 3.39 x 6.42 inch
- 150 x 86 x 163 mm
- W x H x D
Rosewill CAPSTONE-750
- ATX12V v2.31 / EPS12V v2.92
- 100 ~ 240V
- 80 PLUS Gold Certified
- Efficiency up to 92%
- 140 mm Silent Fan
- 7-Year Warranty
Manufacturer：Rosewill
MPN：CAPSTONE-750
Classification：CAPSTONE Series
Type：ATX12V v2.31 & EPS12V v2.92
Maximum Power：Continuous 750W @ 50 degree C
Fans：1 x Silent 140mm Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：4 x 6+2-Pin
SATA Power Connector：8
SLI：SLI Ready
Haswell Support：Certified
CrossFire：CrossFire Ready
Modular：No
Power Good Signal：100-500ms
Hold-up Time：> 16ms
Efficiency：> 87%, Up to 92%
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：+3.3V, +5V, +12V
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：10A
Output：+3.3V@24A, +5V@24A, +12V@62A, -12V@0.5A, +5VSB@3A
MTBF：100k hours at 25 degree C, max. load, nominal input
Approvals：cTUVus, FCC, CE, ROHS
Dimensions：5.91" x 3.39" x 6.42" (W x H x D)
Connectors：1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V / EPS12V Connector
4 x 6+2-Pin PCI-E Connector
5 x 4-Pin Peripheral Connector
8 x 5-Pin SATA Connector
1 x 4-Pin Floppy Connector
Features：80 PLUS GOLD Certified
Intel Haswell CPU Ready
Continuous 750W @ 50 degree C
Single strong 12V rail - idea for Gaming system
SLI & CrossFire Ready - 4 x 6+2pin Connector
1 x Silent 140mm Fan with Auto Fan Speed Control for better silence
Active-PFC with auto AC-input voltage adjustment (100-240V)

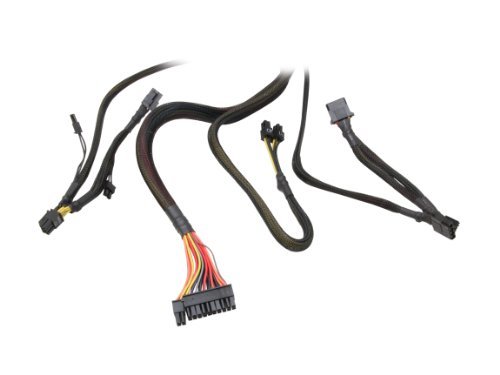

Mesh sleeving on all cables for easier cable routing and better ventilation
Over Temperature / Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components
Safety & EMI Approval: cTUVus, FCC, CE, ROHS
