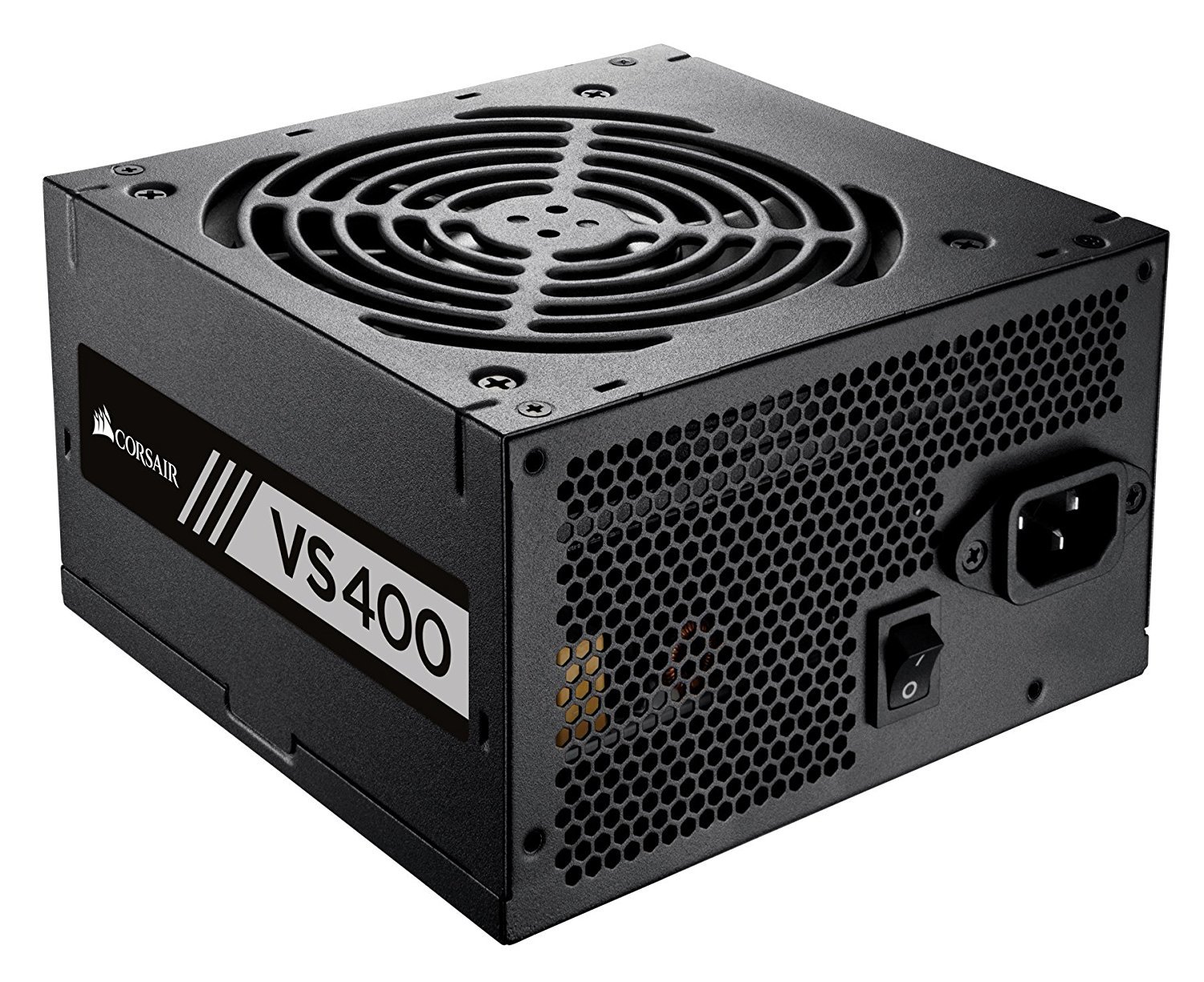

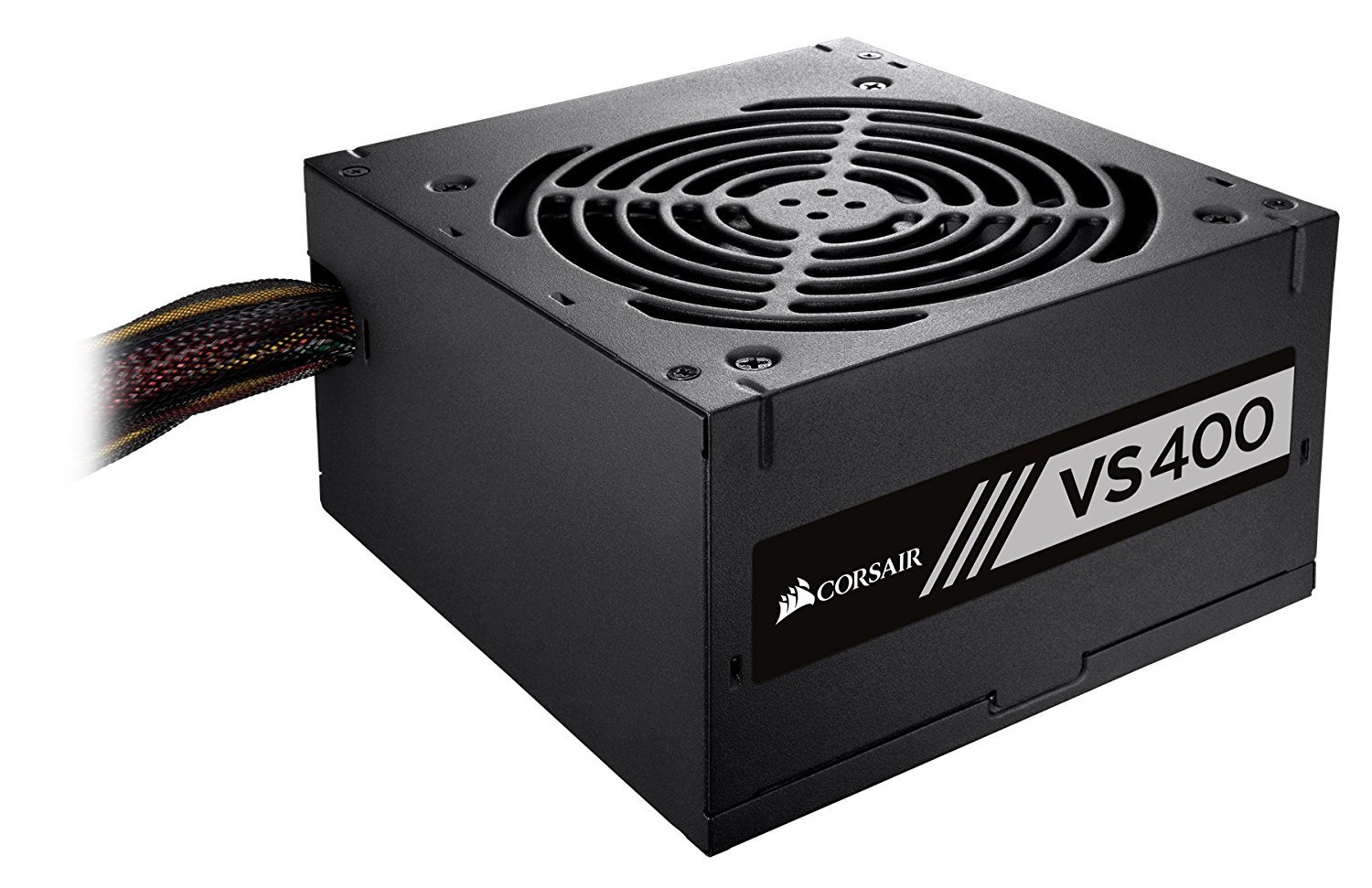

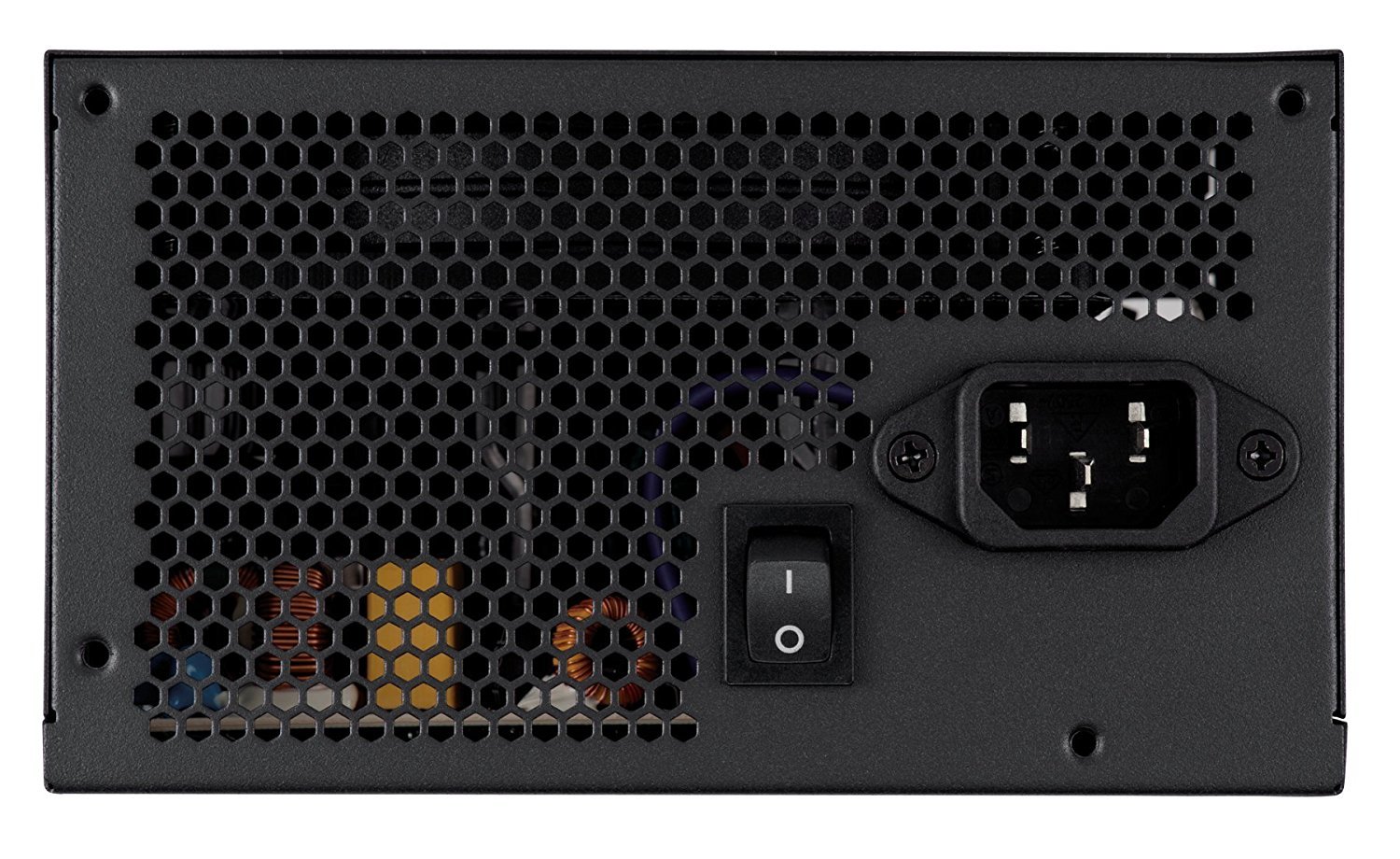

CORSAIR VS Series VS400 (CP-9020117-NA) 400W ATX12V / EPS12V 80 PLUS Certified Active PFC Power Supply

The Corsair VS400 is a great choice if you're building a home or office system with lower power demands, but you still demand the compatibility and reliability that Corsair is known for. The VS400 delivers a guaranteed 400 Watts of continuous power. With 0.99 Active Power Factor Correction, you get the peace of mind from knowing that your components are protected from uneven power delivery. And, a dedicated single +12V rail saves you from the hassle of balancing your components across multiple power cables. The 120mm fan is thermally controlled, so it only spins at maximum speed when ita?s pushed hard a?? and even at full load, ita?s pretty quiet.

• Brand: CORSAIR
• Model: VS400 (CP-9020117-NA)
• Series: VS Series
• Type: ATX12V v2.31 and EPS 2.92
• Maximum Power: 400W
• Fans: 1 x 120mm Thermally Controlled Sleeve Bearing Fan
• PFC: Active
• Main Connector: 20+4Pin
• +12V Rails: Single
• PCI-Express Connector: 1 x 6+2-Pin
• SATA Power Connector: 5
• Energy-Efficient: 80 PLUS White Certified
• Over Voltage Protection: Yes
• Input Voltage: 100 - 240 V
• Input Frequency Range: 47 - 63 Hz
• Input Current: 6 - 3A
• Output: +5V@17A, +3.3V@18A, +12V@32A, -12V@0.3A, +5VSB@2A
• MTBF: 100,000 hours
• Approvals: FCC, CE, TUV, TUV-S, WEEE, RoHS (Due to limited certifications, this product may not be sold in certain regions).
• Dimensions: 3.39" x 5.91" x 5.51"
• Weight: 3.88 lbs.

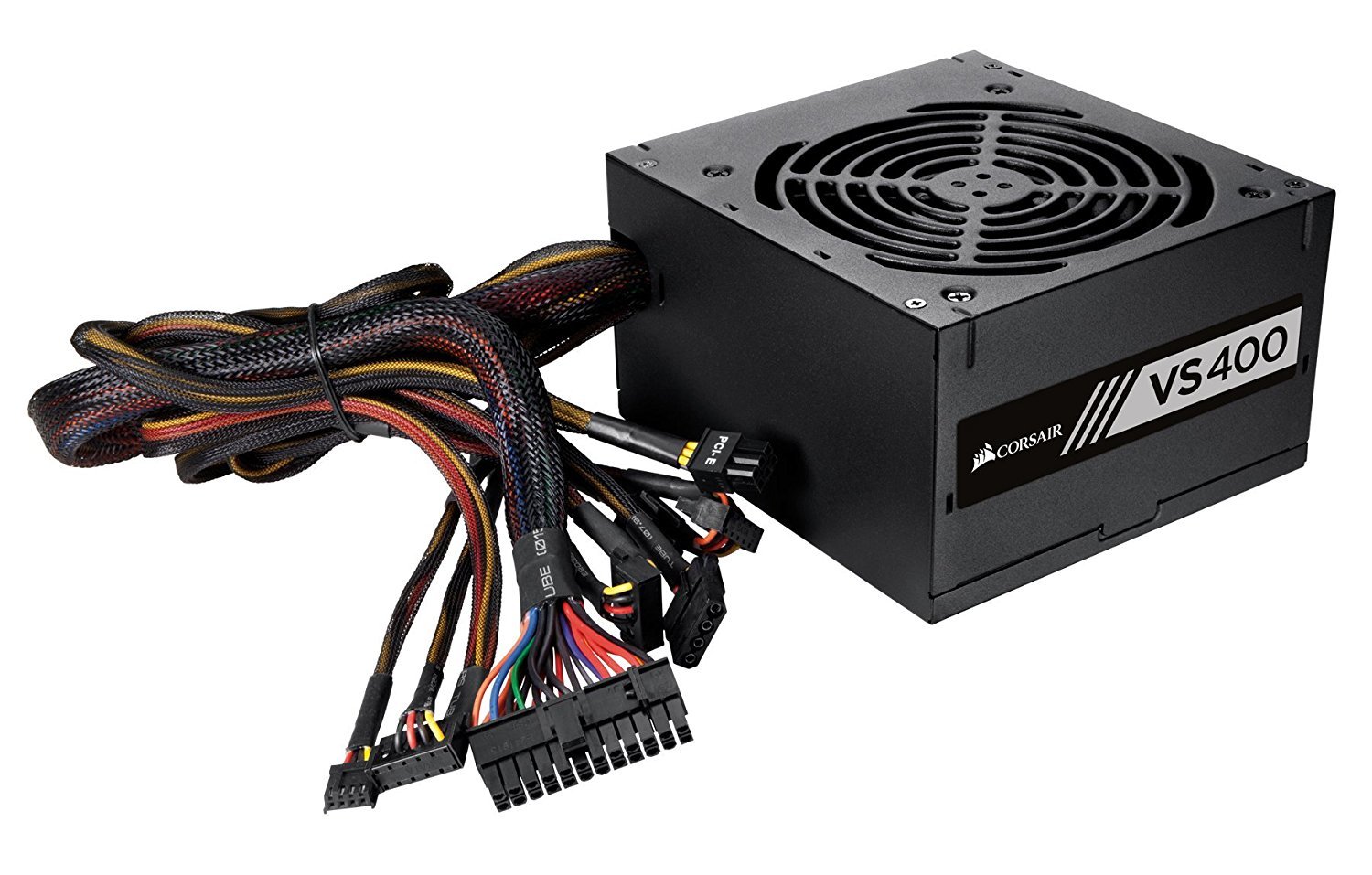

• Connectors
• 1 x ATX Connector
• 1 x EPS Connector
• 4 x Four Pin Peripheral Connector
• 1 x PCIe Connector
• 5 x SATA Connector

• ATX12V v2.31 and EPS 2.92
• 80 PLUS White Certified
• 100 - 240 V 47 - 63 Hz
• +5V @ 17A, +3.3V @ 18A, +12V @ 32A, -12V @ 0.3A, +5VSB @ 2A

Manufacturer：CORSAIR
MPN：VS400 (CP-9020117-NA)
Classification：VS Series
Type：ATX12V v2.31 and EPS 2.92
Maximum Power：400W
Fans：1 x 120mm Thermally Controlled Sleeve Bearing Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：1 x 6+2-Pin
SATA Power Connector：5
Energy-Efficient：80 PLUS White Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：6 - 3A
Output：+5V @ 17A, +3.3V @ 18A, +12V @ 32A, -12V @ 0.3A, +5VSB @ 2A
MTBF：100,000 hours
Approvals：FCC, CE, TUV, TUV-S, WEEE, RoHS (Due to limited certifications, this product may not be sold in certain regions).
Dimensions：3.39" x 5.91" x 5.51"
Weight：3.88 lbs.
Connectors：1 x ATX Connector
1 x EPS Connector
2 x Four Pin Peripheral Connector
1 x PCIe Connector
5 x SATA Connector
Features：Active PFC with full range AC input (100 - 240 VAC).

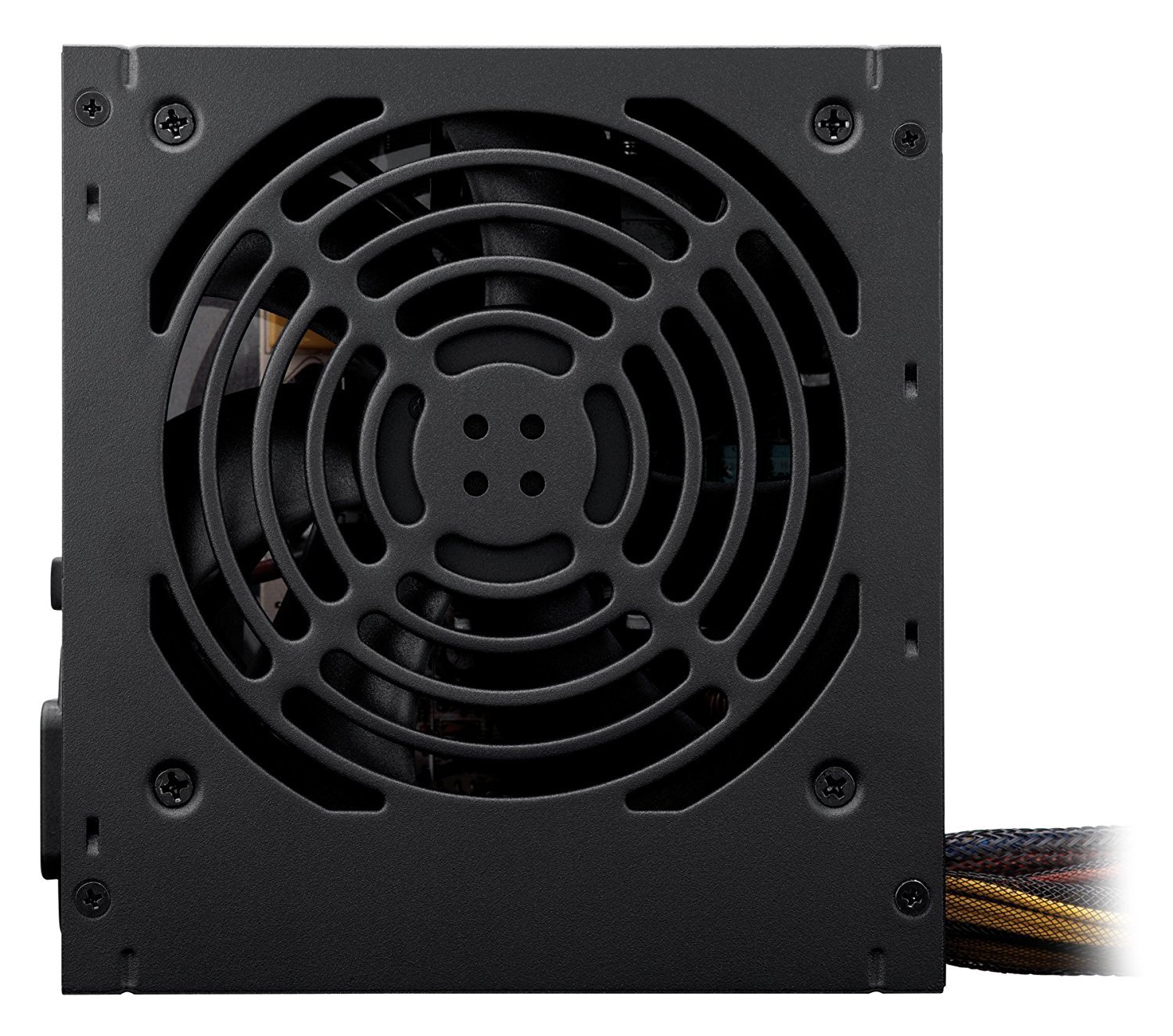

120mm thermally controlled sleeve bearing fan.

Engineered to meet maximum power output at a 40 degree C temperature rating.

Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
