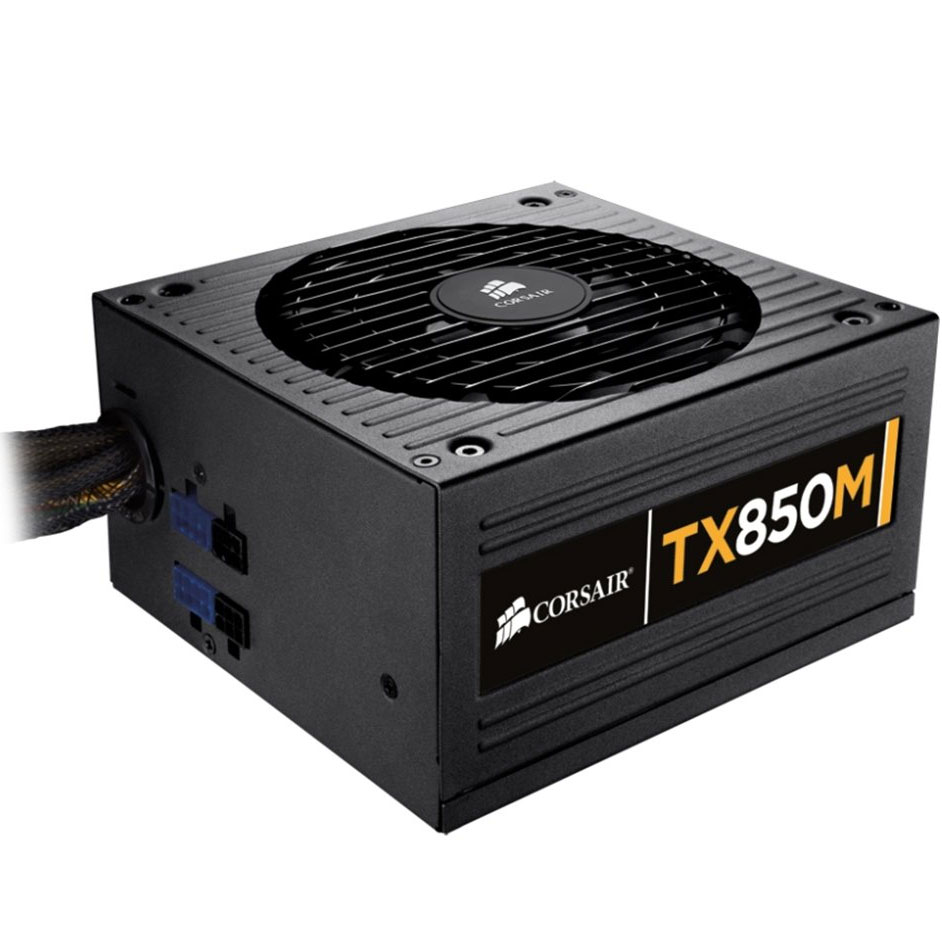

Corsair TX850M Enthusiast 80+ Bronze Modular 850 Watt Power Supply
- Model: bj0g8z
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
80+ Bronze Certification Designed for reliable operation and lower power usage while delvering high-performance power output, this Corsair 80+ Bronze 850 Watt Power Supply will let you make a great gaming PC. Semi-Modular Power Supply Unit Using the modular cabling, you'll have an easier time managing space and better airflow inside your computer case. This Corsair Enthusiast Series 850W Power Supply gives you the choice of using the cables you need instead having loose and unused cables taking up space.
- Modular
- Yes
- Power
- 850 Watts
- 80 Plus
- Bronze
Corsair 80+ Bronze 850 Watt PSU
- Dimension
- 150mm(W) x 86mm(H) x 160mm(L)
- Modular
- Yes
- Power
- 850 Watts
- 80 Plus
- Bronze
- ATX Connector
- 1
- EPS Connector
- 1
- PCI-E Connector
- 4
- 4 Pin Peripheral Connector
- 4
- SATA Connector
- 8
- Floppy Connector
- 2
- MTBF
- 100,000 hours
- ATX12V v2.31 / EPS12V v2.92
- Semi Modular
- 80 PLUS BRONZE Certified
- 90 - 264 V
- +3.3V@30A, +5V@30A, +12V@70A, -12V@0.8A, +5VSB@3A
Manufacturer：CORSAIR
MPN：TX850M
Classification：Enthusiast Series
Type：ATX12V v2.31 / EPS12V v2.92
Maximum Power：850W
Fans：1 x double ball-bearing
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：4 x 6+2-Pin
Haswell Support：Certified
Modular：Semi Modular
Efficiency：up to 85%
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：Yes
Input Voltage：90 - 264 V
Output：+3.3V@30A, +5V@30A, +12V@70A, -12V@0.8A, +5VSB@3A
MTBF：>100,000 Hours
Approvals：UL, CUL, CE, CB, FCC Class B, TUV, CCC, RCM
Dimensions：5.9"(W) x 3.4"(H) x 6.3"(L)
Weight：6.28 lbs
Connectors：1 x Main connector (24Pin)
2 x 4+4-Pin 12V CPU
6 x Peripheral
8 x SATA
2 x Floppy
4 x PCI-E
Features：The latest ATX12V v2.31 and EPS 2.92 standards and it is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
An ultra-quiet double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
80PLUS Bronze certified, delivering up to 85% energy efficiency at real world load conditions.
Universal AC input from 90~264V. No more hassle of flipping that tiny red switch to select the voltage input!
A dedicated single +12V rail offers maximum compatibility with the latest components.
Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
