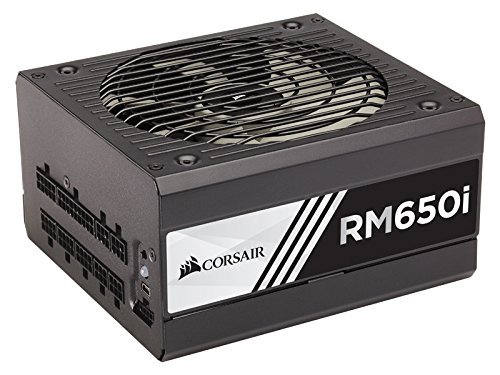

Corsair Cp-9020081-Na Enthusiast Gold Series Rm650I

Corsair RMi series power supplies are 80 PLUS Gold certified and give you extremely tight voltage regulation, virtually silent operation, and a fully modular cable set. With all Japanese 105C capacitors, theyare a great choice for high performance PCs where reliability is essential. Corsair RMi series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105 DegreeC capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. Corsair Link Digital makes it easy monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results. Customer Service / Tech support: 1-888-222-4346 opt. 1

• Weight 1.67kg
• MTBF 100,000 hours
• 80 PLUS Certification Level Gold
• Power 650 Watts
• Zero RPM Fan Mode Yes
• Fan Bearing Technology Fluid Dynamic Bearing
• Fan size 135mm
• Corsair Link Support Yes
• Continuous Output Rated Temperature (°C) 50°C
• Dimensions 150mm x 86mm x 160mm
• Modular Fully
• Cable Type Sleeved and Flat Black Cables
• ATX Connector 1
• EPS Connector 1
• Floppy Connector 2
• 4-Pin Peripheral Connector 7
• PCIe Connector 4
• SATA Connector 8
• Plug Type NA

• ATX12V / EPS12V
• 80 PLUS Gold certified
• Digital monitoring capability
• Full Modular
• 105 degree C all Japanese capacitors for unwavering power and reliability
• Multi-rail +12V is configurable to single rail

Manufacturer：CORSAIR
MPN：RM650i
Classification：RMi Series
Type：ATX12V / EPS12V
Maximum Power：650W

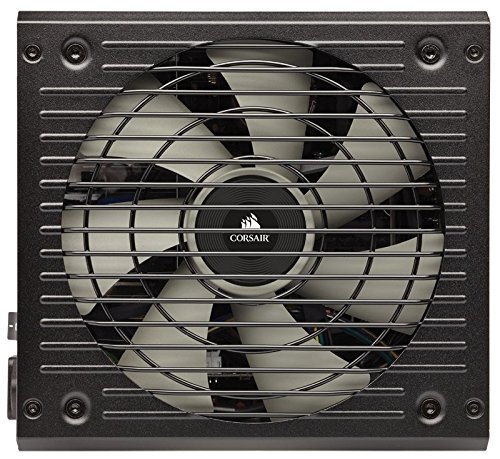

Fans：1 x 135mm thermally controlled fluid dynamic bearing fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single or Multi
PCI-Express Connector：4 x 6+2-Pin
SATA Power Connector：8
SLI：SLI Ready
Haswell Support：Yes
CrossFire：CrossFire Ready
Modular：Full Modular
Efficiency：Over 92%
Energy-Efficient：80 PLUS GOLD Certified
Input Voltage：100 - 240 V
Input Frequency Range：47 - 63 Hz
Input Current：10A - 5A
Output：Single +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V@54A, -12V@0.8A, +5VSB@3A

Multiple +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, -12V@0.8A, +5VSB@3A
MTBF：100,000 hours
Approvals：FCC, ICES, CE, C TUV US, RCM, TUV, CB, CCC, BSMI, GOST, ROHS, WEEE, ROHS, KC, TUV-S
Dimensions：3.39" x 5.91" x 6.30"
Weight：3.68 lbs.

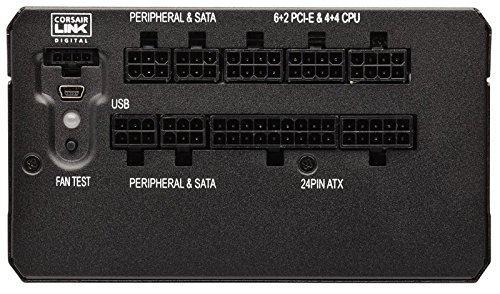

Connectors：1 x ATX Connector
1 x EPS Connector
2 x Floppy Connector
7 x 4-Pin Peripheral Connector
4 x PCI-E Connector
8 x SATA Connector
Features：80PLUS Gold certified, delivering over 92% energy efficiency at real world load conditions.

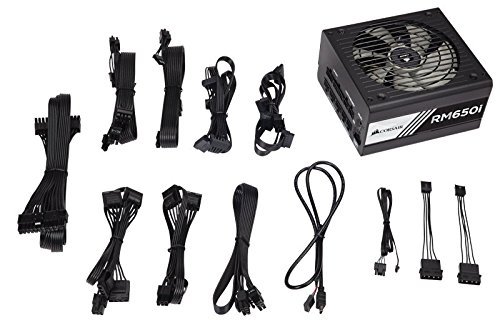

The completely modular cable system allows you to use only the cables you need.

Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis.

High-quality capacitors provide uncompromised performance and reliability.

Active Power Factor Correction (PFC) with PF value of 0.99.

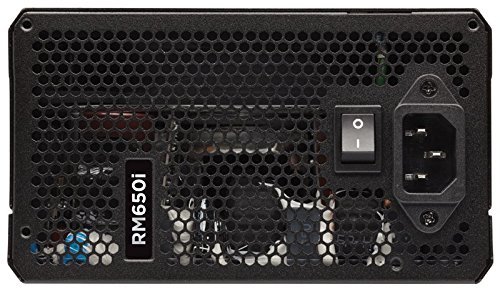

Universal AC input from 100 - 240v.

Over-voltage, over-current protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
